Technical Specifications for IS220PTCCH1A
|
Manufacturer
|
General Electric
|
|
Condition
|
100% New Original
|
|
Brand
|
General Electric
|
Series
|
Mark VI
|
|
Part Number
|
IS220PTCCH1A
|
Input Range
|
105 mA
|
|
Product Name
|
Thermocouple Input
|
Voltage Range
|
250 Volts
|
|
Manufacture Year
|
2022
|
Power
|
5.9 Watts
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

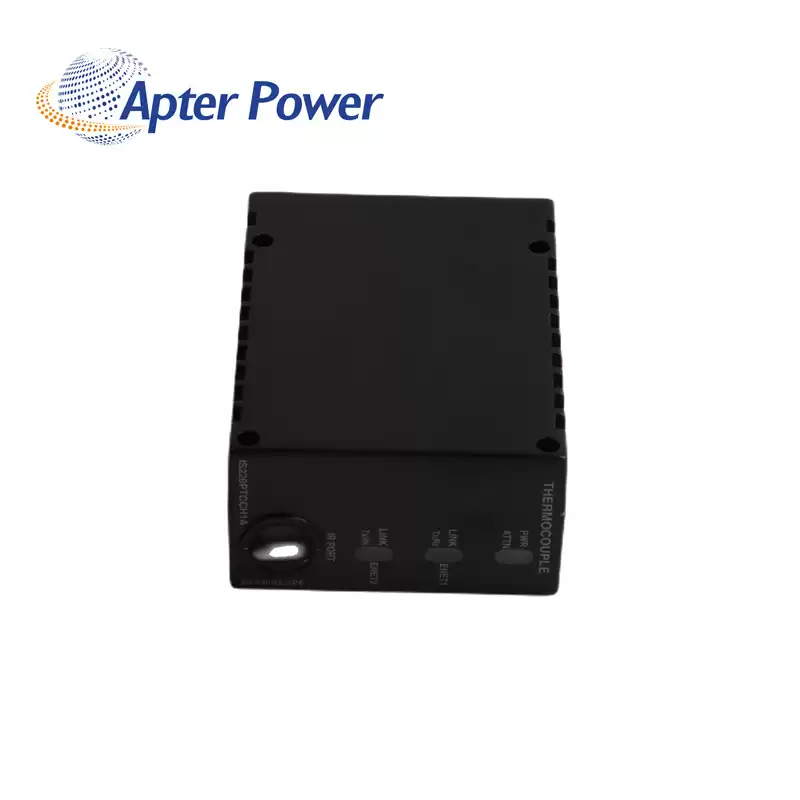

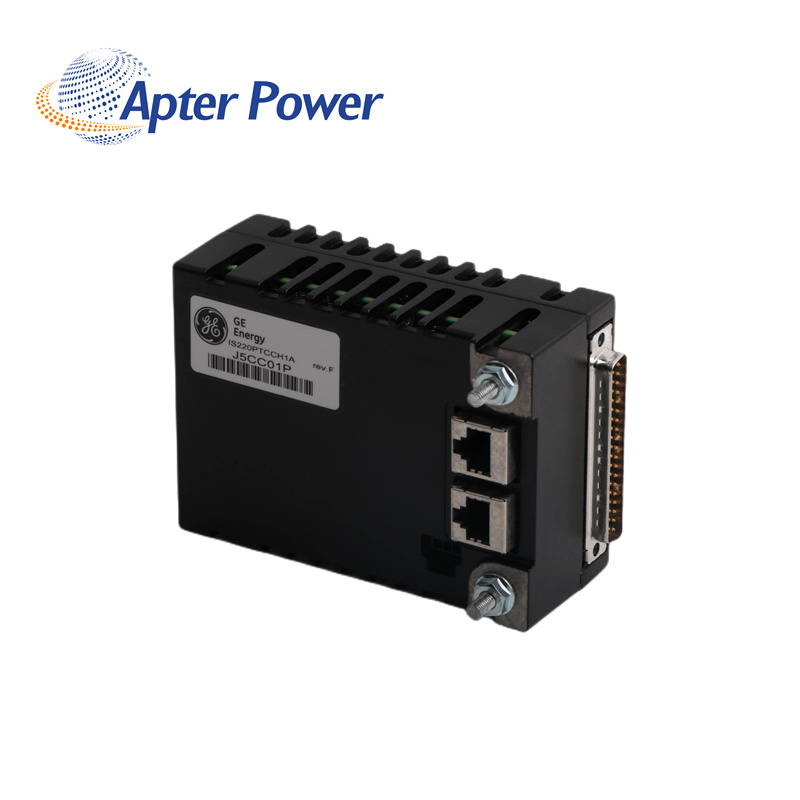

About IS220PTCCH1A
|
The IS220PTCCH1A can be used in simplex, duplex, and triple modular redundant applications. This board can support E, J, K, S, and T standard thermocouples as well as mV inputs with a span of -8 to 45 mV. E, J, K, S, and T thermocouples can be either grounded or ungrounded and can be located up to 984 feet from the turbine I/O panel.
The IS220PTCCH1A offers a maximum software error/conformity error of .25 degrees Fahrenheit. Common mode voltage is +/- 5 volts with AC common-mode rejection of 100dB @50/60Hz. Common mode rejection includes filtering for both hardware and software.
|
