Manufacturer/Brand：General Electric
|
Country Of Origin: USA
|
|

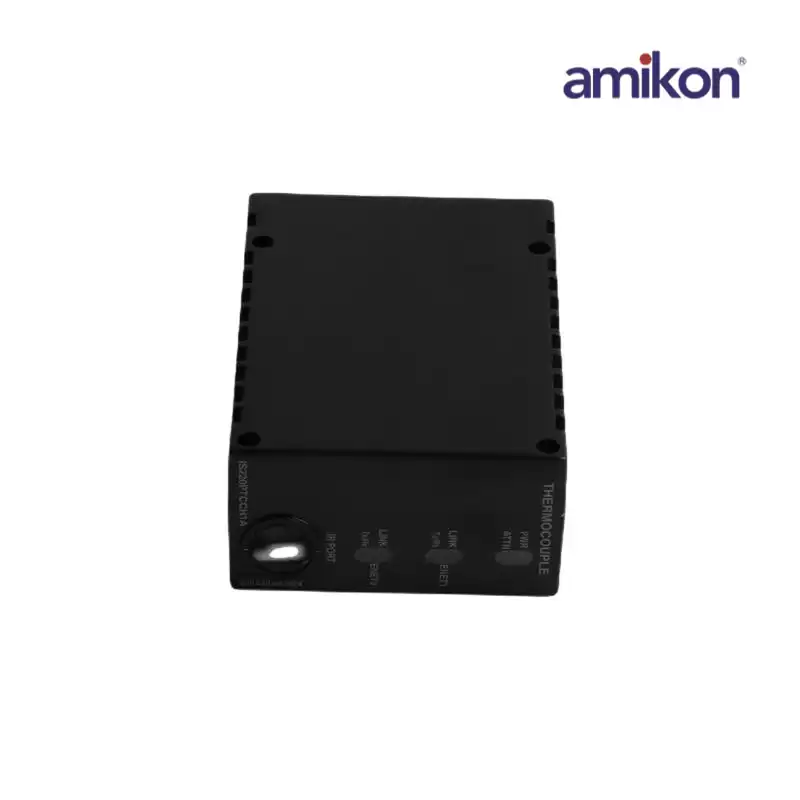

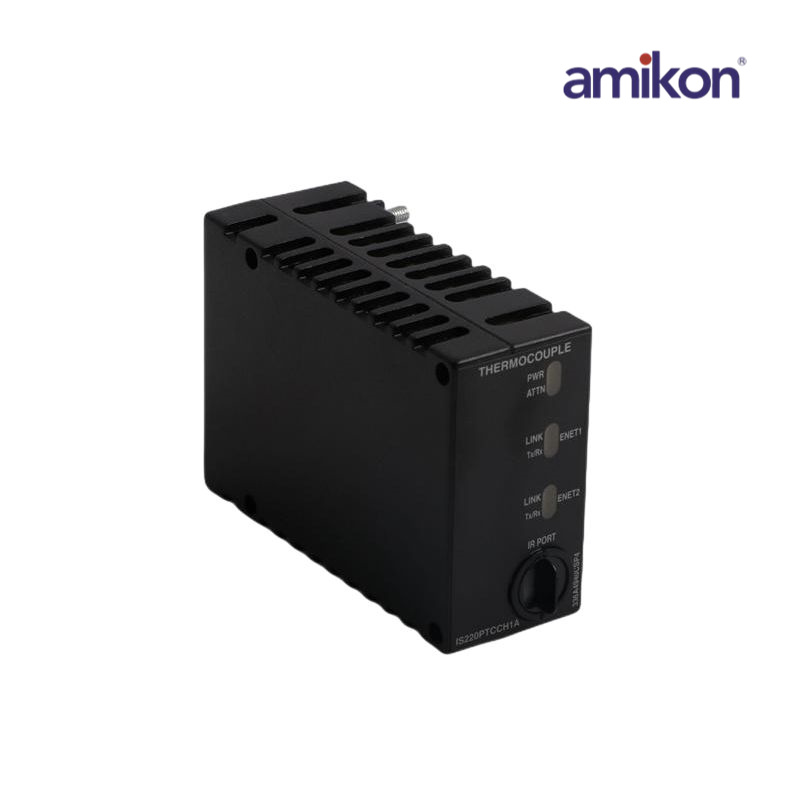

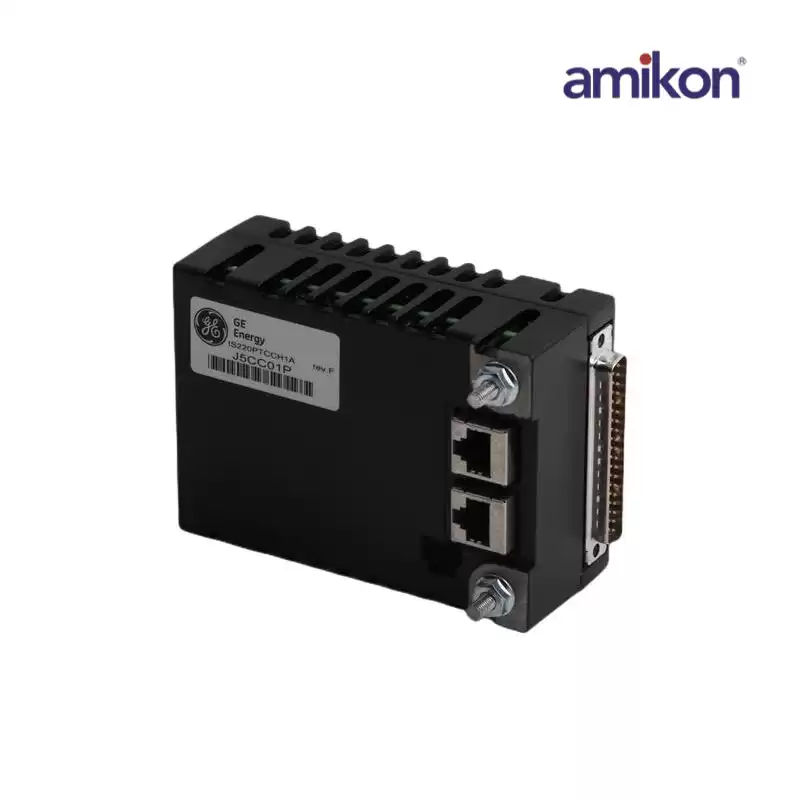

Part Number：IS220PTCCH1A
|
Shipping Term：TNT DHL FEDEX EMS UPS
|
|
Dimensions ：20cmx5.5cmx12cm
|
Weight:：0.39kg
|
The IS220PTCCH1A can be used in simplex, duplex, and triple modular redundant applications. This board can support E, J, K, S, and T standard thermocouples as well as mV inputs with a span of -8 to 45 mV. E, J, K, S, and T thermocouples can be either grounded or ungrounded and can be located up to 984 feet from the turbine I/O panel.
The IS220PTCCH1A offers a maximum software error/conformity error of .25 degrees Fahrenheit. Common mode voltage is +/- 5 volts with AC common-mode rejection of 100dB @50/60Hz. Common mode rejection includes filtering for both hardware and software.
