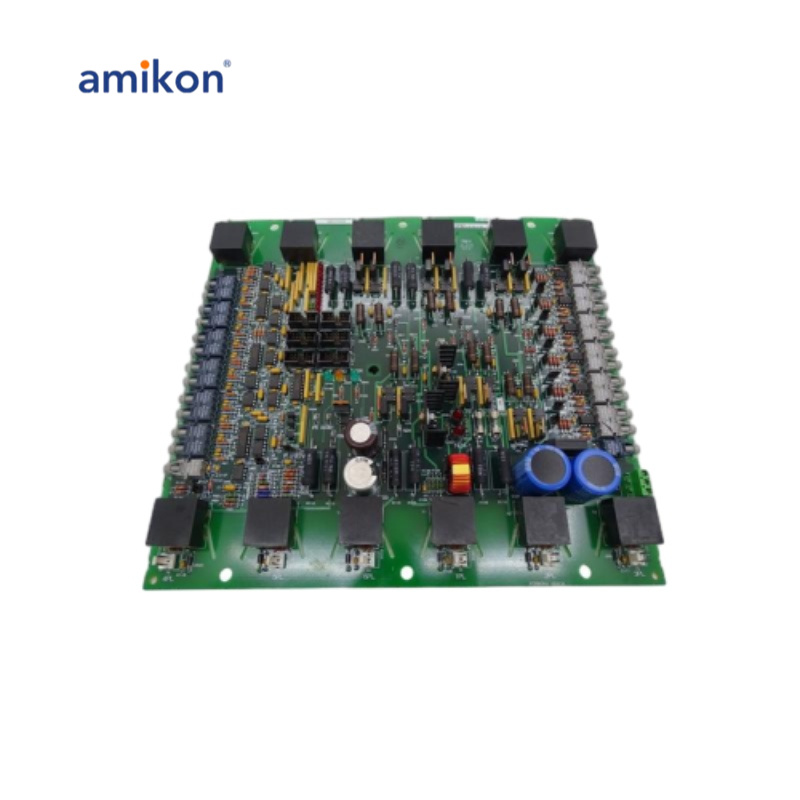

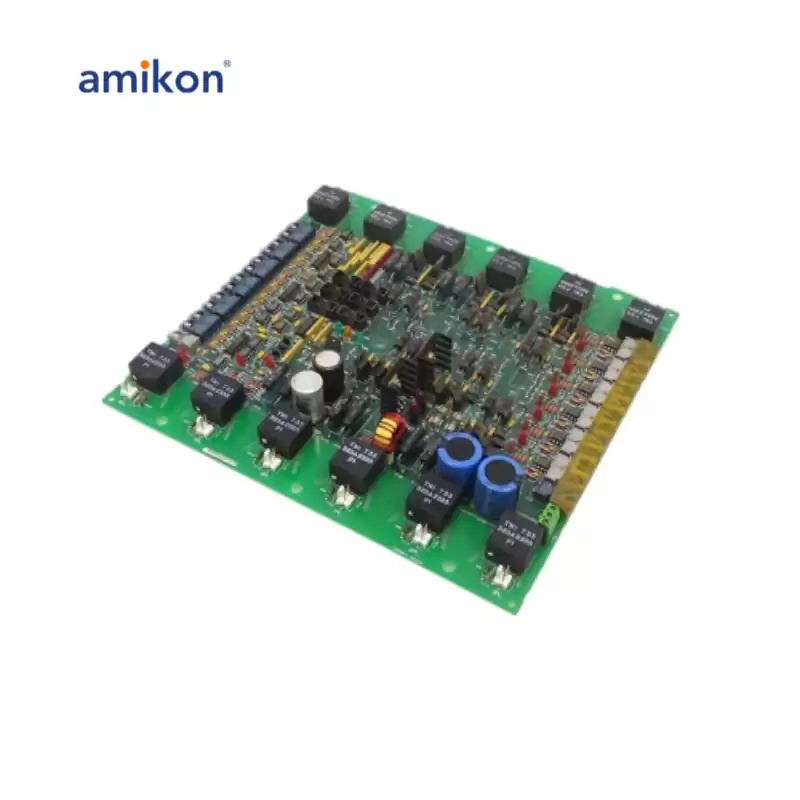

The GE Firing Circuit Control Board DS200FCRRG1AKD features 1 terminal block with terminals for 95 signal wires.
|
|
|
DS200FCRRG1AKD Data sheet
|
It also contains 10 2-pin connectors, 2 ribbon cables, and a programmable logic device.
|
|
To remove signal wires from the terminal block, have on a hand a narrow flat blade screwdriver.
|
|
Loosen the retention screw and pull out the signal wire. Make sure the signal wire has about 0.5 inches of insulation removed from the end of the wire.
|
|
