Dimensions: 4cmx18cmx17.2cm
|
Weight:1.26kg
|
Product Package: Original Package
|
|
Condition: 100% New Original
|
Product Origin: USA
|
|
Full Description: New Factory Package Cleaned and Tested. With 1 Year Warranty.
|
|
VSV0 H1B IS200VSVOH1BED
|
The IS200VSVOH1BED is a PCB component made by General Electric for their Mark VI system. The IS200VSVOH1BED functions within the Mark VI system as a Servo Control board. The board controls four electro/hydraulic servo valves that drive fuel or steam valves. The valve position is measured using LVDTs, or linear variable differential transformers. A loop control algorithm is run using the IS200VSVOH1BED board.

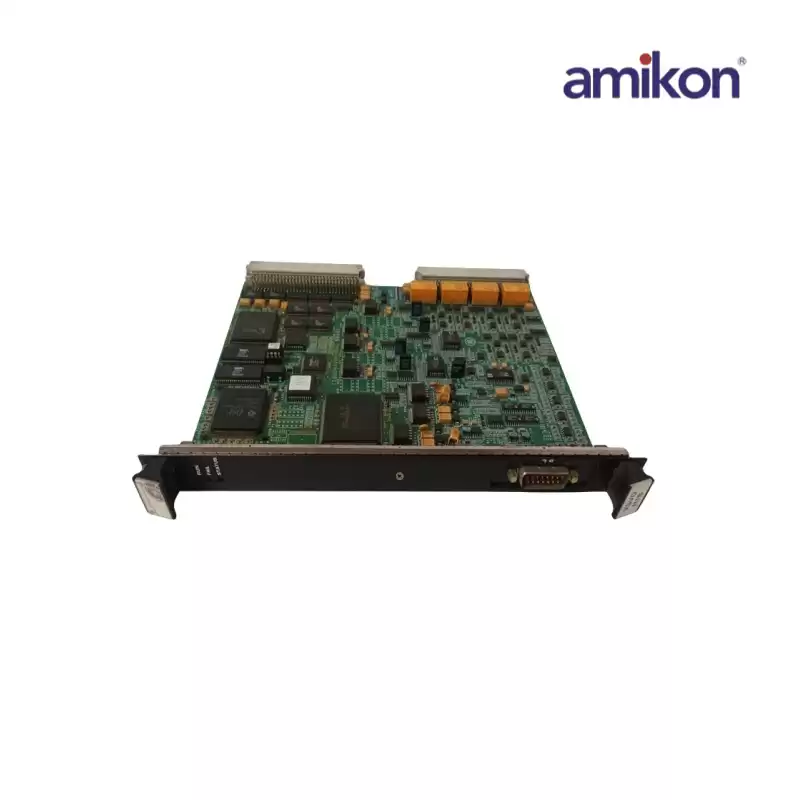

The IS200VSVOH1BED includes a single-slot front faceplate. This faceplate includes information like the manufacturer’s logo and the board number. The faceplate also includes several components, like a cable connector (J5,) and three LED components (Run/Fail/Stat.)

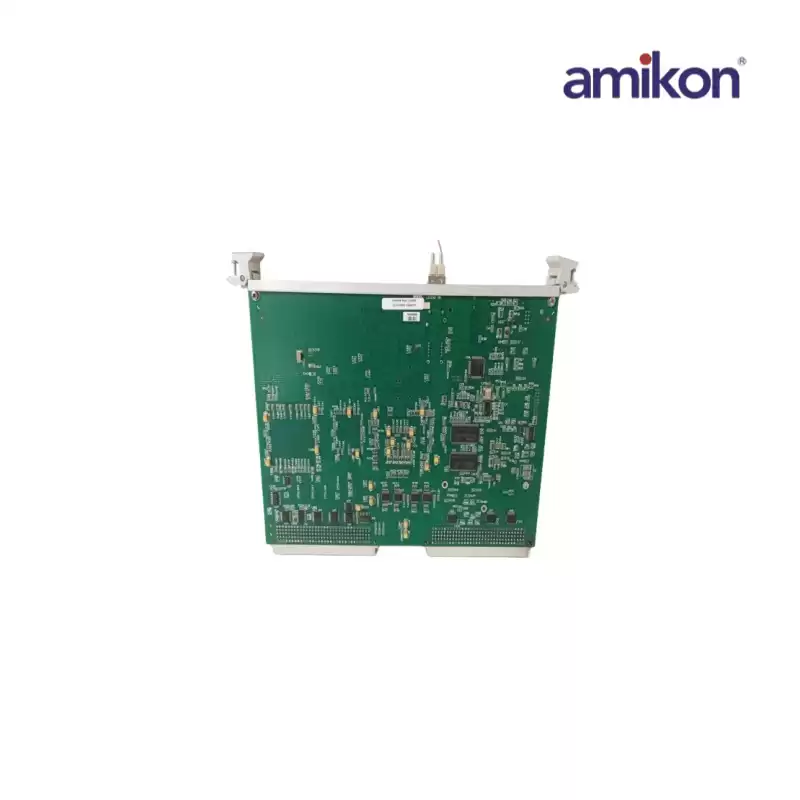

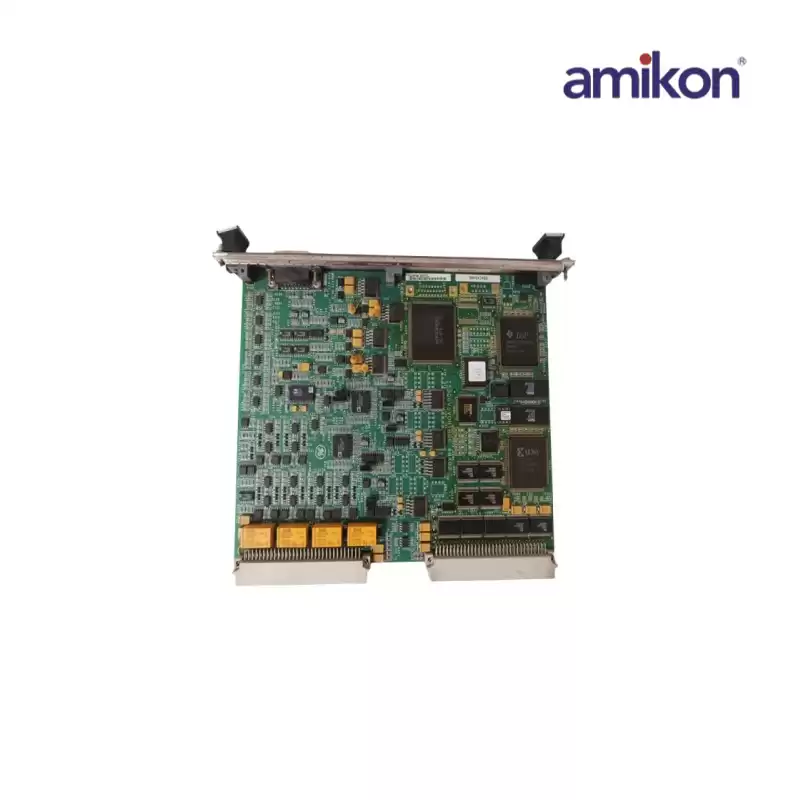

The IS200VSVOH1BED is populated with over seventy integrated circuits. The board has various capacitors and resistors on its surface. TP test points are located in several locations. The board also has four relays on its back edge (K1 through K4.) The board has six connectors beyond the J5 connector in the front panel. This includes two backplane connectors and four connectors made from conductive traces.
|
