Description:

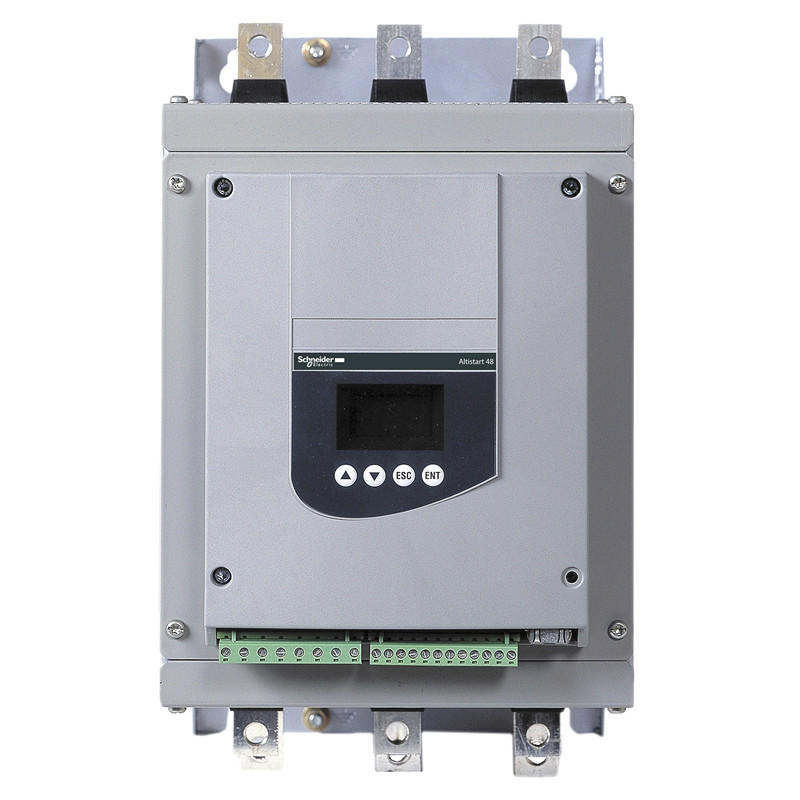

This Altistart 48 soft start/soft stop unit is a controller with 6 thyristors used for torque-controlled soft starting and stopping of three-phase asynchronous motors. It offers soft starting and deceleration functions along with machine and motor protection functions, as well as functions for communicating with control systems. It works at a rated supply voltage from 230V to 415V AC and up to 110A rating. Altistart 48 torque control enables starting without mechanical stress and smooth control of hydraulic transitions, with a single acceleration ramp making adjustments is quick and easy, whatever the load. If connected in the motor supply line it is suitable for motors with power rating up to 55kW (at 400V) for standards applications and 45kW (at 400V) for severe applications. If connected to the motor delta terminals it is suitable for motors with power rating up to 90kW (at 400V) for standards applications and 75kW (at 400V) for severe applications. It weighs 8.3kg and its dimensions are, 190mm wide, 290mm high, 235mm deep. It is designed for use in the most common applications for centrifugal machines, pumps, fans, compressors and conveyors, which are primarily to be found in the construction, food and beverage and chemical industries. It complies with IEC/EN 60947-4-2 standard and is certified CE, UL, CSA, DNV, C-Tick, GOST, CCC, NOM, SEPRO, and TCF. The Altistart 48 is connected directly to the Modbus bus via its RJ45 connector port, It can also be connected to Ethernet, Fipio, Profibus DP and DeviceNet networks via a module (bridge or gateway) to order separately. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. Altistart 48 delivers high performance with its Torque Control System (TCS) for controlled starting and deceleration, an easy integration in enclosures and control systems. This range provides also continual improvement of your machine operation by reducing mechanical or hydraulic stress and limiting energy loss and temperature rise, plus more.
Packaging:
1.Original factory sealed package.
2.Wrap with foam withevery item.
3.Carton package in advance.
4.For heavy cargo, will load with wooden package.
Delivery:
Ships To: Worldwid
1.Fast delivery after payment.
2.Item ship by E-packing/DHL/UPS/FeDEX.
3.All the packing ship with tracking number.
Advantage:
1.Provide global brands products,quality assurance!
2.Cooperated logistic express company, offer cheapest air courier fee.
3.Best price for ATS48C17Q.
4.Reply in time(24 hours online service).
5.Trusted for More Than 20 Years.
6.Reliable Quality Provided.
Feedback policy:
If there is any problem with the product, please contact us as soon as possible. We will help you solve your problems anddo our best. We believe that communication can solve problems. We promise to do the best for you. You can contact our customer service for any assistance.
We will try our best to meet your price and support you.
FAQ
1.Q:How about the warranty?
A:All goods have 1 year warranty.
2.Q:What about the delivery time?
A:Normally in 1 Week.
3.Q: Other suppliers have a better price than yours?
A:To create the greatest benefit for clients is our belief, if you have a better price, please let we know. We will try the best to meet your price and support you.
4.Q:What about the shipment?
A:We can arrange shipment by DHL, FedEx, UPS with competitive price, of course, customers can also use their own freight forwarders.
5.Q:How about the terms of payment?
A:Generally through T/T, Paypal.
