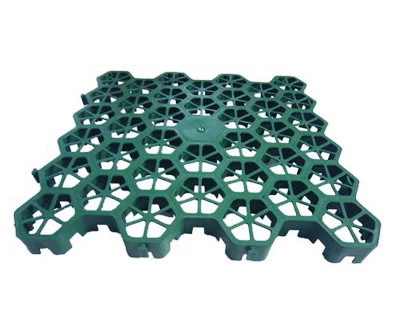

Geopath Harddrive Drive-On Lawn Grid

The porosity of the Drive-On Lawn Grid eliminates the need for retention ponds, drainage systems and other expensive means of dealing with runoff always associated solid paving.


  • Press Strength120tons/sqm
  • Total Volume0.035CBM/sqm
  • Size410x430x38mm
  • ColorGreen
  • MaterialHDPE

Geopath Harddrive Drive-On Lawn Grid Specification:

 Item Code  MW-638B
 Material  HDPE
 Size(L x W x H)  410x430x38mm
 Color  Green
 Application

  •  Grass driveways and grass shoulder;
  • Grass car parks;
  • fairgrounds Parks;
  • Disabled access
  •  Overflow grass car parking lot;
  •  Fire truck access paths/fire lanes;
  •  Handicap access routes;
  •  Pedestrian paths;
  •  Golf buggy/trolley paths;
  •  Emergency vehicle access roads through fields;
  •  Modern factory building;
  •  Noble living communities;
  •  Truck maintenance and equipment yards;

 Compressive Strength  120tons/m2
 Working Temperature  Dimensionally stable for -40℃ to 90℃
 Weight  3.8kg/sqm
 Afforests Rate  95%~100%
 Porosity  90%
 Moisture Absorption  0.1%
 Environmental Compatibility  Non toxic, harmless to plants, animals, and microorganisms, inert material, groundwater neutral
 Anti HCL  According to GB4218-1984, 30%x24h, no visible change
 Anti NaOH  According to GB4218-1984, 40%x24h, no visible change
 Thermal Aging  According to GB/T 7141-1999, 70ICx24h, no visible change
 Anti UV  According to GB/T 18830, UPE>30 T(UVA)AV<5%, qualified
 Features and Benefits

 1. Manufactured from 100% recycled plastics, eco-friendly grass grids;

 2. Flat plug type overlap joint, very convenient, arbitrarily adjust expansion joint width to fit temperature change

 3. Perfect greening, provides more than 95% grass area;

 4. Hight compressive strength and durable,the plastic grass grids is permanent and long lasting;

 5. Fast and easy to install, maintenance with low cost;

 6. Permeability drainage performance, high water culvert;

 7. Anti-UV, resistance to acid and alkaki corrosion, anti-wear and pressure, anti-temperature -40℃ to 90℃;

 8. Grass grids has an open cell structure allowing unrestricted healthy grass root growth;

 9. The grass grids allow grass to grow with easy and binds firmly;

 10. Unique interlocking plastic grass paving grids are chemically inert, non-toxic and rot free.

 Packing  Bundle or Carton (or at your request), 8pcs=2sqm=1bundle
 MOQ  100sqm
 Loading Capacity  940sqm=1x20ft container; 1910sqm=1x40ft container; 2300sqm=1x40HC container
 Shipping

 About 20 days after receipt the deposit.

 FOB Xiamen, appointed shipping-terms and port accept.

 Installation Guide






Manufactured from 100% recycled HDPE material, Leiyuan Drive-On Lawn Grids are an interlocking celluar paving grid system for grass and ground   reinforcement applications. Because of its chemically inert and non toxic feature, grass grid allow the drainage of stormwater back into the underground soil. Except for greening, the grass grid is also designed as a sustainable solution for areas of both heavy and light traffic. During installed, the grass grids can be filled with grass or gravel surface and allow full rainwater penetration.


Lawn grids harmoniously blend your architecture into the landscape in an attractive, functional and environmentally responsible way.

Plastic Grass Grids Construction:



Leiyuan Plastic Grass Grid: High Strength, Long Life Service !
