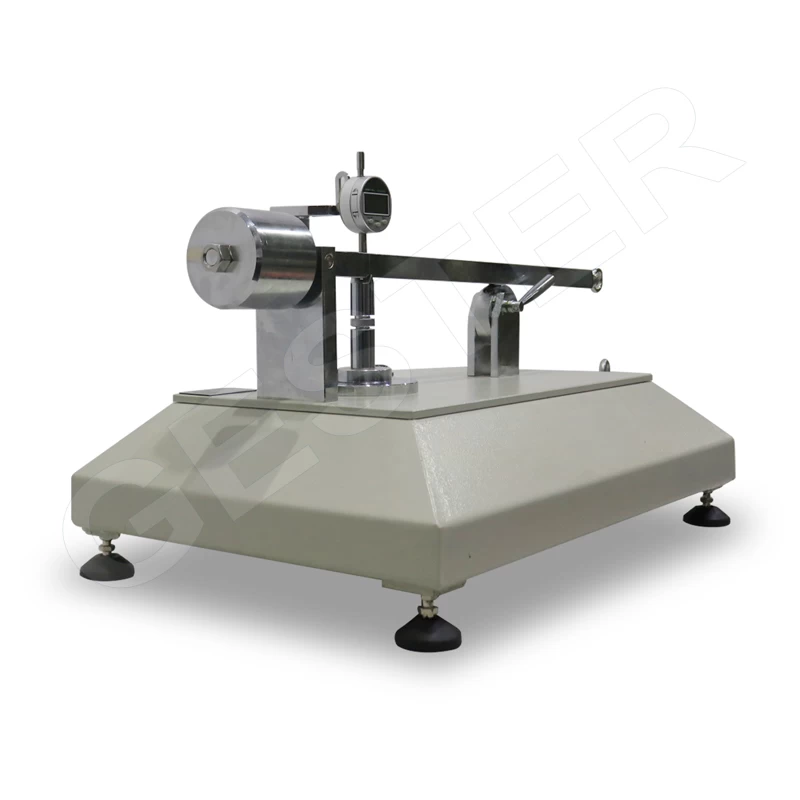

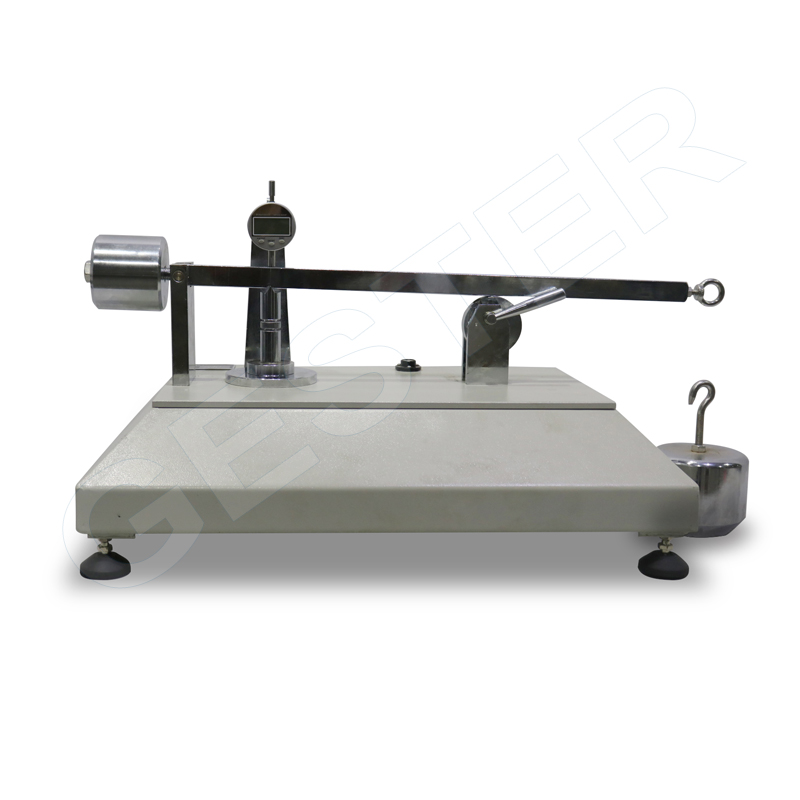

Geotextile Thickness Tester GT-C86

 Geotextile Thickness Tester is designed for test geotextile and its relative products under differents pressure and its thickness under compression time.



Geotextile Thickness Tester GT-C86



Product Introduction

Application:

This Thickness Tester is designed for test geotextile and its relative products under differents pressure and its thickness under compression time.


Standards:

JTG E50, ISO 9863, GB/T 13761


Dimensions

Geotextile Thickness Tester GT-C86



Features

Geotextile thickness gauge: It is designed for test geotextile and its relative products under differents pressure and its thickness under compression time.



Geotextile thickness gauge GT-C86



Key Specifications



Model

GT-C86-1

GT-C86-2

Pressure Foot Area

25cm² (Circular Diameter: 56.42mm)

Pressure Weight

5N (Dead Weight: 510.2g  4 pcs)

Sample Pressure

2±0.01kpa; 20±0.1kPa; 200±0.1kPa

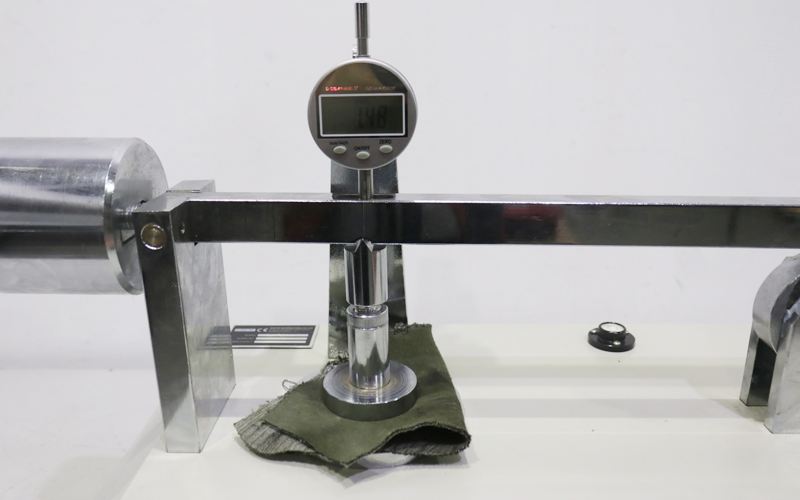

Thickness Gage

Indicator: 024±0.01mm

Dial Indicator: 01±0.001mm

Seconds Counter

Min Division Value 0.1s

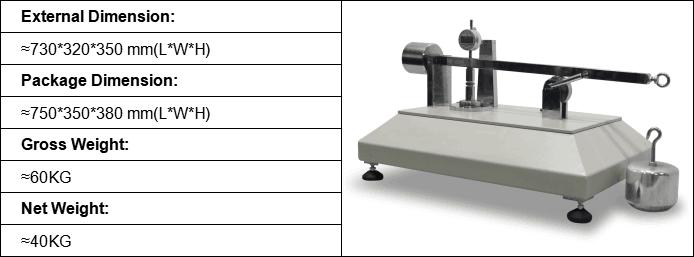

Dimensions

730×320×350mm

Weight

40kg

Standards

JTG E50, ISO 9863, GB/T 13761

Standards accessories

Press foot 1pc

Load 1pc

Seconds Counter 1pc



Application Industry

All kinds of geotextile materials can be tested by the Geotextile Thickness Tester GT-C86
