German Baudouin Diesel Generator 36kw 45kva Generator Weichai Baudouin Engine 4M06G50/5

High Quality Baudouin Generator 45kva


Facebook Twitter Pinterest LinkedIn 分享
Product Description


German Baudouin Diesel Generator 36kw 45kva Generator Weichai Baudouin Engine 4M06G50/5



Standard Configuration
• Engine include air,fuel,oil filters, starting motor and charge alternator etc.
• Brushless AC alternator,single bearing, flange connection, w/AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery w/ connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc




Engine
GENERAL ENGINE DATA
Engine manufacturer
Baudouin（Weifang）Power Co.,Ltd.
Engine brand
Baudouin
Engine model
4M06G50/5
Engine speed (rpm)
1500
Engine output(kWm)
Standby Power
48
Prime Power
44
Continuous Power
TBD
No. of Cylinder
4
Aspiration
Turbochanger
Bore * Stroke (mm)
89*92
Displacment (litre)
2.3
Compression Ratio
17.5:1
Engine Idle Speed (rpm)
FUEL SYSTEM
Type Injection System
BYC A/Electronic Governor
Fuel Consumption (litre/hour)
100% prime power
10.7
75% prime power
8
50% prime power
5.4
25% prime power
3.3
EXHAUST SYSTEM
Maximum Back Pressure (kPa)
80
Exhaust Gas Temperature (standby/prime power) (°C)
700
Exhaust flow @ PRP (m³/min)
8.82
AIR INDUCTION SYSTEM
Air intake temperature rise (°C)
≤ 5
Air intake restriction clean filter (mBar)
≤ 35
Air intake restriction dirty filter (mBar)
≤ 60
Recommended air flow @ PRP (m³/min)
2.6
LUBRICATION SYSTEM
Oil flow at 1500 Rpm (L/min)
22
Oil pressure in normal condition idle speed (Bar)
≥ 1
Oil pressure in normal condition at 1500 Rpm @ PRP (Bar)
2-5
Maximum Oil Temperature (°C)
115
Min. required Lube system capacity-sump plus filters (liter)
11.5
COOLING SYSTEM
Coolant capacity of radiator and pipes (L)
3.4
Coolant capacity of the engine (L)
5
Cooling fan airflow (m³/min)
102
ELECTRICAL SYSTEM
Electrical system voltage (negative to ground) (Vdc)
12
24
Starter power (kW)
3.8
Battery charger current (A)
35
Max. electric resistance of starting circuit (Ω)
0.004


Alternator
Alternator manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Alternator brand
Leroysomer
Alternator model
TAL-A42-G
Control system
SHUNT
A.V.R.
Included
Voltage regulation
±1.0%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings (kVA/kW)
----------------Cont.H-40°C
45/36
----------------Standby-27°C
50/40
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single
Products Show

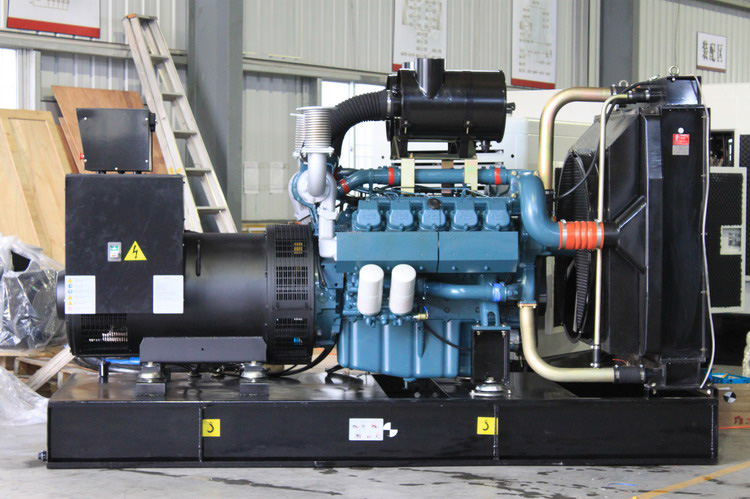

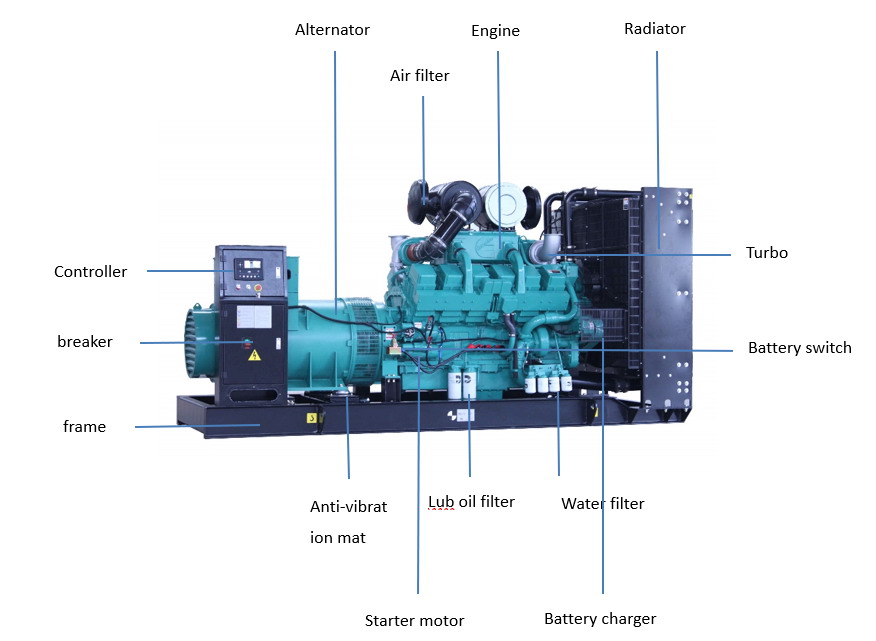

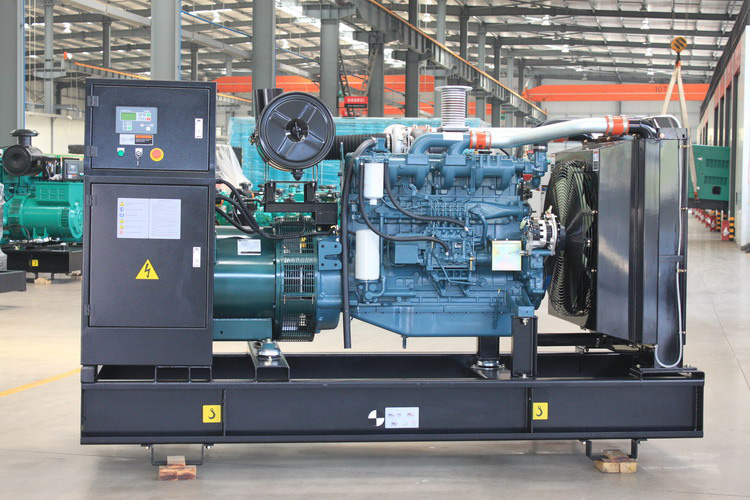

Open Diesel Generator:

1.Famous brand engine couple with high quality alternator

2.Large size cooling radiator

3.Heavy duty steel base frame
4.Strong anti-vibration mat
5.Standard free maintenance battery
6.AC alternator for battery charger
7. Heavy-duty air filter, oil filter, water filter
8.Famous brand controller and breaker
9.Optional fuel tank, silent canopy, ATS, synchronization panels.

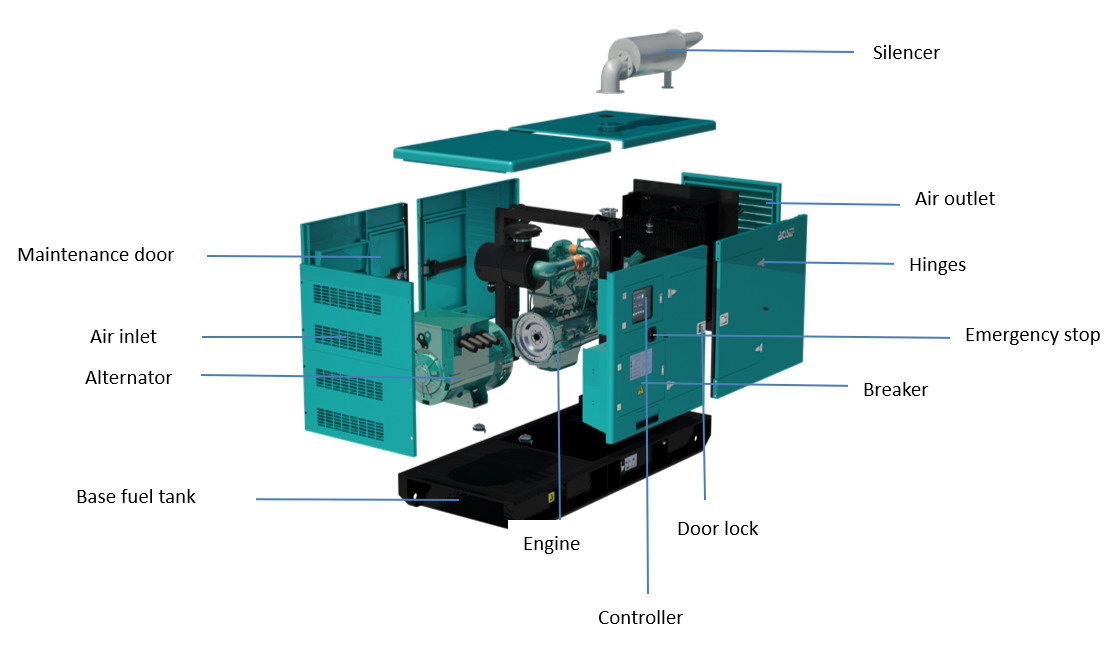

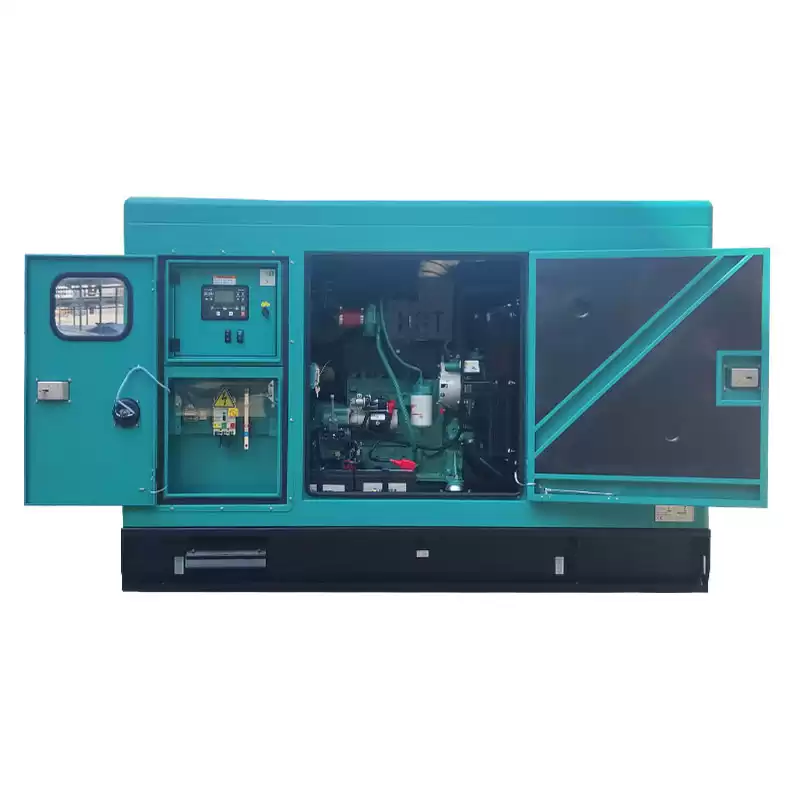

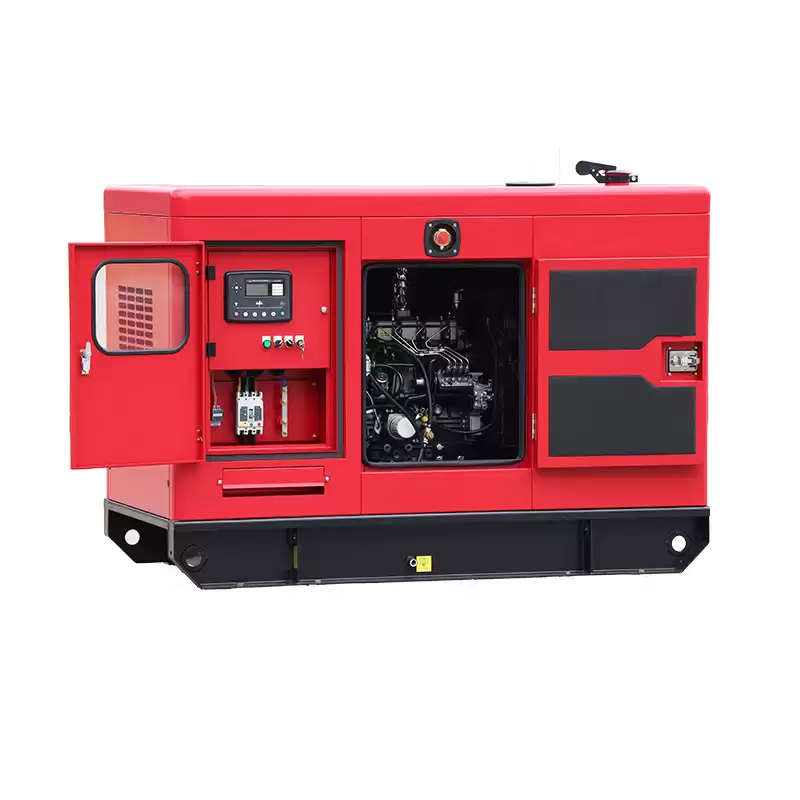

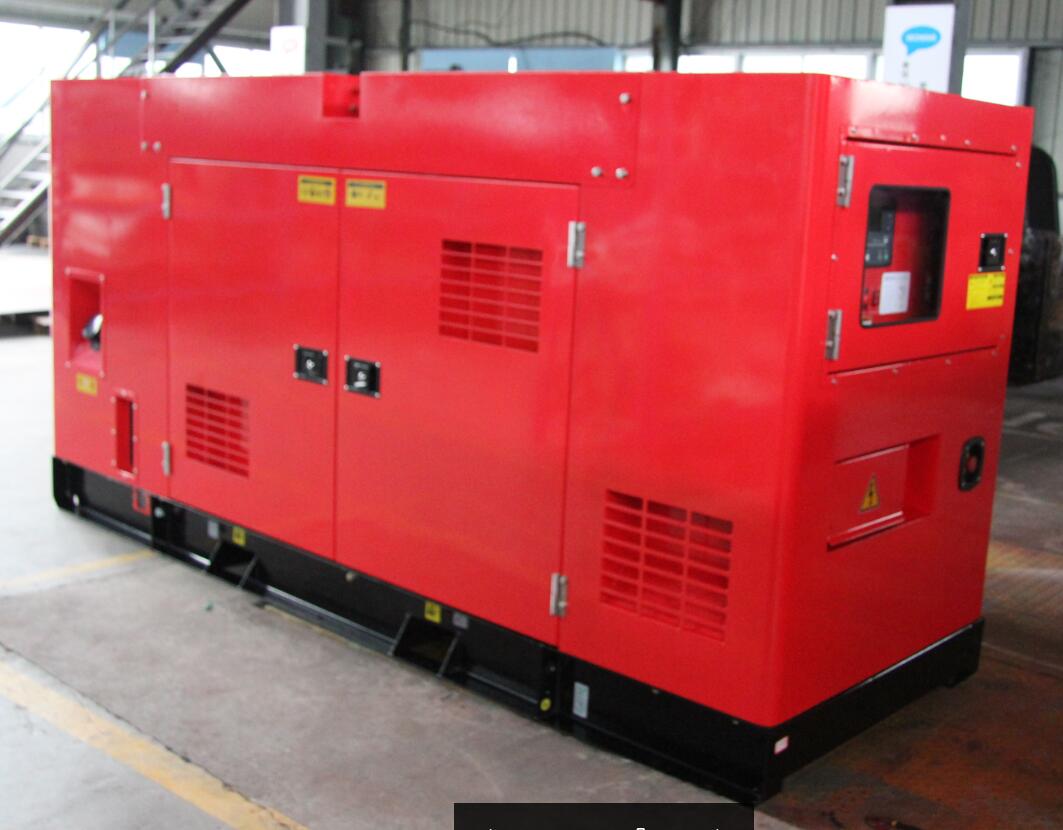

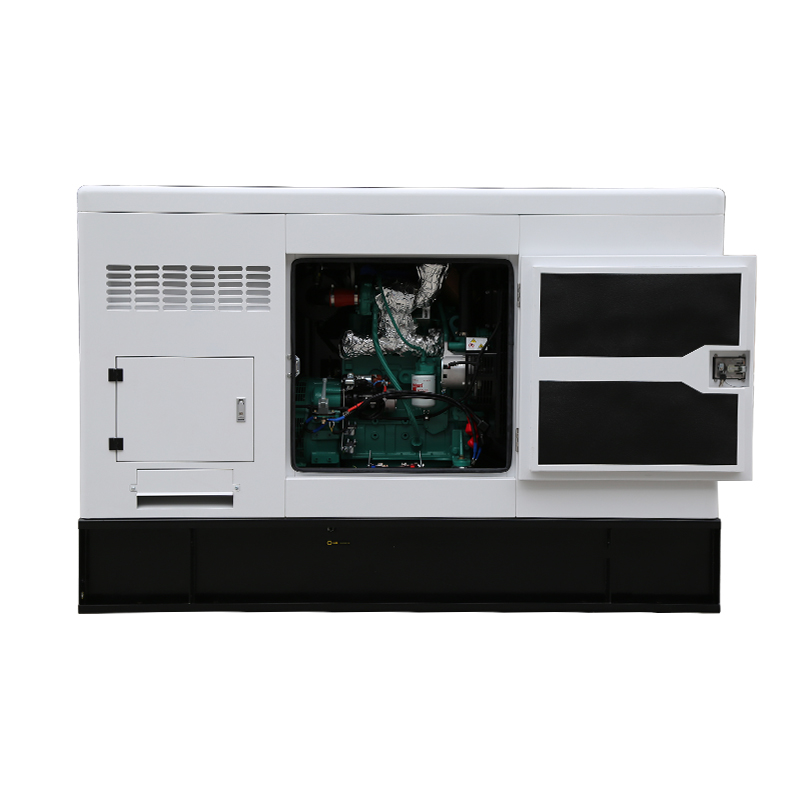

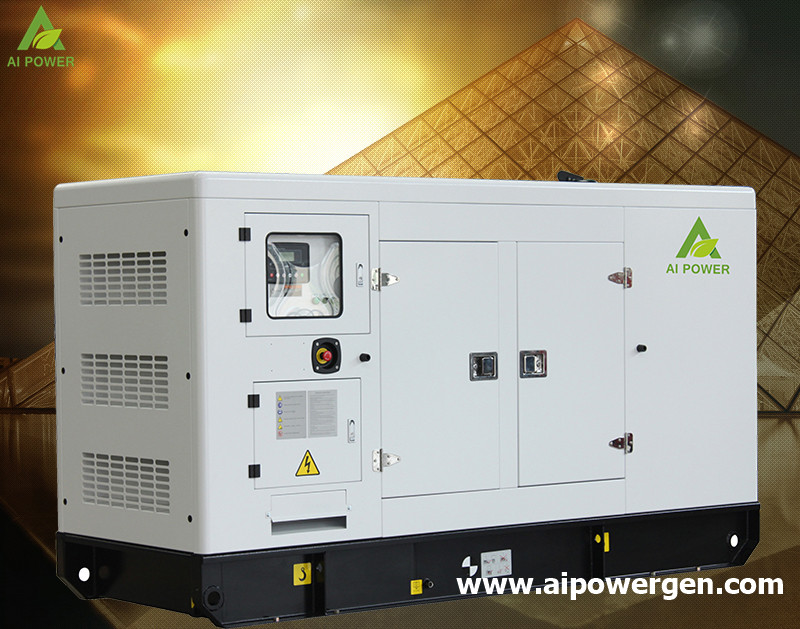

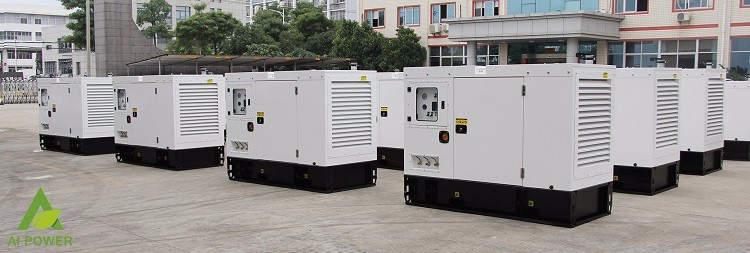

Silent Diesel Generator:

1. More than 2mm thick steel to make the canopy
2. High quality paint materials and strict powder paint
3. Impedance combined type silencer
4.Stainless steel door locks and hinges and 180°         revolvable and disassemble door
5.High quality soundproof and insulation materials
6.Transparent viewing window
7. Lifting earis mounted in the base frame

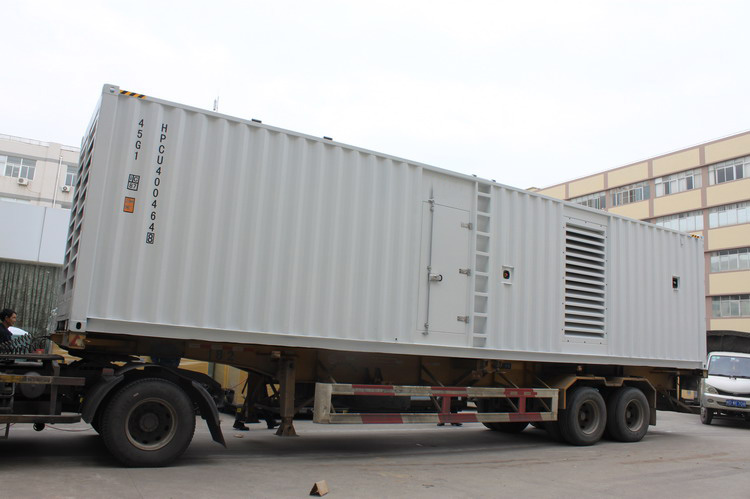

8.Standard 20’, 40’ and 40HQ container canopy for option
Ai Power Company

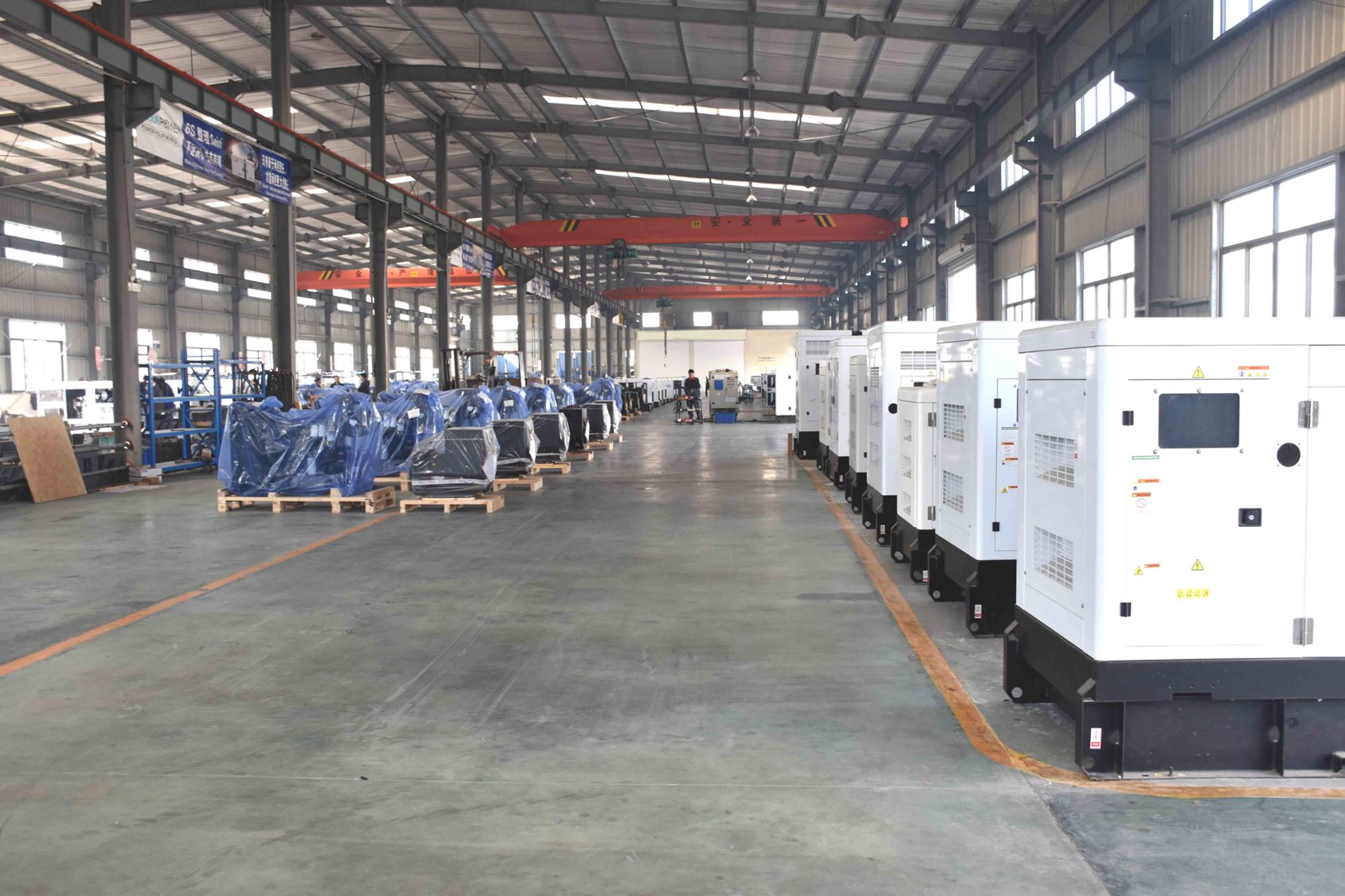

Company Profile


Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, etc.

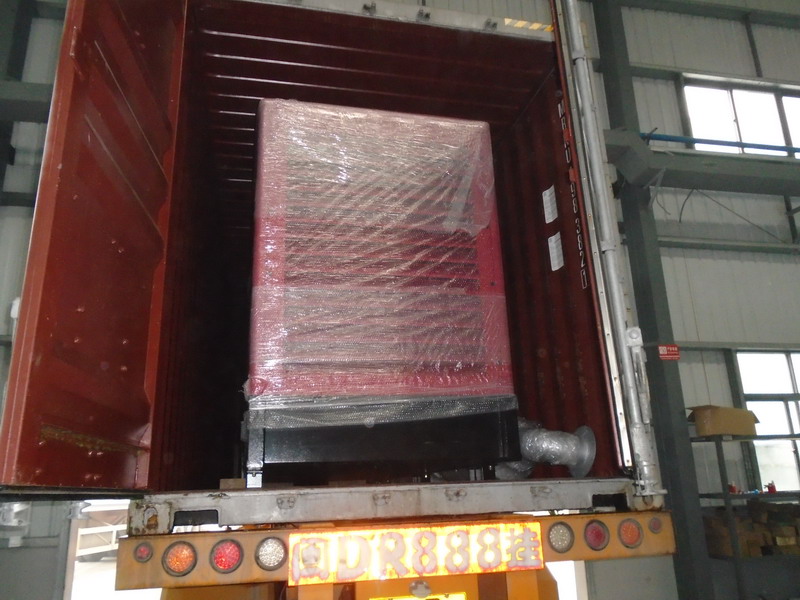

Packing & Delivery
FAQ


1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.

2. Besides power generator, what's your other product?

Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.

3. What's kind of generator type you produce?

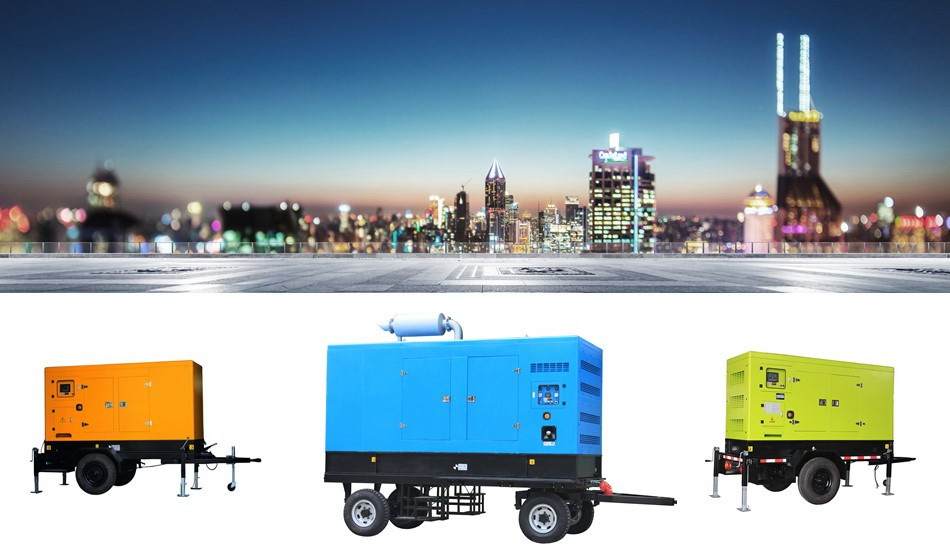

Answer: open generators, silent power generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What’s your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
