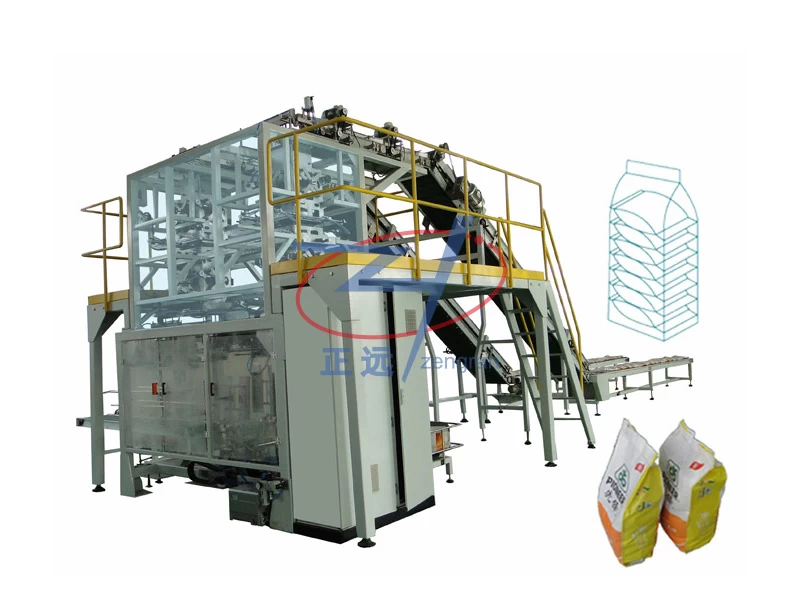

GFSP double silo bag in bag packaging machine

GFSP double silo bag in bag packaging machine  includes one set of horizontal connecting conveyor, one set of climbing conveyor, one set of GFSP double silo bag in bag packing machine and one set of take-off conveyor,for pouch filling packing equipped with seeds packaging machine and check weigher.



GFSP double silo bag in bag packaging machine for pouch filling packing euqipped with seeds packaging machine and check weigher


GFSP double silo bag in bag packaging machine



Technical features:

No.

Features

1

This packing unit includes one set of horizontal connecting conveyor, one set of climbing conveyor, one set of GFSP double silo bag in bag packing machine and one set of take-off conveyor.

2

This machine integrates the functions of bags feeding, conveying, bags filling, sewing, cutting,etc.

3

The machine has good sealing performance and can meet customer's hygienic requirements.

4

All the electrical components and control components adopt local and foreign well-known brands with reliable performance, such as Siemens PLC and touch screen,Delta servo motor,Schneider electrical components,SMC pneumatic components,etc.

5

We can also offer the primary packing machine for weighing filling bulk materials in plastic bag, for example, we offered complete line includes primary seeds packaging machine , check weigher and the secondary pp woven bag packing machine to Pioneer seeds.


Application:

Liquid: detergent, fruit juice,miller wine,soy sauce,vinegar,drinks etc. Thick liquid: chilli sauce, tomato sauce,peanut butter,jam,bean sauce etc.

Solid: candy,peanut,green bean,pistachio,brown sugar,cake,daily commodities,cooked food,pickles,puffed food etc.

Granule: grain,granular drug, capsule, seed, condiments, granulated sugar, chicken essence, melon seeds, nuts etc.

Powder: milk powder,coffee powder,food additives,condiments,tapioca powder,coconut powder,pesticide powder,fertilizer granules etc.



Technical Form:

No.

Item

Parameter


Packing products

Plastic bag with material

1

Packaging weight

According to customer's requirement

2

Max.Speed

90 times/min

3

Filling order

According to customer's requirement

4

Power supply

380V±10%  50Hz   10KW

5

Machine weight

5000kg

6

Machine size

6000*2000*4900mm

7

Air supply source

0.6MPa, 0.5m3/min
