2020 ISUZU GIGA Urban Water/Foam Fire service Vehicles
Introduction
GIGA ISUZU Foam water dry powder fire engine (also
called as ISUZU GIGA Dry powder fire extinguisher, GIGA foam fire
pumper, Isuzu combined dry powder foam fire truck, Dry powder rescue
fire trucks ISUZU Giga brand ) This
Isuzu Fire fighting trucks are designed with stand the prevailing humen
conditutions, much as ambient temperature, maximum relative humidity,
the sand, the dust and the influence of high salinity condtions.
Advantages
|
|
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
Main Parameters
Manufacturer
|
POWERSTAR TRUCKS INDUSTRY CO., LIMITED
|
Product Name
|
Dry powder water foam Fire Truck ISUZU
(10,000 L water+2,000L foam+2,000L dry powder)
|
Vehicle Brand Series
|
ISUZU
|
Vehicle Model
|
PT5350GXFPM60
|
Chassis parameters
|
Overall dimensions
|
mm
|
13500*2500*3460
|
Gross weight
|
kg
|
35000
|
Curb weight
|
12630
|
Wheel base
|
mm
|
1850+4575+1370
|
Driving type
|
8X4
|
Number of axles
|
4
|
Tire specification
|
12.00-20
|
Number of Tires
|
10+1
|
Passengers in cab
|
2+4
|
Engine
|
Engine model
|
6UZ1-TCG50
|
Type of fuel
|
Diesel
|
Power/Displacement
|
ml
|
380HP /9839
|
Max speed
|
Km/h
|
110
|
Emission standard(TAS)
|
EURO 5
|
Fire performance
|
Tank capacity
|
Water tank capacity: 10000 L
|
Foam tank capacity: 2000 L
Dry powder tank capacity:2,000L
|
Fire pump
|
Model: CB10/60
|
Pressure (Mpa): 1.0
|
Rate (L/S): 60
|
Fire monitor
|
Model:Ps60
|
Flow:60L/S
|
Water jet distance:≥65m
|
Foam jet distance: ≥60m
|
Electronic alarm
|
LY CJB-100-C24
|
Alarm lamp
|
LY TBD-XF-168LED
|
Detail Images

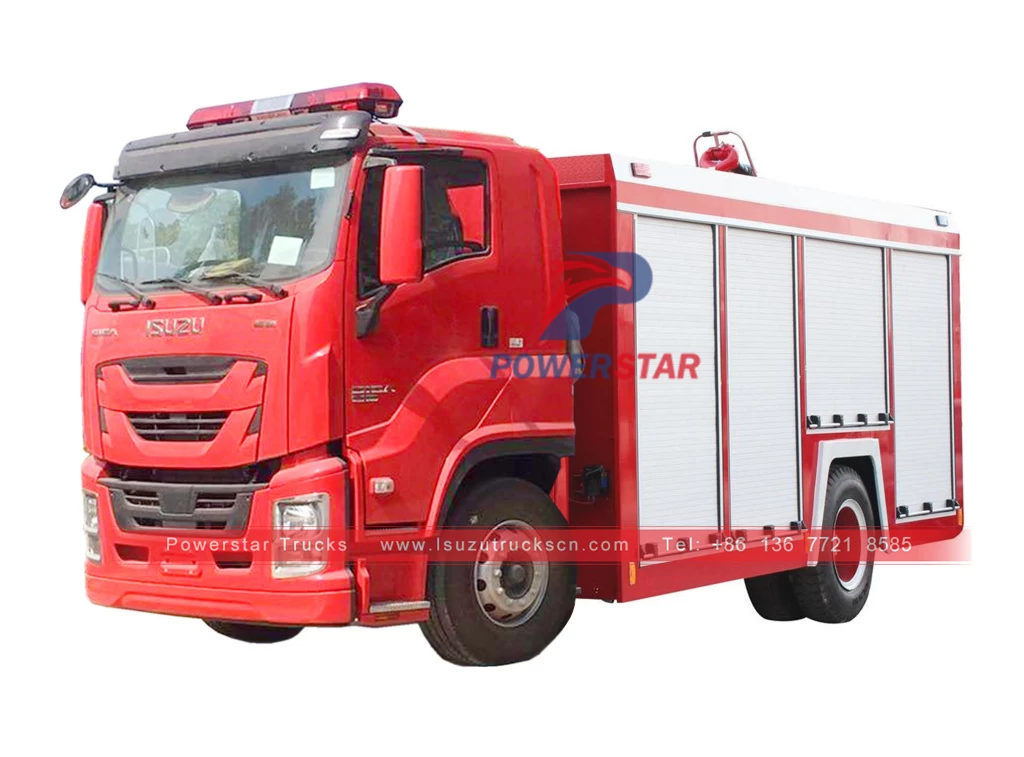

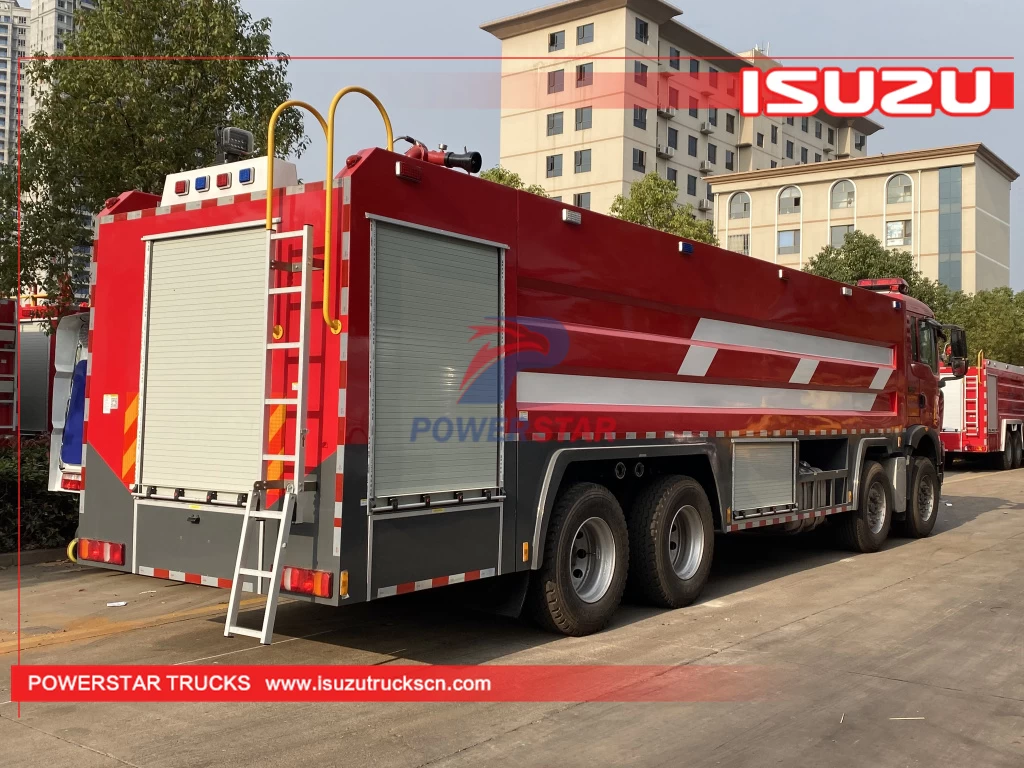

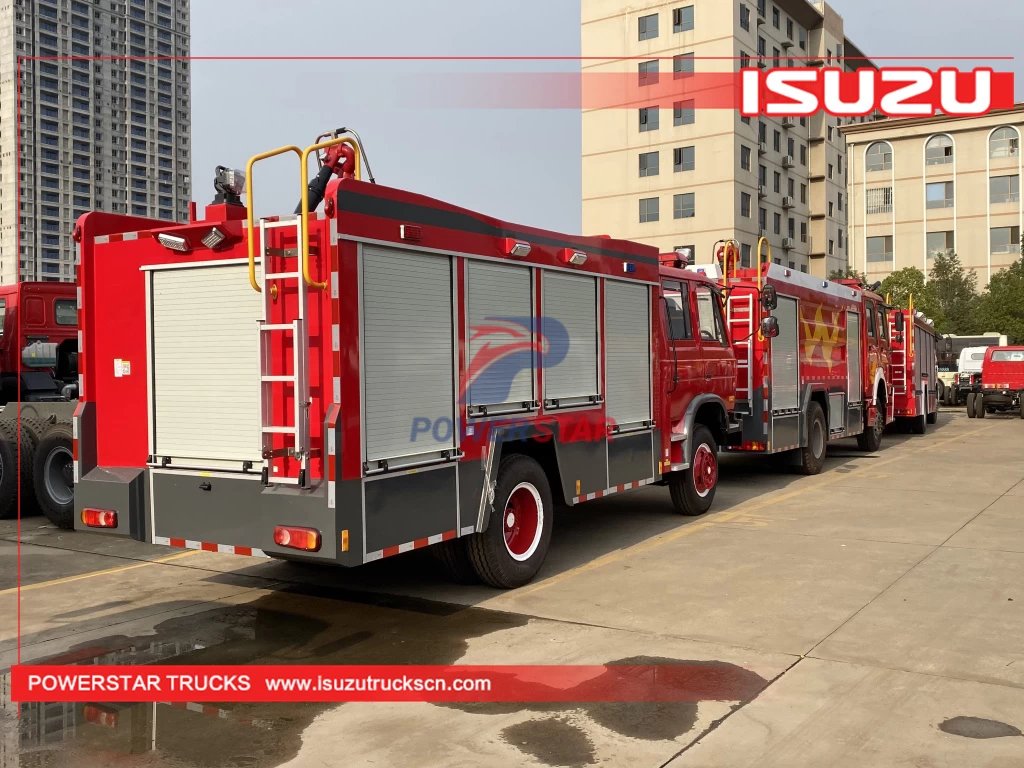

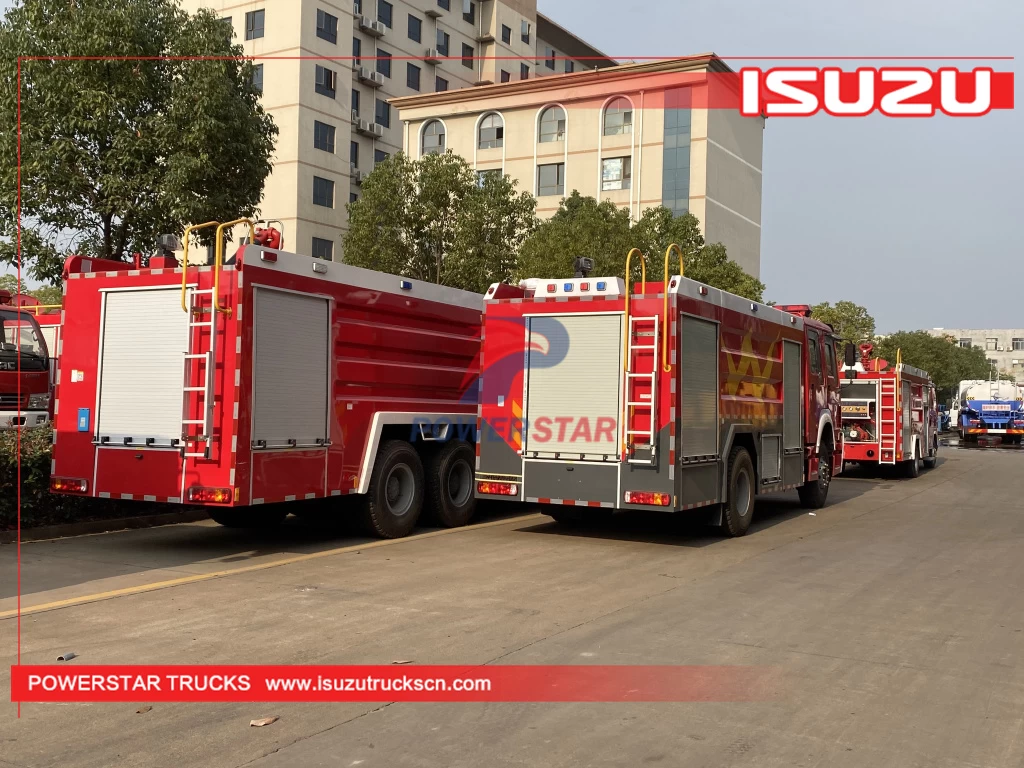

GIGA ISUZU city water foam fire service vehicles
GIGA ISUZU city water foam fire service vehicles
GIGA ISUZU city water foam fire service vehicles
GIGA ISUZU city water foam fire service vehicles
Fire Equipments:
Performance Testing:
