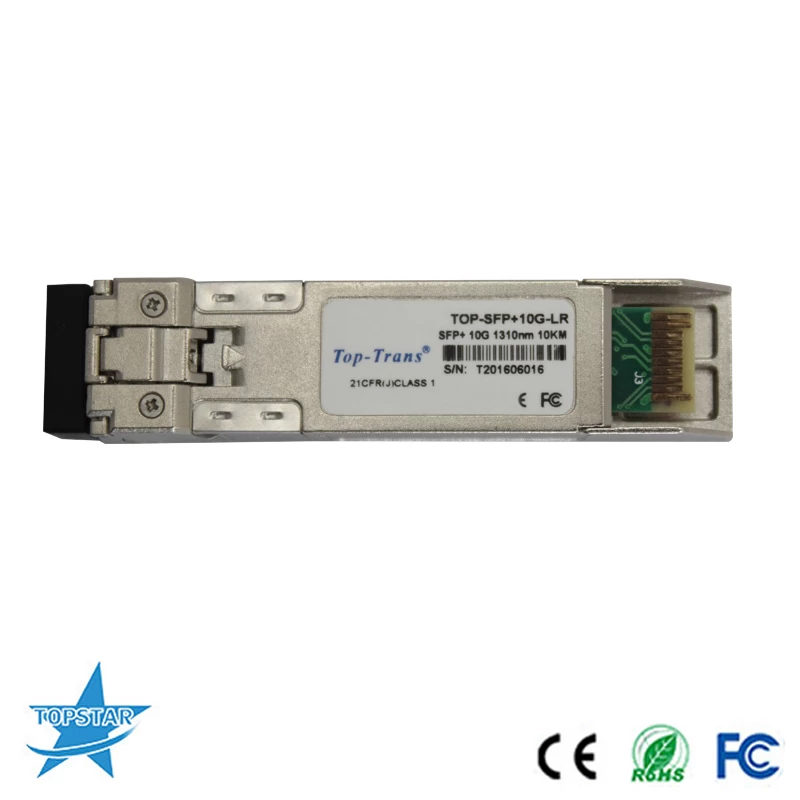

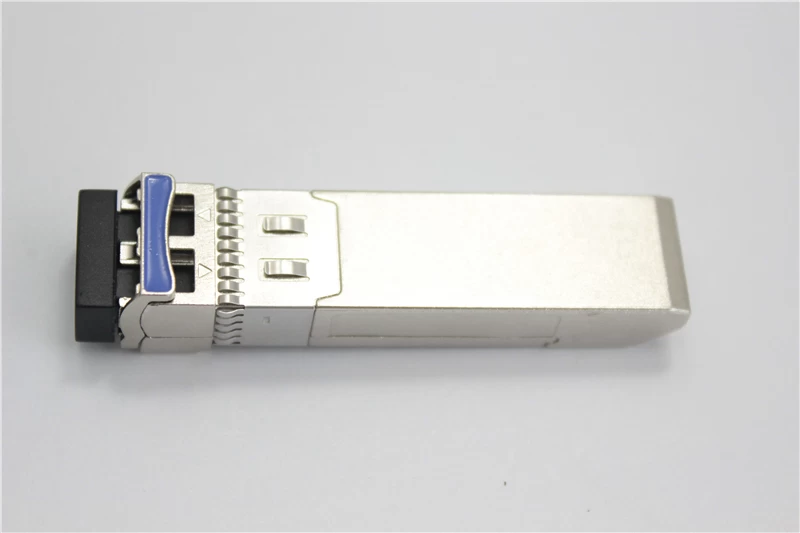

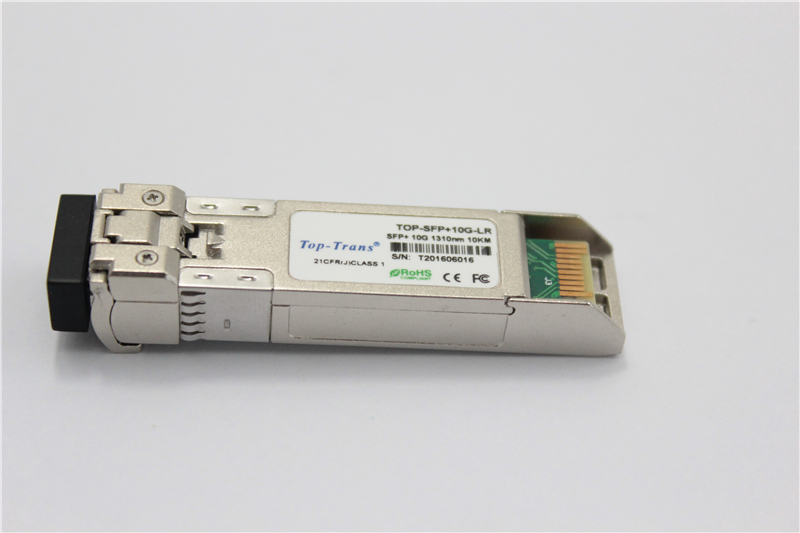

Gigabit SFP-10G-LR Compatible with Cisco WS-C3650-8X24UQ-S 1310nm 10km 10G Switch

TOP-SFP+-10G-LR optical transceivers are designed for 10Gb/s serial optical interfaces for tele-communication and data communication with single mode fiber (SMF). The transceiver is Compatible with Cisco WS-C3650-8X24UQ-S, can support 1.25Gb/s to 11.1Gb/s. The transceiver designs are optimized for high perform-ance and cost effective to supply customers the best solutions for telecommunication.



  • ConnectorSingle port LC/SC
  • Wavelength1310nm
  • Distance10km
  • Data Rate10G
  • Warranty3 Years
  • Temperature0℃~70℃/ -5℃~85℃/ -20℃~85℃

Gigabit SFP-10G-LR Compatibility Matrix 1310nm 10km 10G Switch

Gigabit SFP-10G-LR 1310nm 10km


PRODUCT FEATURES

●  SFP MSA package with duplex LC connector

●  Very low EMI and excellent ESD protection

●  Digital Diagnostic Monitor Interface

●  Hot pluggable

●  10Gb/s serial optical interface

●  Up to 10km distance

●  Compliant with SFP+ MSA

●  High transmission margin

●  +3.3V single power supply

●  Below <1W power consumption

●  SFP mechanical interface



APPLICATIONS

●  10G Base-LR/LW

●  10G Fiber Channel



STANDARD

●  SFP+ MSA Compliant

●  SFF-8472 reversion 9.5 compliant

●  IEEE802.3-2005 compliant

●  Telcordia GR-468-CORE compliant

●  FCC 47 CFR Part 15,Class B compliant

●  FDA 21 CFR 1040.10 and 1040.11,class1 compliant

●  RoHS compliant


Professional Service

1.Quality: Fully testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


2.Compatibility: 100% testing in Error Detector/ Industrial Oven/ Agilent Oscilloscope/ Digitizer/ WaveRunner etc specialist testing equipment before shipment.


3.Warranty: If cargoes have any problem, just provide related photos or DDM screen shot, we support 1 month unconditional return, 1 year replacement or repair. This warranty does not cover damage caused by accident, improper care, improper use, negligence, normal wear and tear, or the natural breakdown of colors and materials over extended time and use.


4.Customized label and package , OEM and ODM service offered.
