GuangLi Car Lift:

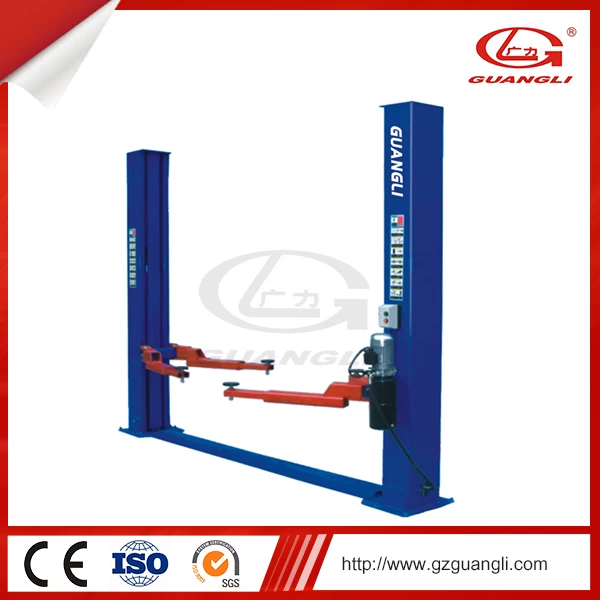

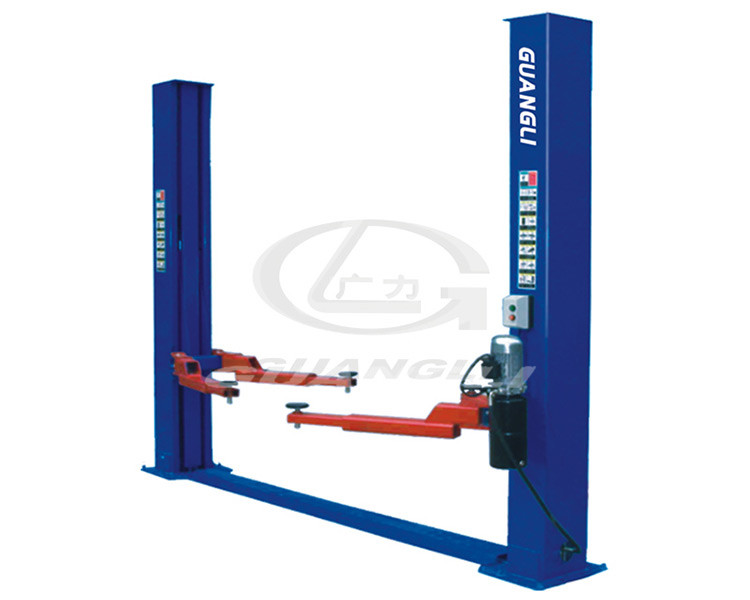

GL-4.0-2F Two Post Hydraulic Auto Lift features:
Hydraulic power driving to elevate;
Good rigidity; ascending or descending stably;
The posts formed & molded as a whole at a time;
Double insurance: Self-holding devices to protect;
locking automatically when descending, safe & reliable;
Max. height to oprerate : 1900MM; Width between the posts: 2800MM Standard configuration: 380V Chinese pump.
Rising by chains and balancing through steel ropes; Safety intruments in each post; Unhooking automatically when ascending;
Technical Specifications
Max.lifting weight(Kg) 4000
Max.lifting height(mm) 1900
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Two-Cylinder

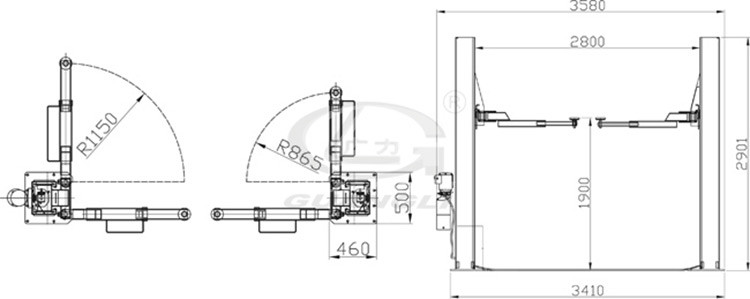

2F Two Post Lift Outline Drawing (unit:mm)
