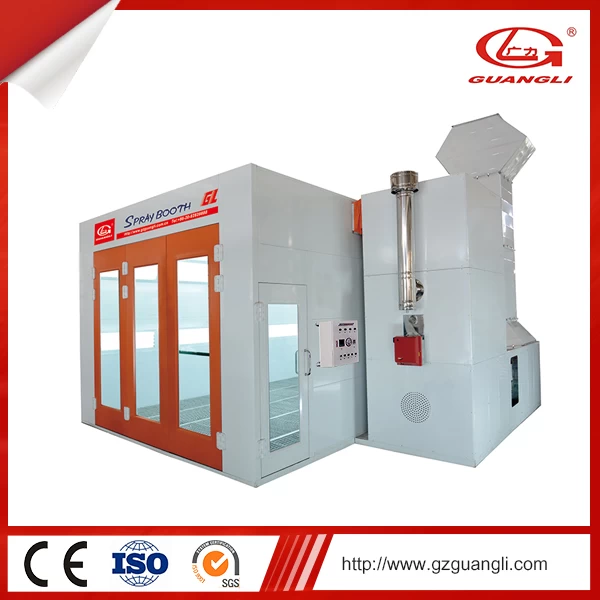

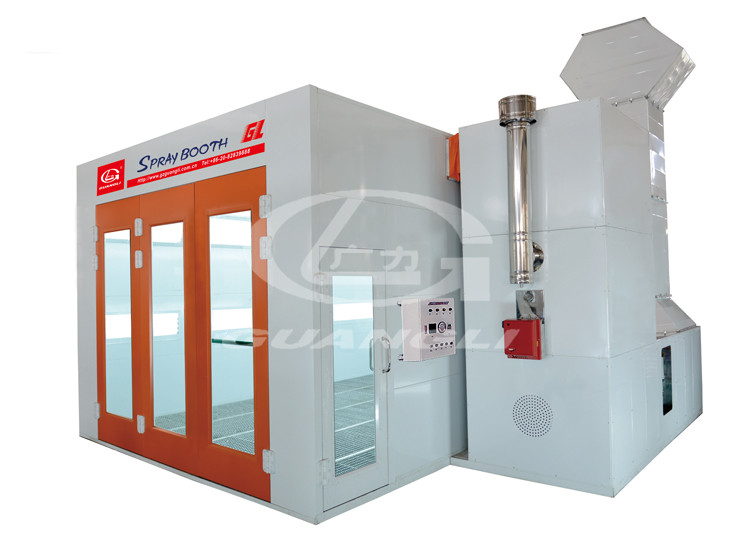

GL-A1 Serial Spray Booth
Specification:
Body & basement:

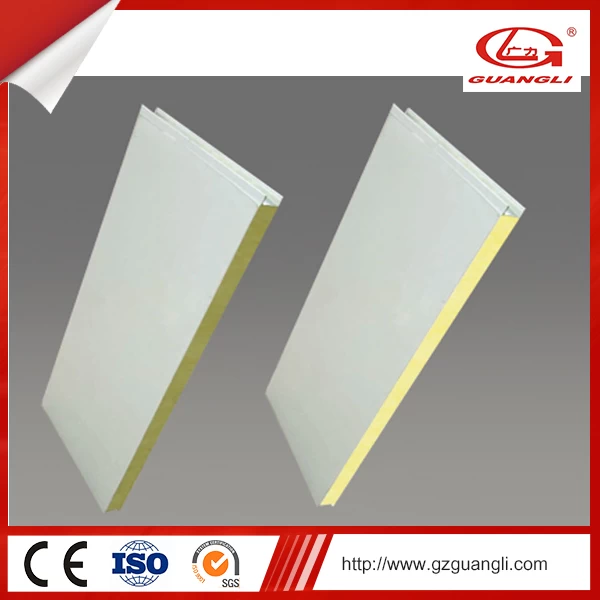

Wall panel: thickened colour steel plate, fireproof heat insulation materials.
wall panel horizontal type installation, Polystyrene as option.

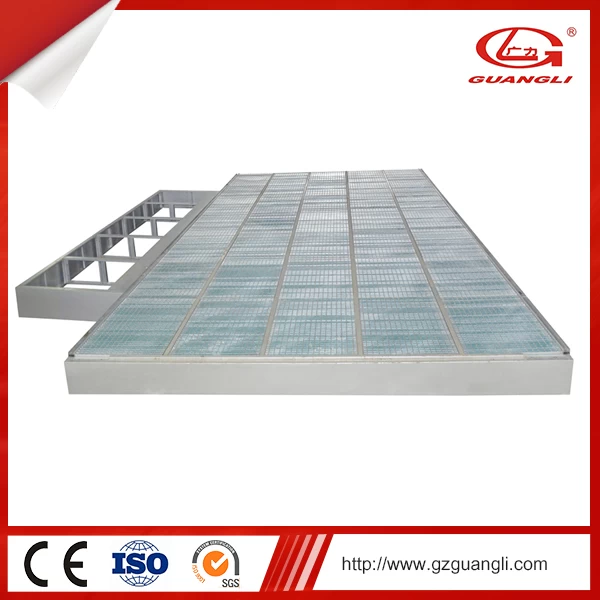

Basement: steel structure, 4 tons rated load.
Fans
Intake Fan: total air flow volume is 24000m³/h.
Spraying/baking transition damper: cylinder driving mechanism.
Burner & filter:
Heat exchanger: made of stainless steel, cycling heating.

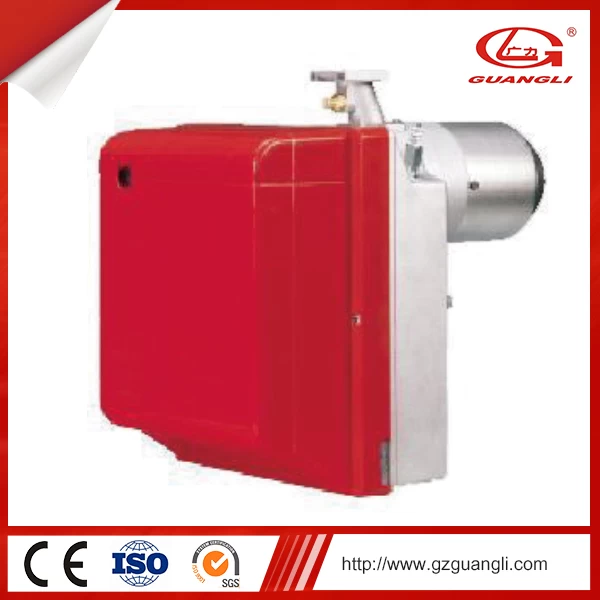

Burner: RIELLO /RG5S.
Roof filter: Punching type network installation.
LED light & control box:

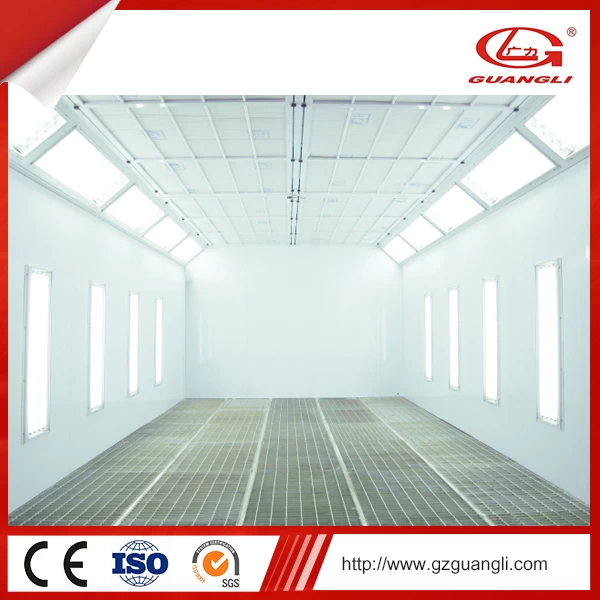

Upper light: 10sets, Side light: 7 sets.
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection.
Spraying: with functions of constant temperature spraying.
Environmental filter: activate carbon as option.
