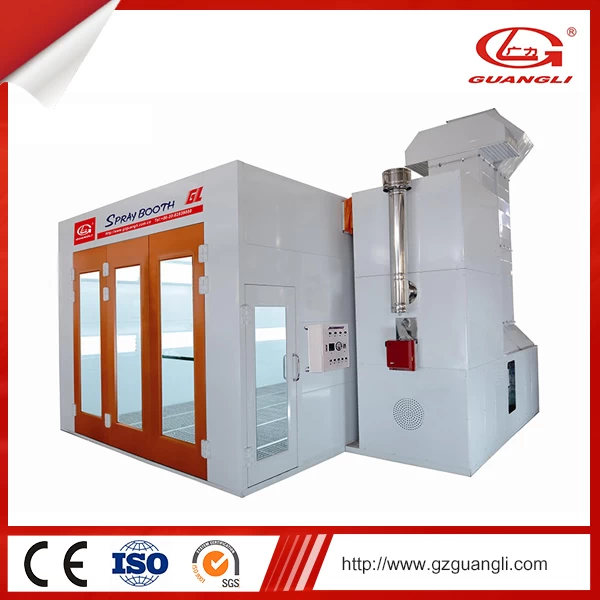

GL-A2 Serial Automotive Spray Paint Booth
Specification:

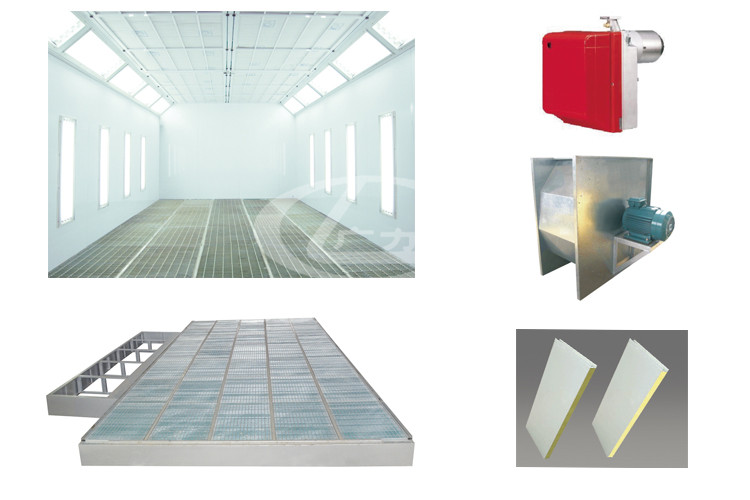

Body & basement:
-
Wall panel: thickened colour steel plate, fireproof heat insulation materials.
-
wall panel horizontal type installation, Polystyrene is optional.
-
Basement: steel structure, 4 tons rated load.
Fans & Burner:
-
Intake/Exhaust Fan: total air flow volume is 24000m³/h.
-
Spraying/baking transition damper: cylinder driving mechanism.
-
Heat exchanger: made of stainless steel, cycling heating.
-
Burner: RIELLO /RG5S.
-
Roof filter: Punching type network installation.
LED LIGHT & CONTROL BOX
-
Upper light: 10sets. Side light: 7 sets.
-
Control box: Imported components, overload, overheat, phase-lacking, phase-locking protection.
-
Spraying: with functions of constant temperature spraying.
-
Environmental filter: activate carbon as option.
