GL-L4 High Quality Auto Body Works Painting Line for Car Service
Auto Works Painting Line Feature

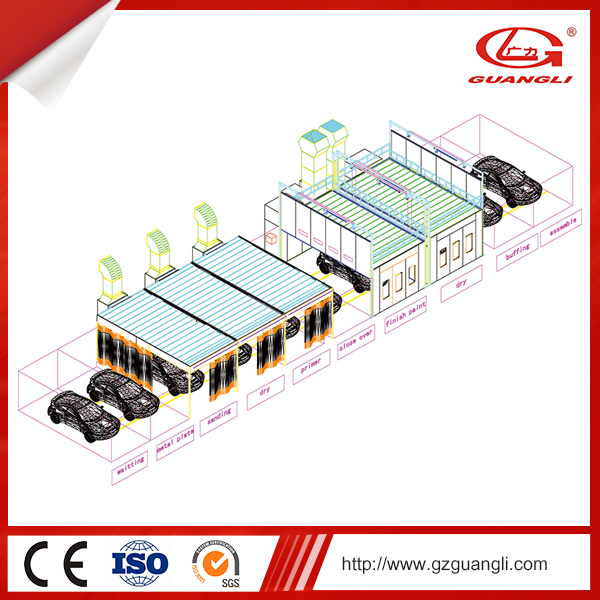

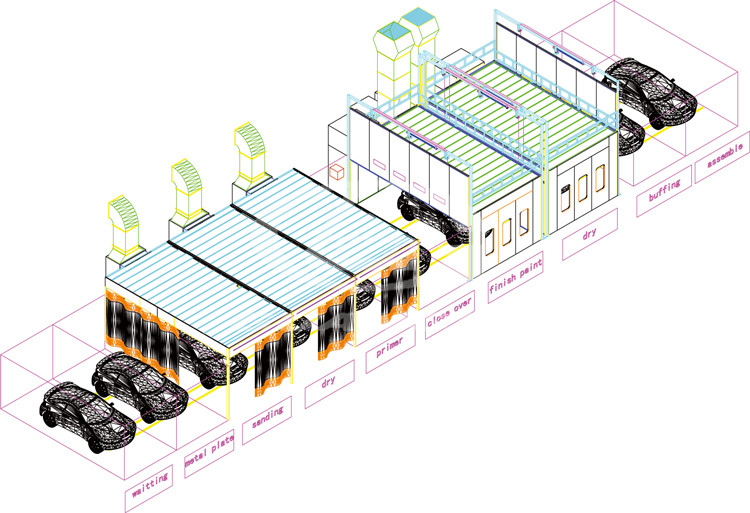

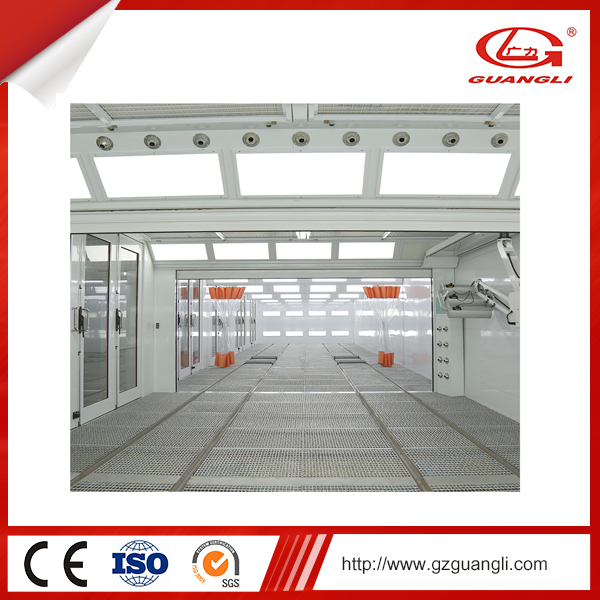

Multi-bays Lines: Prep station + Painting booth + Baking booth + Polishing area
Working process
-

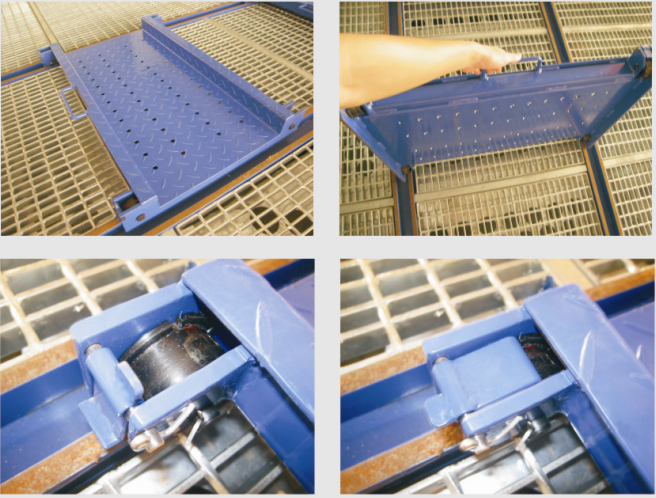

Park the vehicle on the four movable jacks in the waiting area.
-
Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
-
The transition in different areas is realized by moving vehicles along the jacks.
Structure:
-

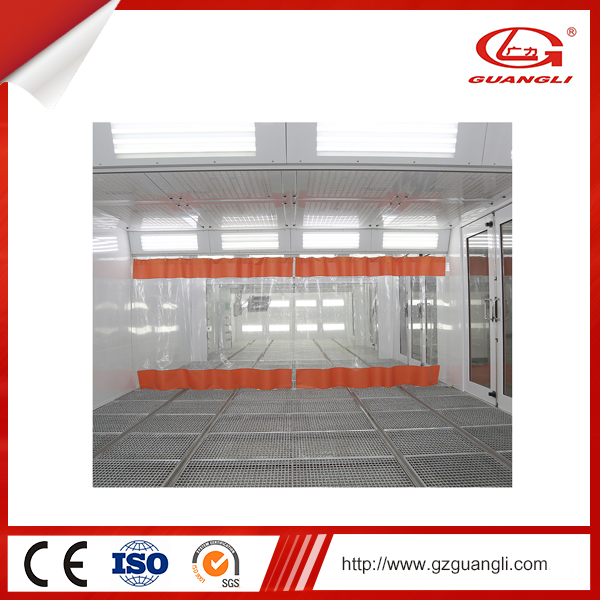

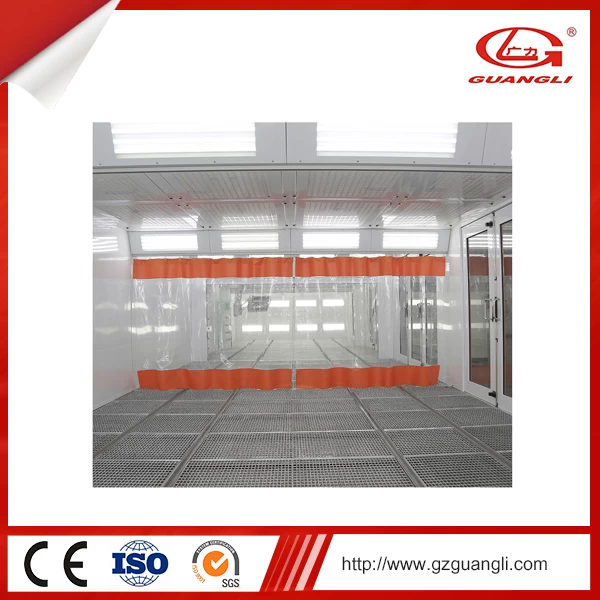

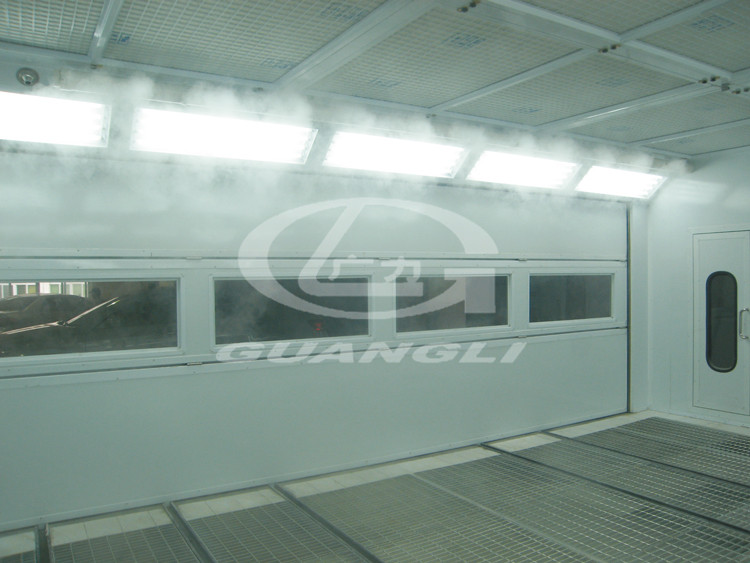

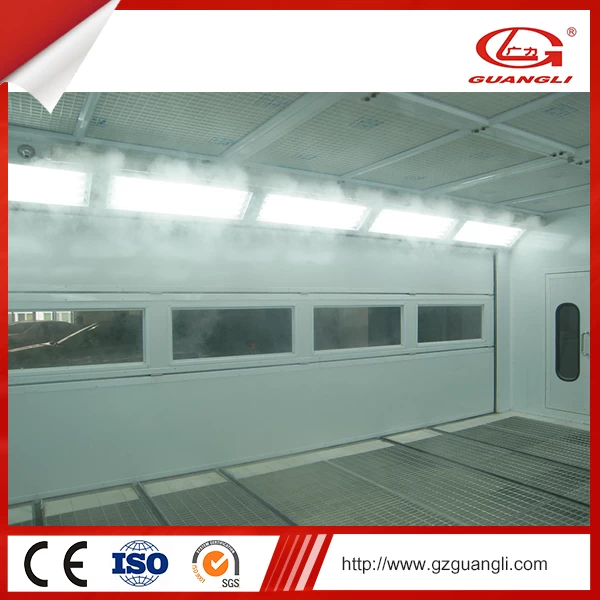

Painting and baking are working separately in this line, vehicle can through from the moving door in side wall.With close curtain at two side of optional prep station.
-

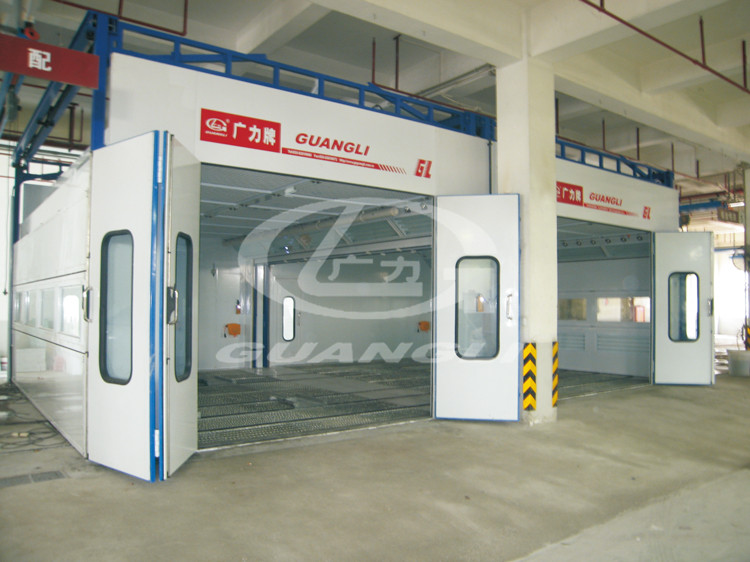

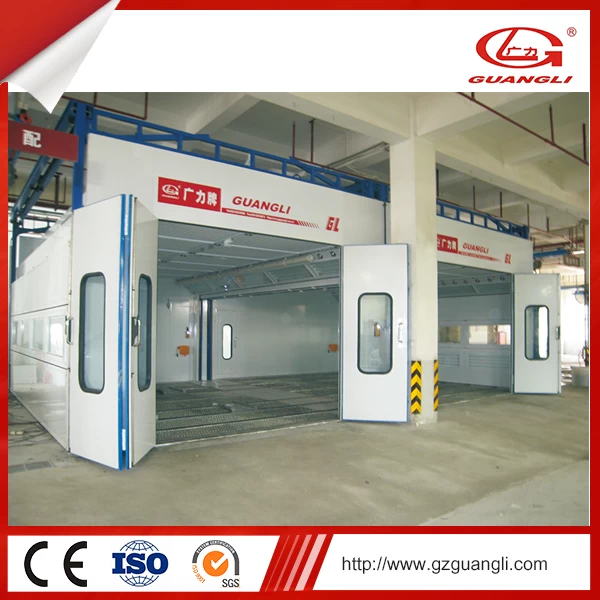

This line consists of painting room, barking room, rails and movable jacks.Prep station and infrared light are for option.
-
Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
-
The transition in different area is realized by moving vehicle along the jacks.
-
Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
-
If specified with vertical suspending door, the height of workshop should be at least 5.8M.
-
A small spray booth can be installed outside the line to the painting and backing for parts.

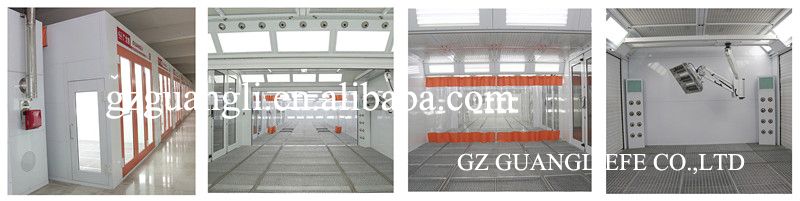

Auto Works Painting Line Show
|
Technical Specifications
|
GL-L4
|
|
Painting line Length(m)
|
36.4
|
|
External Size Internal Size
|
8.3x8.4x5.5
|
|
Painting booth Internal Size
|
6.9x3.9x2.8
|
|
Baking Booth Internal Size
|
6.9x3.9x2.8
|
|
Painting booth Air Flow(m³/h)
|
25000
|
|
Baking Booth Air Flow(m³/h)
|
18000
|
|
Total Power(kw)
|
40
|
|
Standard Movable Jacks(sets)
|
4
|
|
Rail(m)
|
5x36.4
|
Remark:
-
Dry sand, vertical suspend door with exhaust system.
-
The model above are suitable for saloon car, concrete basement made by user.
-
Nonstandard design plan can be made as requirement.
