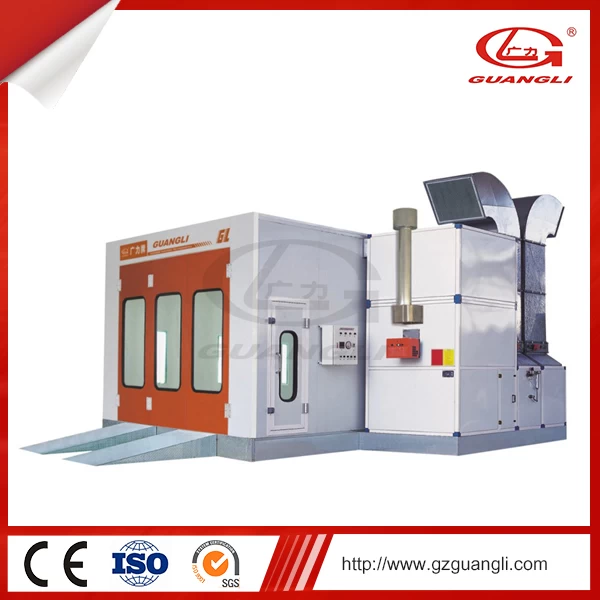

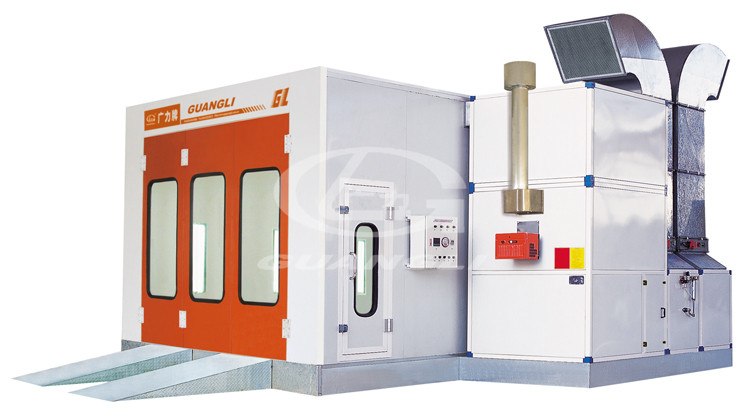

GL7-CE Guangli Manufacturer Supply High Quality Water Paint Car Spray Paint Booth
Water spray Booth features:

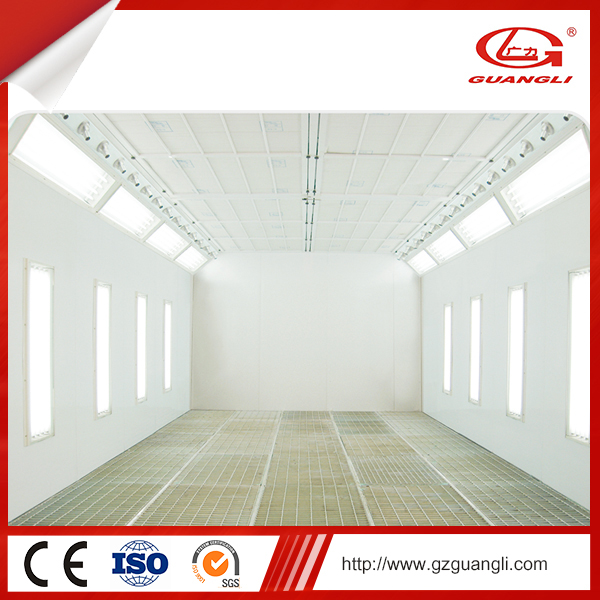

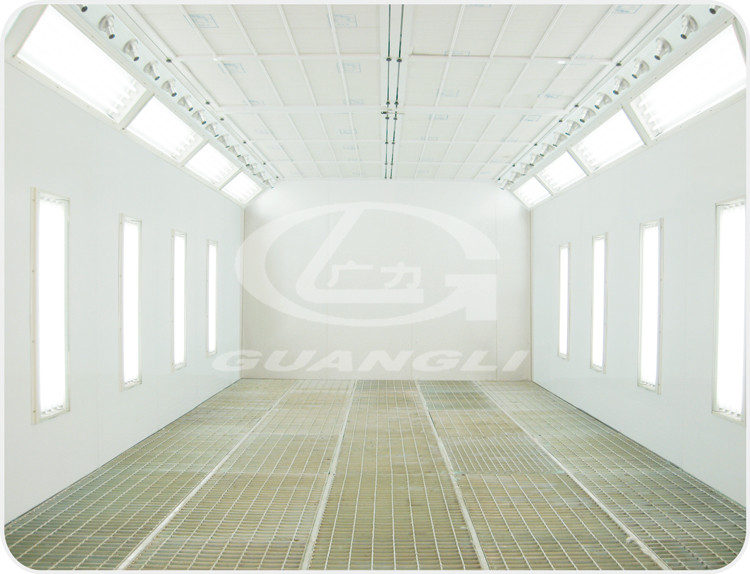

--Body & basement:
Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
Basement: steel structure, full grids,ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
--Fans & ducts:
One 11kw intake fan and one 11kw exhaust fan.
Water soluble paint with hot-air acceleration system: 1set
4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
1 manual VCD exhaust damper, electrical VCD as optional. one pressure meter.
Spraying/baking transition damper, automatically air controlled.
--Heat & filter:
Heat exchanger: stainless steel. RIELLO/ RG5S burner.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
5 pcs of floor filter and 2 pcs of air mouth filter.

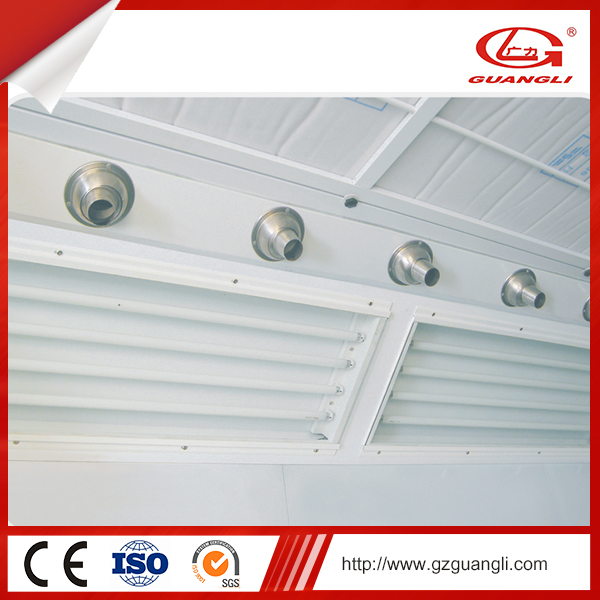

--LED Light & control box:
Upper light: 10 sets, 4*18w per set. side lights: 8sets, 4*18w.
Control box: imported components, overload, overheat, phase-lacking, phase-lacking protection,
engine Y/△ start.
Automatically stop when preset time is up.
Constant temperature spraying.
|
Technical Specifications
|
GL7-CE
|
|
External size(m)(LxWxH)
|
7.0×5.6×4.0
|
|
Internal size(m)(LxWxH)
|
6.9×3.9×2.7
|
|
Door width(m)
|
3.0
|
|
Door height(m)
|
2.66
|
|
Air flow (m3/h)
|
30000
|
|
Inside no-load air speed(m/s)
|
0.3-0.5
|
|
Power (kw)
|
26
|
|
Vehicle suited
|
Saloon car
|
Environmental protection Device
|
As optional
|
Guangli Spray Booth Show
