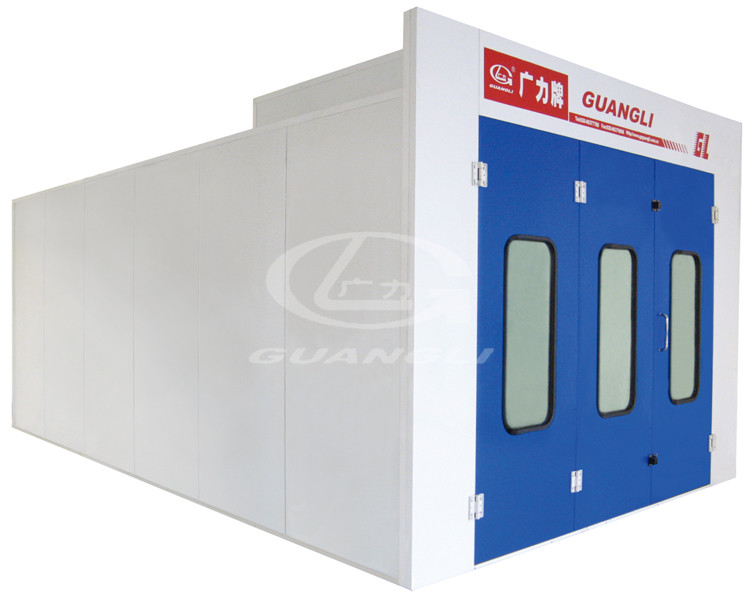

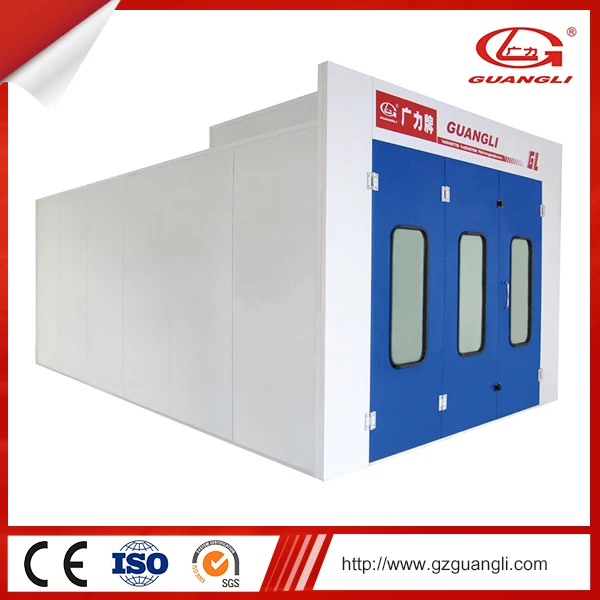

GL1-CE Rear Exhaust Car Spray Paint Booth with Infrared Light
GL1-CE Product Description:
Main room & fans
1) Wall panel: Sandwich style. Thickness: 50mm, polystyrene.( Rock wool available as required.)
2) Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
3) Exhaust fan: 1 unit of 5.5kw single-sided centrifugal fan.
Duct & filter:
1) Exhaust duct: 3m straight ducts, one 90 degree bend, and one 60 degree bend.
2) Filtration: Mounted at the rear wall panel.
3) Roof filter: 2 pcs of filter, mounted above support frame, which is made of steel and powder coated.
Lighting & control system:
1) Upper light: 8 sets, 4*40w per set.
2) Control box: Components made in China, overload, overheat, phase-lacking protection, straight driven motor.

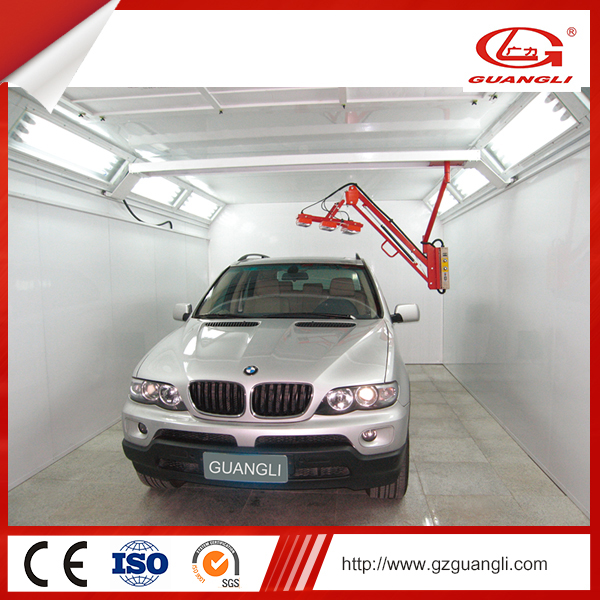

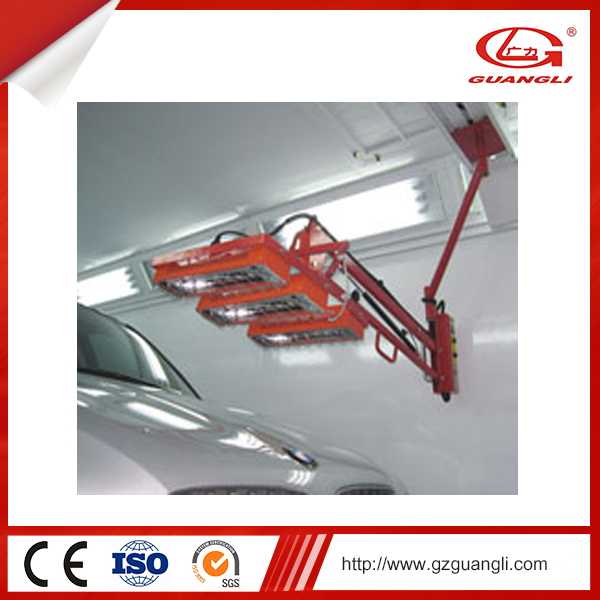

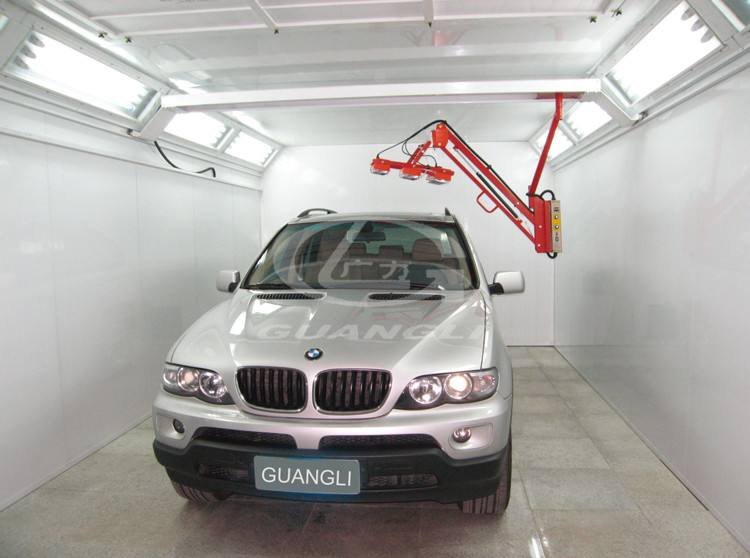

3) Remark: directional movable infrared light as optional.
Specifications:
|
Model
|
GL1-CE
|
External size (m)(LxWxH)
|
8.1x4.0x3.2
|
Internal size (m)(LxWxH)
|
6.9x3.9x2.7
|
Entrance Width(m)
|
3.0
|
Entrance Height(m)
|
2.66
|
|
Air flow(m3/h)
|
18000
|
Air velocity (m/s)
|
0.25-0.30
|
Power (kw)
|
7
|
Remark
|
Exhaust fan is installed rear the spray booth.
|
|
Suitable
|
Car
|
