GuangLi Car Lifts:

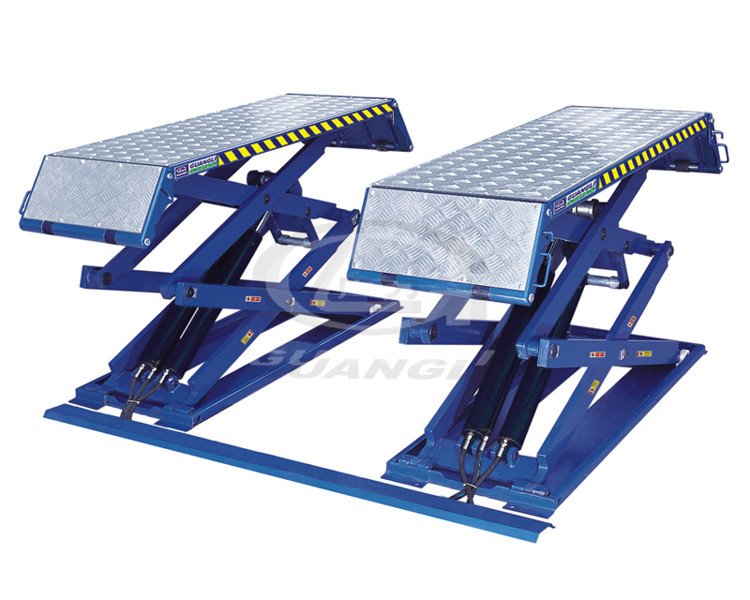

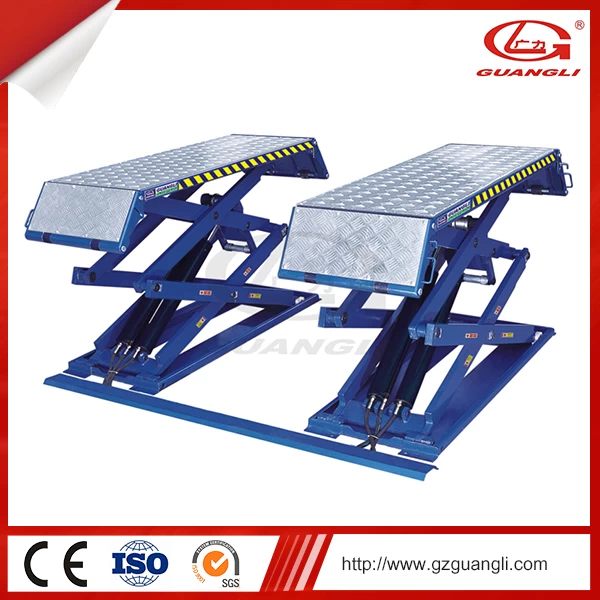

GL1004 Thin Scissors Lift Feartures:
Hydraulic self lock safety system
Lift heigh is adjustable from 115mm-1870mm

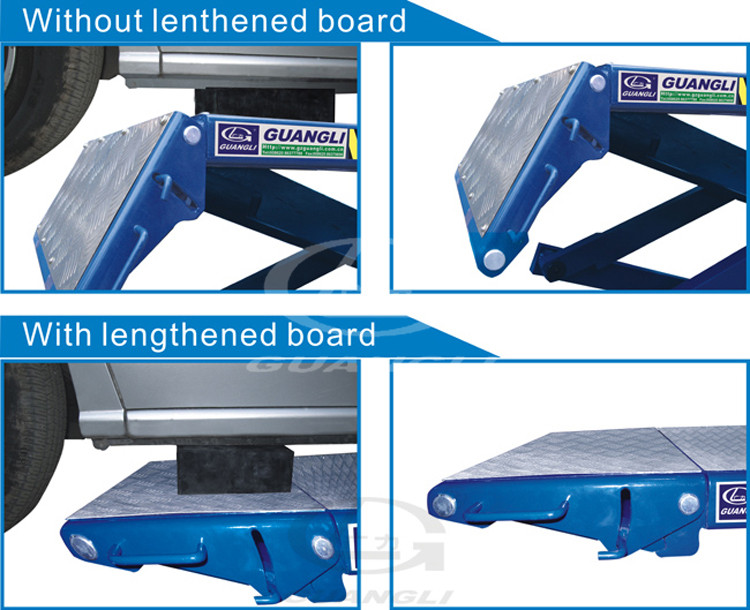

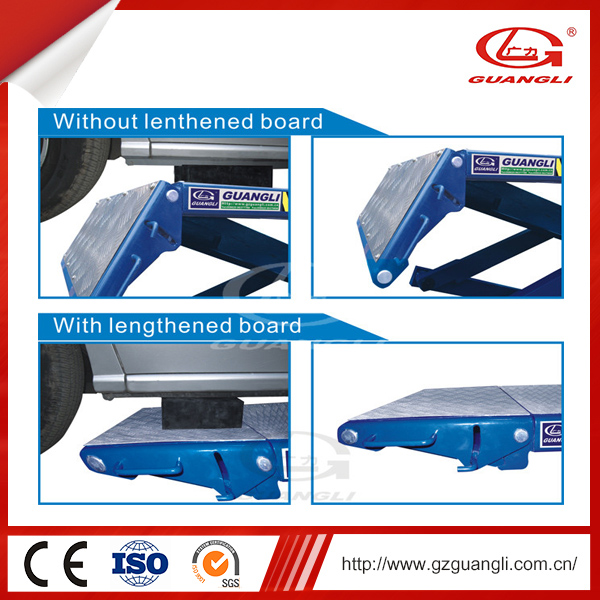

The lengthen board can be used for ramp and loading
The work platform is adjustable from 1440mm-2020mm
Double parallel connection cylinder, it is synchronized by adjustment
Lift is super thin, the original height is 115mm, no need for hiding basement
Standard: Chinese pump and 380V motor; option: Import pump or 220V motor.

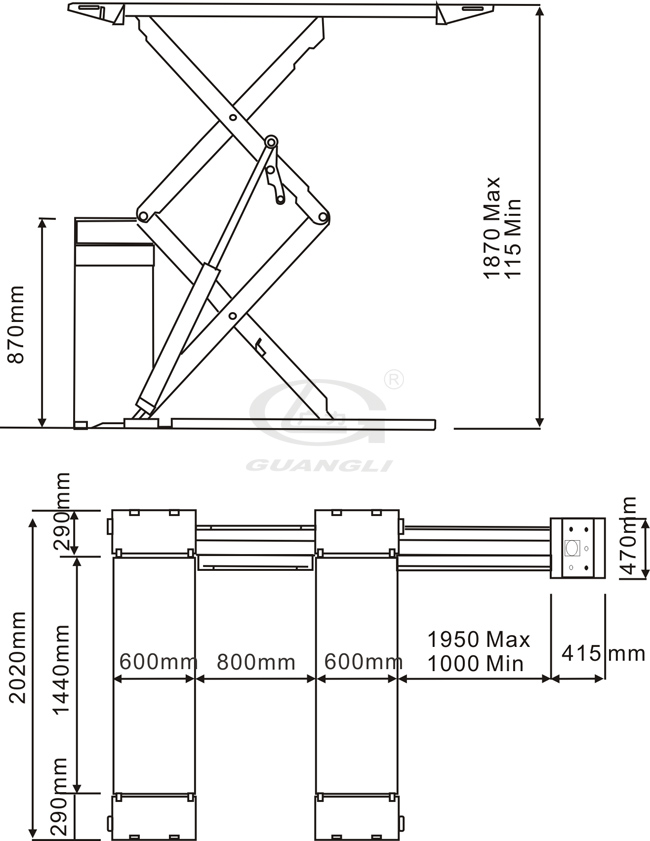

Vehicle Lift Technical Specifications
Lifting weight(Kg) 3000
Lifting height(mm) 115-1870
Pneumatic 6-8Kg/cm2
Voltage(V) 380
Motor power(Kw) 2.2
