GuangLi Car Lift:

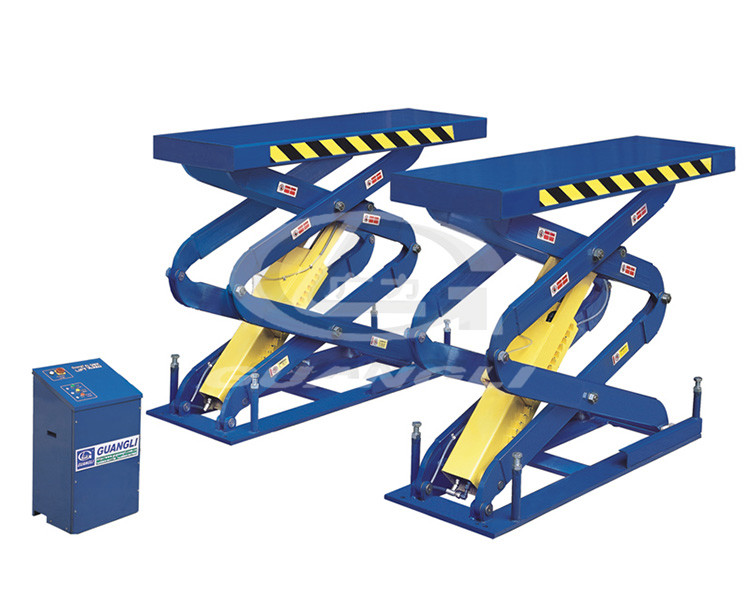

GL3000A Small Car Scissors Lift Features:
Automatic pneumatic lock system.
Standard: Import pump, voltage:380V,
Option: Chinese pump or 220V motor.
Hide installation, Less space occupy.
Import hydraulic pump, reassuring running.

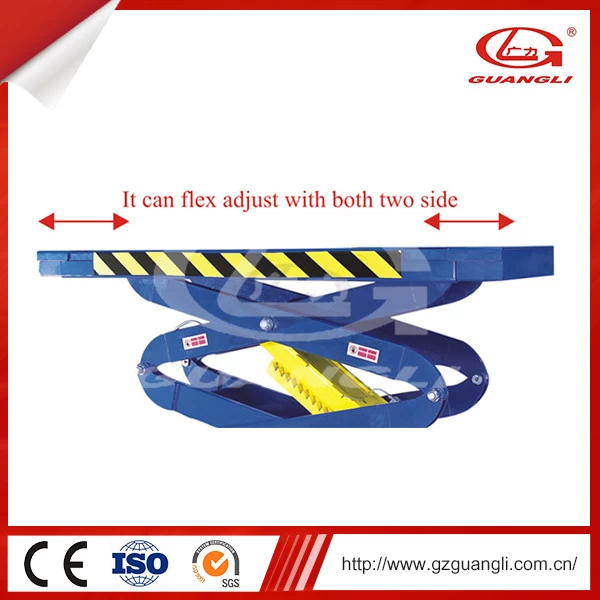

Platform length adjust from 1550mm to 1820 mm, suit for all kinds of car.
Technical Specifications
Lifting weight(Kg) 3000
Lifting height(mm) 330-2000
Pneumatic 6-8Kg/cm2
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Imported pumb

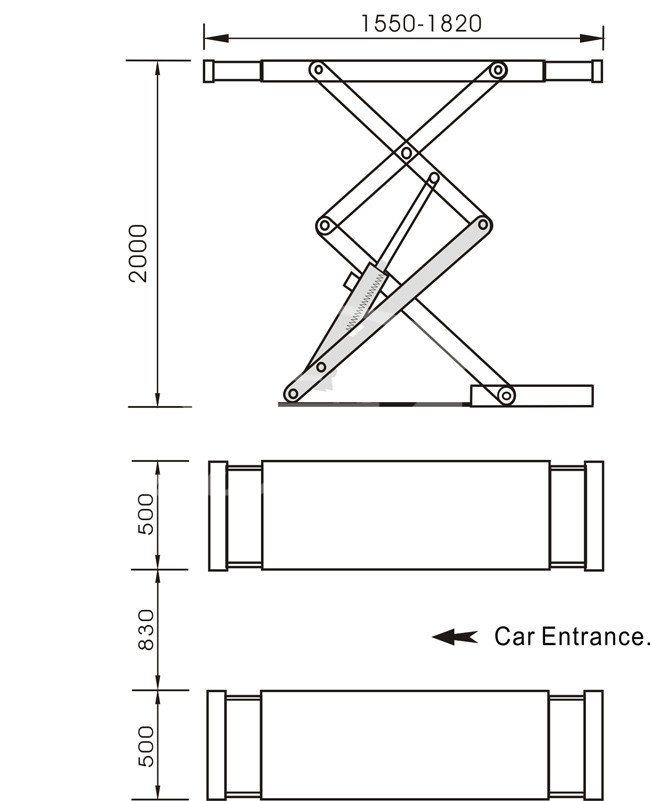

Outline Drawing (unit:mm)

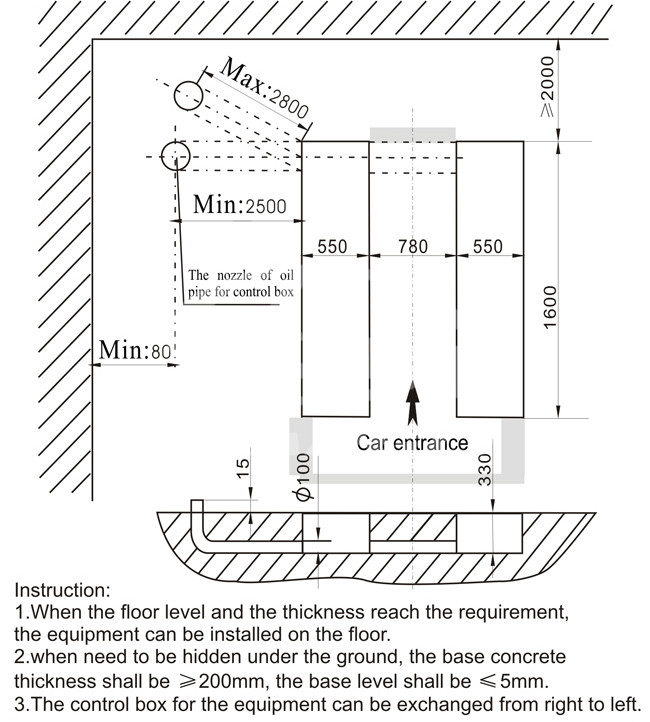

3000A Scissor lift Outline Drawing for Secondary Lifting Carriage (unit :mm)
