Guangli Car Lifts:

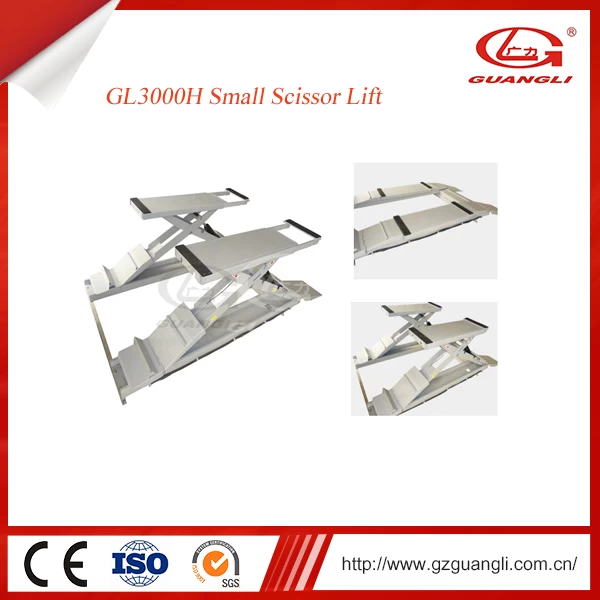

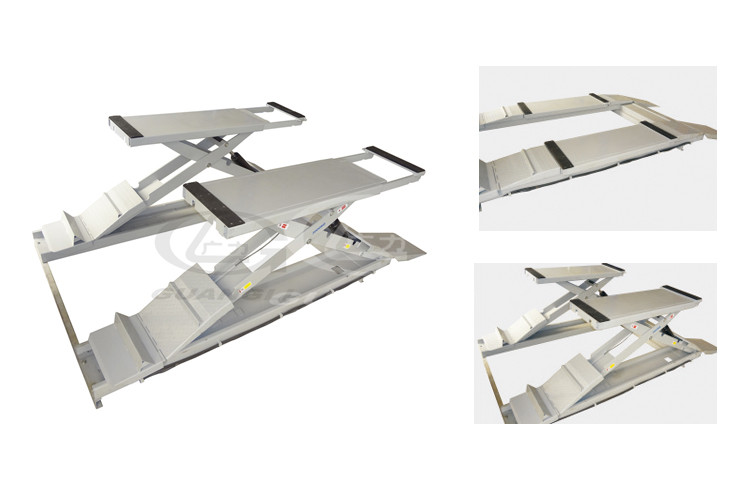

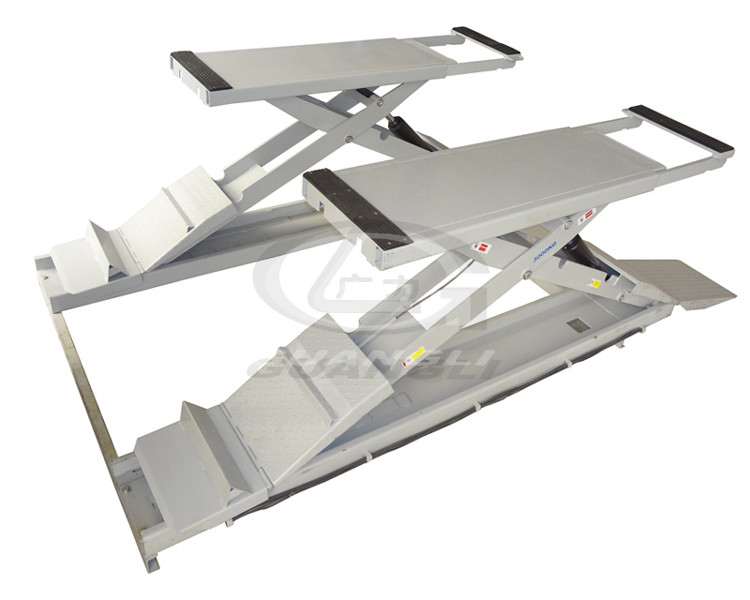

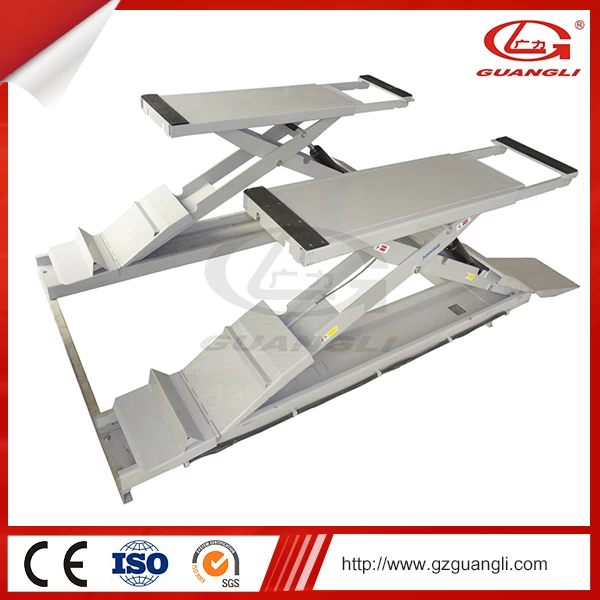

GL3000H Small Scissors Lift Features:
Hydraulic power-driven
Safety of machinery - insurance institutions
Ultra-thin style, installed directly on the ground's surface
The length for the bridge can be adjusted between 1450mm-1955mm;
Rigid connection between the two bridge decks, to ensure the synchronization of the movements
The standard configuration with motor's voltage as 380V; But its option voltage also can be as 220 V
Technical Specifications:
Lifting weight(Kg) 3000
Lifting height(mm) 190-1800
Pneumatic 6-8Kg/cm2
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Remark Imported pumb

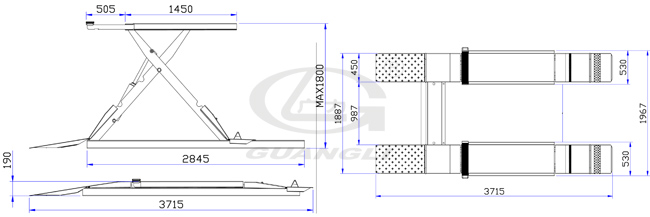

Scissor lift Outline drawing (unit:mm)
