GuangLi Car Lifts:
GL3500 Professional Scissors with The secondary scissor lift Features:
Save floor space directly.

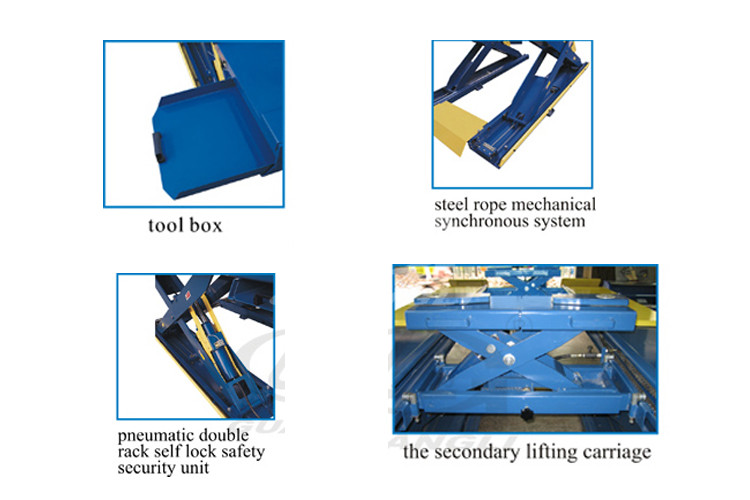

Two the secondary scissor lift for wheel free operations.
Double air and mechanical locks for double lift safety.
Front sliding work tables for holding wheel service tool.
Standard: Chinese pump; option: Import pump or 220V.
Mechanical torsion bar design for synchronization lifting and safety.

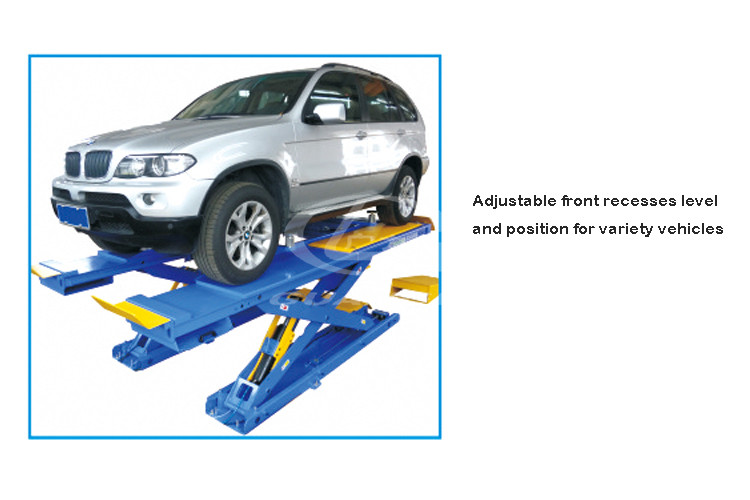

Adjustable front recesses level and position for variety vehicles and turntable design.
Technical Specifications
Main Lifting weight(Kg) 3500
Main Lifting height(mm) 310-1780
Secondary lifting weight(Kg) 2000
Secondary lifting height(mm) 500
Pneumatic 6-8Kg/cm2
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2

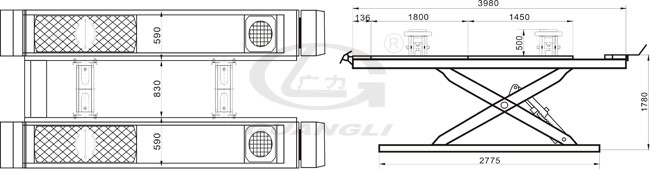

Outline Drawing (unit:mm)

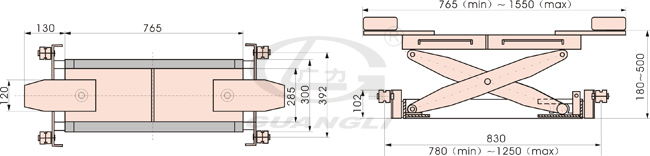

Outline Drawing for Secondary Lifting Carriage (unit :mm)
