Guangli Car Lifts:

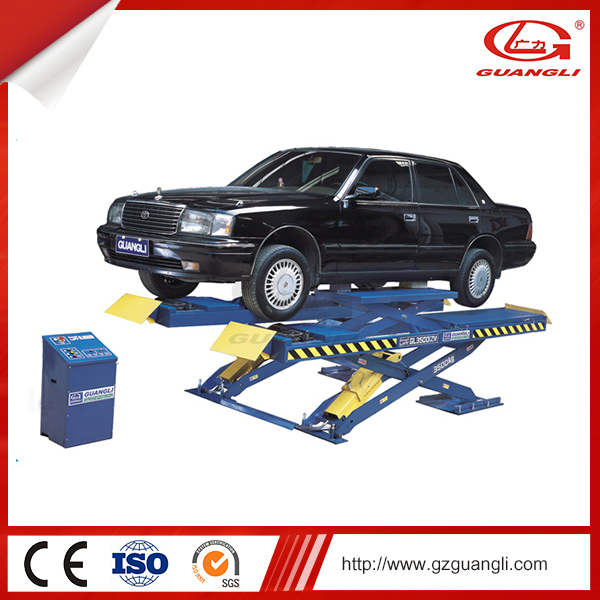

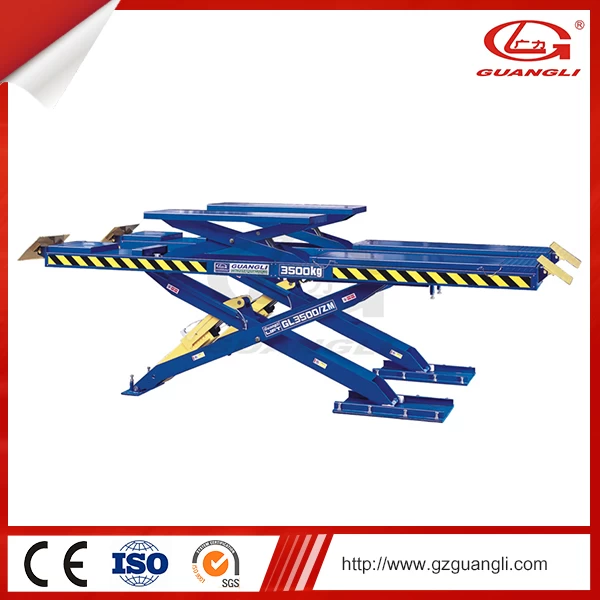

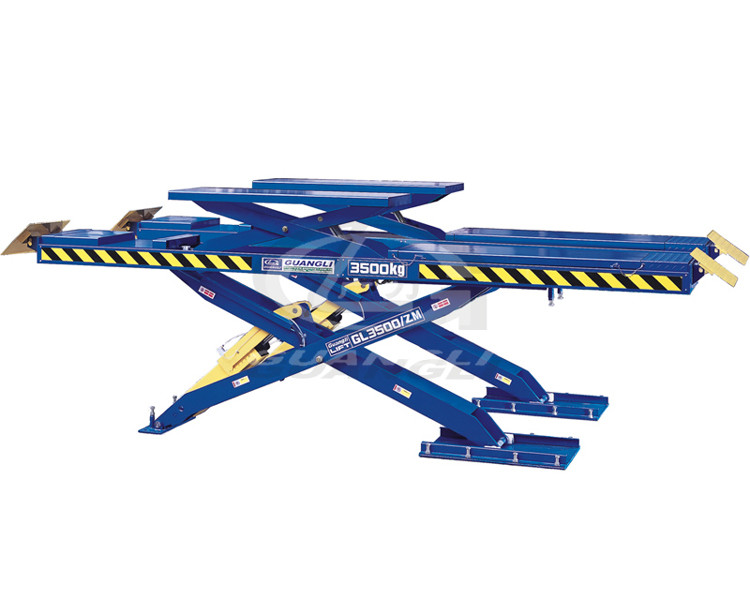

Gl3500/ZM Double Platform Scissor Lift For Four-wheel Alignment:

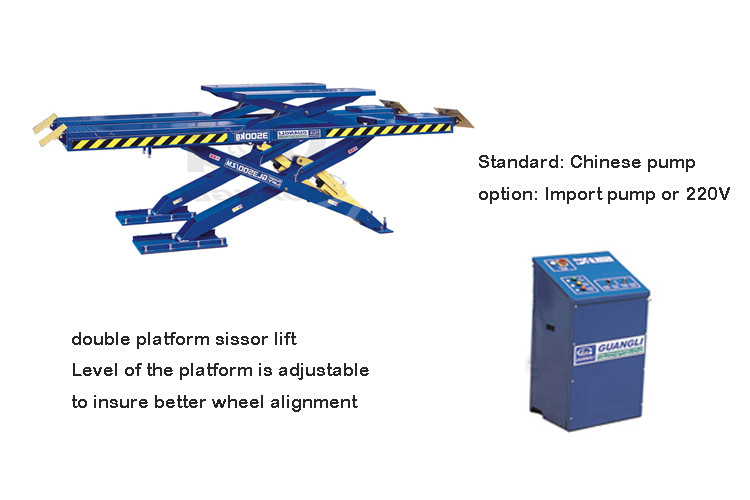

Hydraulic synchronized, double platform sissor lift
Pneumatic double mechanical gear lock safety system
Front turnplate is adjustable, suit for wheel alignment
Standard: Chinese pump; option: Import pump or 220V.
Level of the platform is adjustable,to insure better wheel alignment
Large car scissor lift Technical Specifications:
Main Lifting weight(Kg) 3500
Main Lifting height(mm) 330-1800
Secondary lifting weight(Kg) 2000
Secondary lifting height(mm) 410
Pneumatic 6-8Kg/cm2
Voltage(V) 380
Frequency(Hz) 50
Motor power(Kw) 2.2
Equipment weight(Kg) 1600

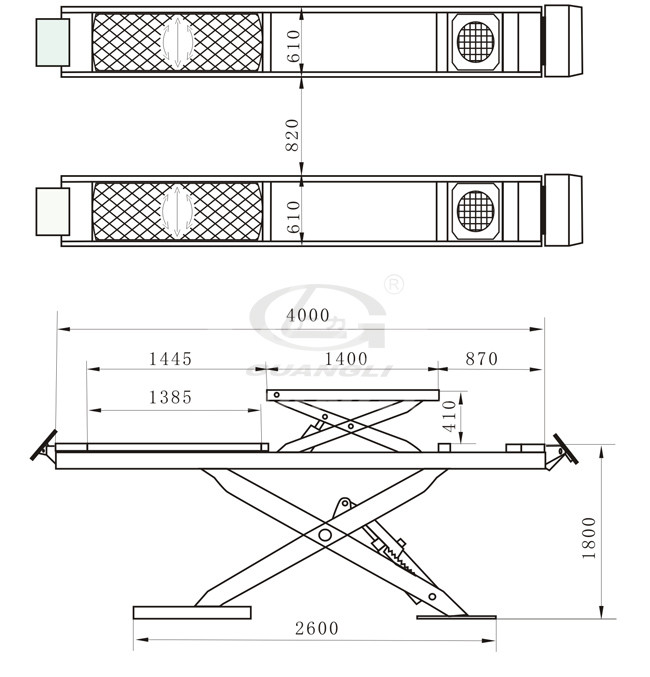

Outline drawing (unit:mm)

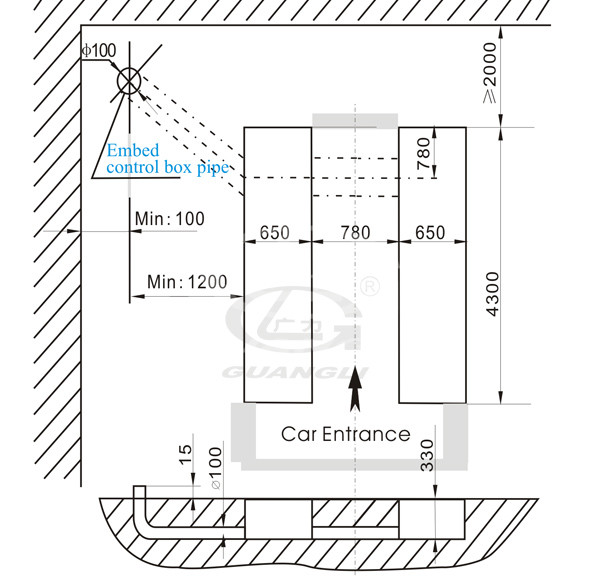

Foundation Drawing (Unit:mm)
Instruction
1、The control box for the equipment can be exchanged from right to left
2、When the floor level and the thickness reach the requirement, the equipment can be installed on the floor
3、When need to be hidden under the ground , the base concrete thickness shall be ≥200mm, the base level shall be ≤ 5mm
