Professional Factory Supply Automotive Industrial Car Spray Paint Booth
GL4-CE Spray Booth Feature:
Main room & basement:
-1. Wall panel :sandwich style,δ=50mm,Rock wool.(Polystyrene is optional)
-2. Basement:steel structure,full grids.
-3. Ramp: 2 pieces of grids.
-4. Door:3 pieces of front door without aluminum side cover.1 piece of emergency door with pressure lock.
Fans & Ducts:
-1. One 7.5 kw intake fan and one 7.5 kw exhaust fan.
-2. 4 meters straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
-3. 1 manual VCD exhaust damper,electrical VCD as optional.One pressure meter.
-4. Spraying/baking transition damper,automatically air controlled.
Heat & Filter system:
-1. Heat ex-changer: stainless steel. Riello G20 Burner.
-2. Roof filter:6 pieces of filter,mounted above support frame,which is made of steel and powder coated.
-3. 5 pieces of floor filter and 2 pieces of air mouth filter.
Light & control box:
-1. Upper light: 10 sets, 4*18w per set.side lights: 8 sets, 4*18w. LED
-2. Control box:imported components,overload,overheat,phase-lacking,phase-locking protection,engine Y/△ start.
-3. Automatically stop when preset time is up.
-4. Constant temperature spraying.
-5. Environmental filter:the equipment can be adopted M style activated carbon or drawer style activated carbon as optional.
Specifications:
|
Model
|
GL4-CE
|
|
External size (m)(LxWxH)
|
7.0x5.3x3.5
|
|
Internal size (m)(LxWxH)
|
6.9x3.9x2.7
|
|
Entrance Width(m)
|
3.0
|
|
Entrance Height(m)
|
2.66
|
|
Fan capacity( m 3 /h )
|
24000
|
|
Air velocity (m/s)
|
0.3-0.35
|
|
Drying Temperature
|
60-80
|
|
Oil consumption (L/unit)
|
6-8
|
|
Water-based Device
|
As option
|
|
Power (kw)
|
18
|
|
Suitable Automobile Type
|
Saloon Car
|

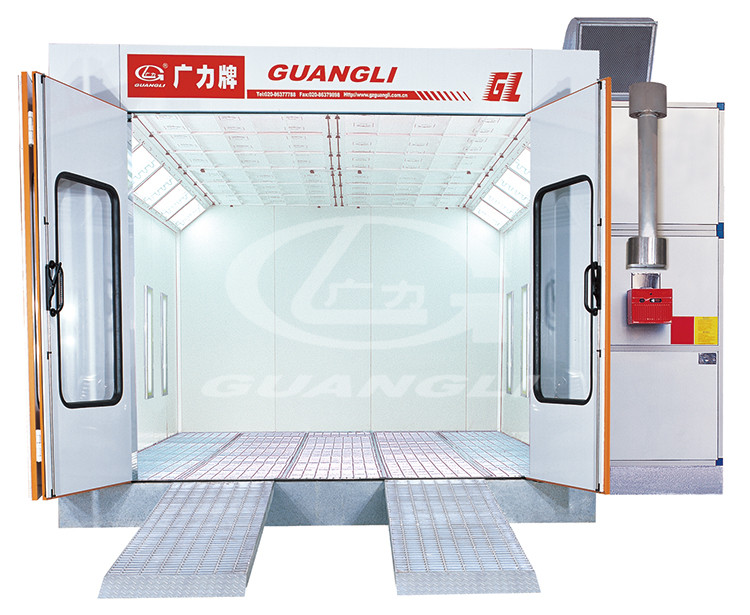

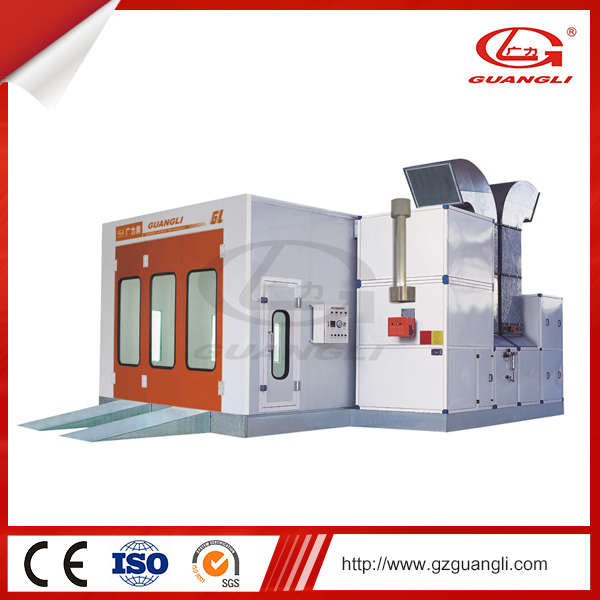

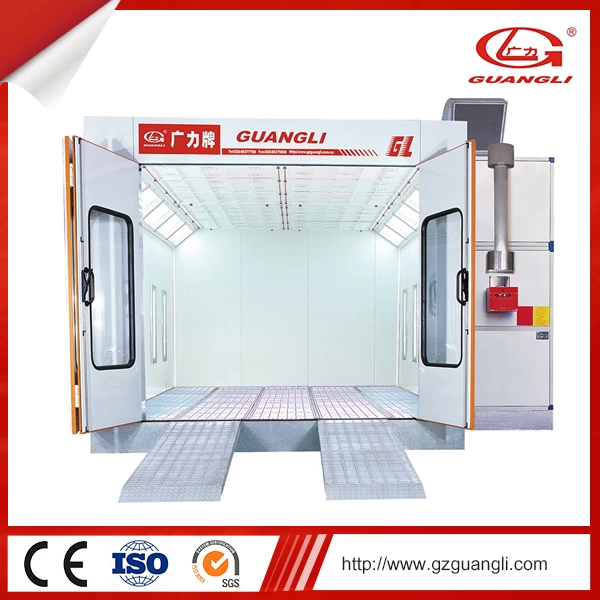

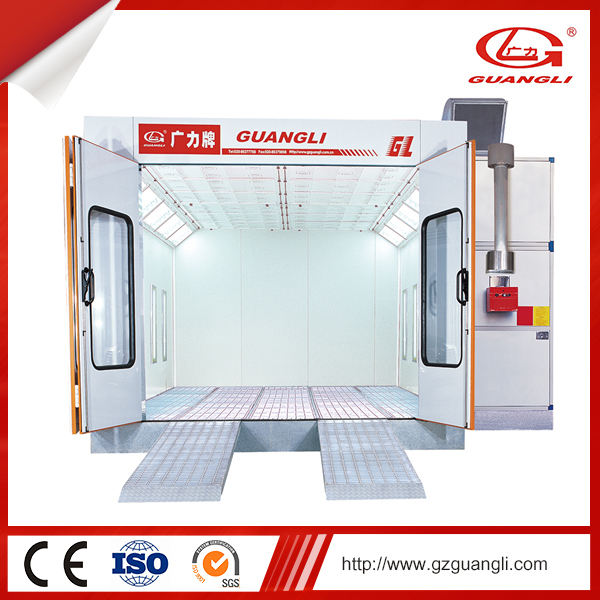

GL4-CE Spray Booth Show

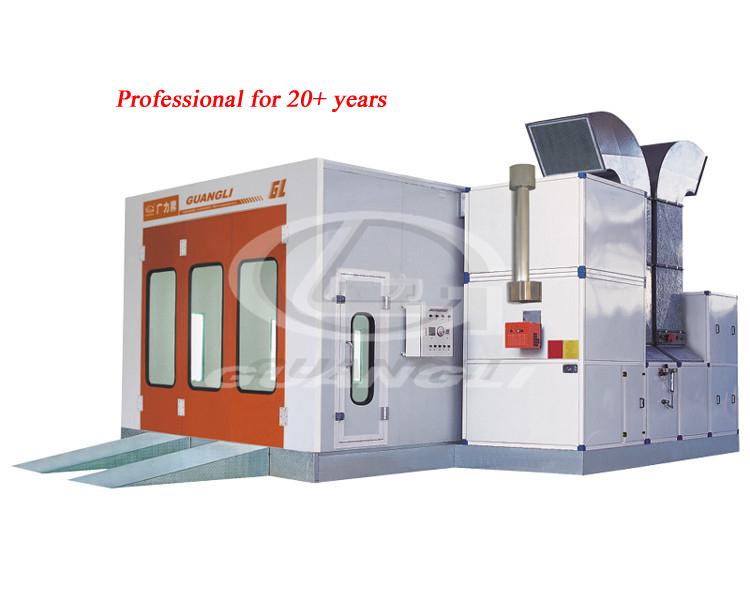

Real Case
