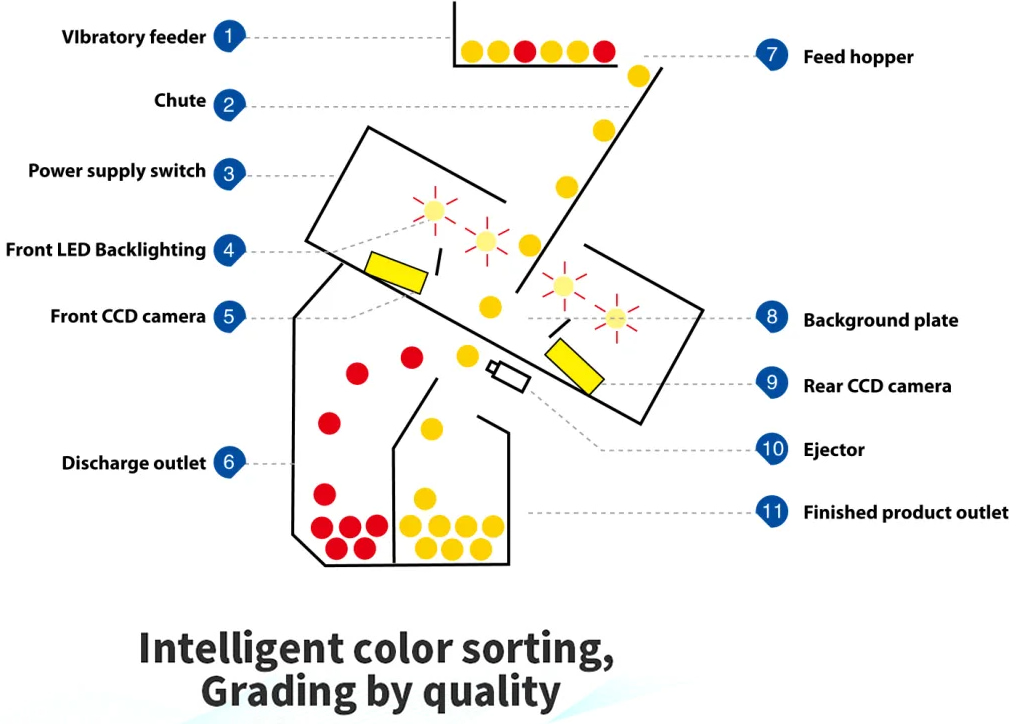

Color Sorting Machine Working Principle
Color sorter is a machine that uses cameras and sensors to detect the color of objects. The objects are then sorted according to their color.
This is done by using a combination of light sources, optical filters, and image processing algorithms.
The light source illuminates the object and the optical filter allows only certain wavelengths of light to pass through.
This filtered light is then detected by an array of cameras which capture images of the object.
These images are then processed by an algorithm which determines the color of the object and sorts it accordingly.
| Model (Item Number) |
6SXBD–128（CCD） |
6SXBD–256（CCD） |
6SXBD-384 (CCD)
|
| No. Of Channels |
128 |
256 |
384 |
| Outline Dimentions(L*W*H)ММ |
1360×1710×1550 |
1960×1710×1550
|
2560×1710×1550
|
| Net Weight(kg) |
720 |
950 |
1450 |
| Power Consumption(kw) |
1.4 |
2.0 |
3.2 |
| Sorting Accuracy |
>99.99% |
>99.99%
|
>99.99%
|
| Compressed Air Consumption(L/min) |
1500-3000 |
2500-4500 |
4000-7500 |
| Capacity(kg/h) |
6000-7500 |
12000-15000 |
18000-22500 |
| Air Pressure (MPa) |
0.6-0.8
|
0.6-0.8 |
0.6-0.8 |
Main Features
1. HD RECOGNITION SYSTEM
High-speed super definition full color 5400*3CCD sensor, using the ultimate 0.1mm resolution to achieve the ultimate selection Imported large-capacity high-speed professional image processing chip, glass sorting accuracy is higher, processing capacity is stronger.
2.VISUAL RECOGNITION ALGORITHM

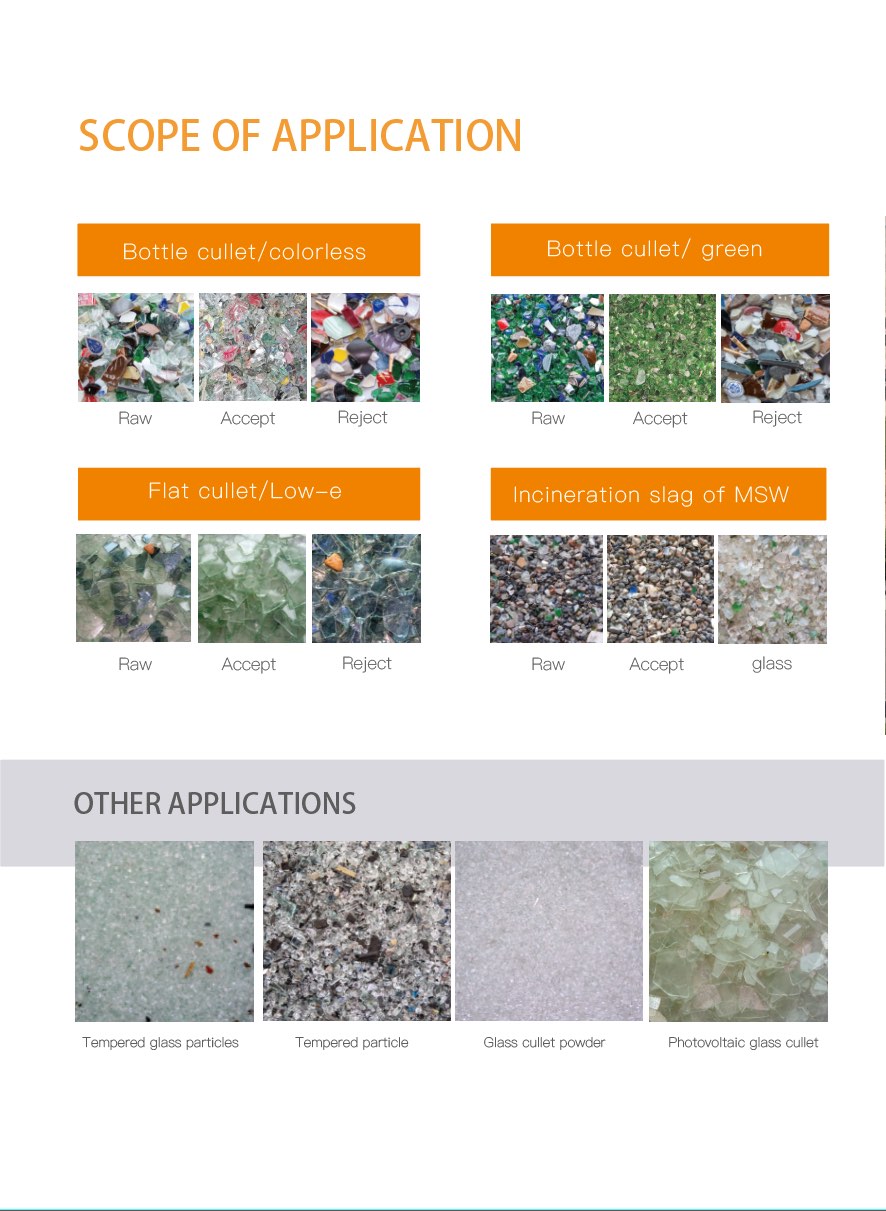

Adopting top-notch visual recognition algorithm, it can realize the arbitrary selection of various glasses various materials. At the same time, it can store more than 100 color selection modes to meet various needs of customers
3.MAGNETIC SUSPENSION SOLENOID VALVE The magnetic suspension solenoid valve specially designed for SEE glass color sorter has bigger air flow,higher frequency, lower power consumption and longer life.
4.INTELLIGENT ALARM SYSTEM Built-in alarm system to realize automatic alarm, smart and safer.
5.SOFTWARE OPERATING SYSTEM Large screen size, high-definition sensitive touch screen Linux operating system, the system is more stable, friendly human-computer interaction interface, one-key startup, simpler operation
6.SPECIAL STEEL PLATE CHUTE Special steel plate chute is used to reduce friction and increase the sliding speed of the
chute, and reduce the wear of different sharp and high-hardness materials
1.Who are we and why choose us?
We are Anhui Vsee Photoelectric Technology Co., Ltd. Our color sorter brand has a history of more than ten years, the market is all over the world, and the quality and service are guaranteed.
2.How to operate the machine overseas after purchase?
We will provide online teaching, and our engineers will guide online until the machine is debugged to customer satisfaction,and our engineers will guide you until you can operate the machine proficiently.
3.What is the warranty period and what if the machine breaks down?
We have a one-year warranty period, and the machine failure will be specially solved by engineers.
4. Can you supply the air compressor, air tank,air dryer and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air dryer,air tankand filters.
5.What payment methods do you support?
T/T and L/C are the best.
