Glass magnesium&rock wool purification board
Glass magnesium sandwich panel is processed by special production process. It has the characteristics of fire prevention, waterproof, tasteless, non-toxic, non freezing, non-corrosive, non cracking, invariable, non combustible, high strength, light weight, convenient construction and long service life.Glass magnesium plate has good fire resistance. It is a non combustible plate. The continuous combustion time of flame is zero. It does not burn at 800 ℃ and has no flame at 1200 ℃, reaching the highest fire resistance and non combustion level A1.
Product Specification
|
Panel effective width[mm]
|
950-1150
|
|
Cladding thickness[mm]
|
0.4--0.8
|
|
Material of cladding
|
Galvanized sheet, stainless steel
|
|
Core
|
Rock wool(1piece)&Glass magnesium (2pieces)
|
|
Core thickness[mm]
|
Customized
|
|
Panel thickness[mm]
|
40-200
|
|
weight[kg/m2]
|
22
|
|
Uniformly distributed bearing gravity[kg/m2]
|
200
|
|
Fire resistant level
|
A1
|
|
Color
|
Customized
|
|
Panel length
|
20FT,5.95m/40FT,11.95m
|
Production process
The glass magnesium rock wool sandwich board is made of high-quality color coated steel plate as the surface layer, galvanized steel strip as the edge sealing part and stiffener, moisture-proof glass magnesium plate as the core material, following strict processing technology and through pressurization, heating, bonding and other processes. It is characterized by good sealing and high fire rating.
Features
1.fire prevention
2.waterproof
3.Tasteless and non-toxic
4.No frost crack
5.Do not rot
6.Non combustion
7.High strength and light weight
8.Convenient construction
9.Long service life
Application
Glass magnesium sandwich board is a composite board made of color coated board, stainless steel and other materials as surface materials, which has unique dust-proof, anti-static, antibacterial and other effects. It is widely used in clean engineering fields with strict requirements for indoor environment, such as electronics, pharmacy, food, biology, aerospace, precision instrument manufacturing and scientific research.

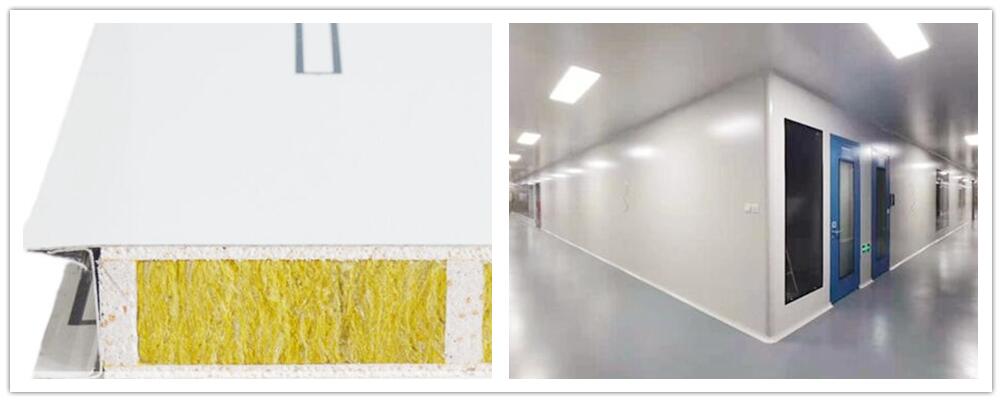

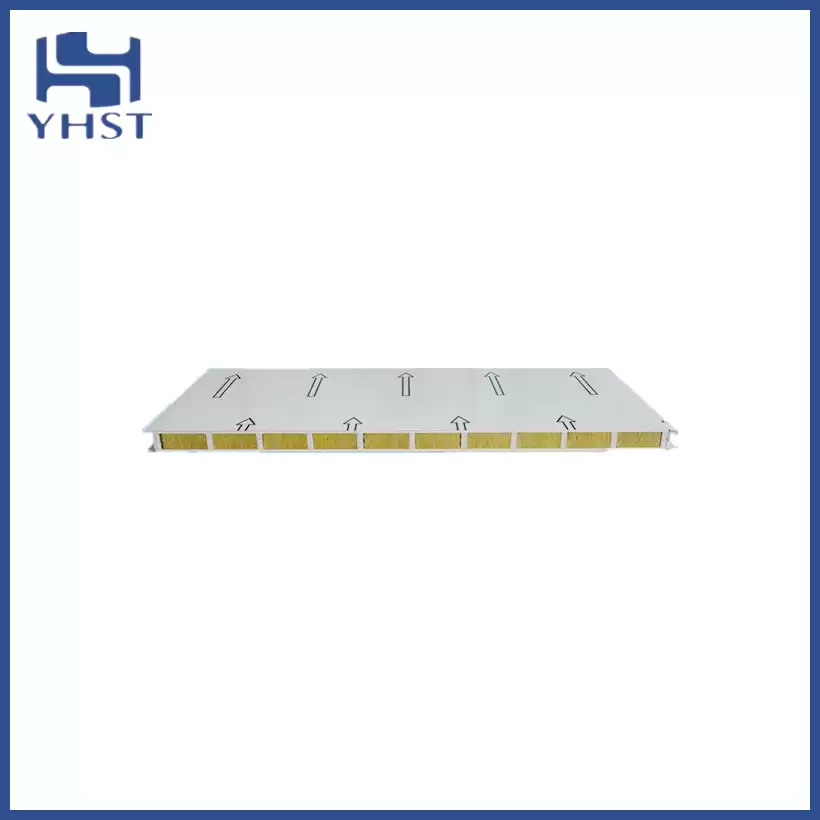

Product display
Packing & Delivery
◆Packing:
Seaworthy packing standards:
PVC on both sides to protect the roof panel ends;
Packed with paper to protect the panel ends;
Put EPS foam on the each space to keep the panel from squeezing each other.
If you have special requirements,please feel free to discuss with us.
This is to make us improved and protect your goods well.
◆Delivery:
Delivery time for regular colors,coating types and thickness:7-10 days;
Delivery time for special colors,coating types and thickness:20-30 days;
Delivery terms:FOB/CIF/CFR/DDP is available;
We can find good forwarder for customer or accept appointed forwarder from customers.
