Processing parameters:
Raw material length range: 100-3500MM (can be customized)
Raw material cutting diameter: Φ30MM-Φ600MM (can be customized)
Length of product after cutting: 10MM-1650MM (can be customized)
Raw material pipe wall diameter: 1 mm or more
Machining accuracy: ≤0.2MM (Φ30MM-Φ200MM)
≤0.4MM (Φ200MM-Φ400MM)
≤0.5MM (Φ400MM-Φ600MM)

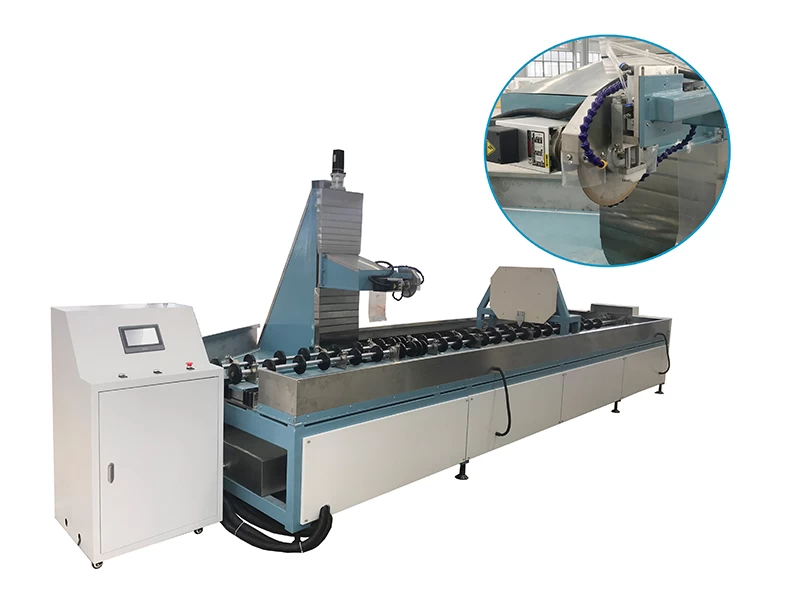

The main components of the equipment:
Mechanical part
Feeding module---transfer module---Optional rotary module---cutting module---discharge module.
Electronic control part
1. separate electric control cabinet, placed outside the machine (not reflected in the layout)
2. HMI (Human Machine Interface)
PLC self programming
