Features:
* Material: stainless steel 304,316,201
* Thickness: 1.5mm,2.0mm
* Dimension:1200mm x 1200mm x 400mm
* Door: double- door
* Spare parts: back mounting plate, lock, hinge, nut, bolt, hand rings
* Surface treatment: Polishing, brushing
* Installation: indoor floor, bolted assembly
* Function: Power control switch cabinet
* Certificate:IP65, CE
* Working environment: air port, building, hotel, shopping centre, housing estate, school,
Factory, port
|
Item Name:
|

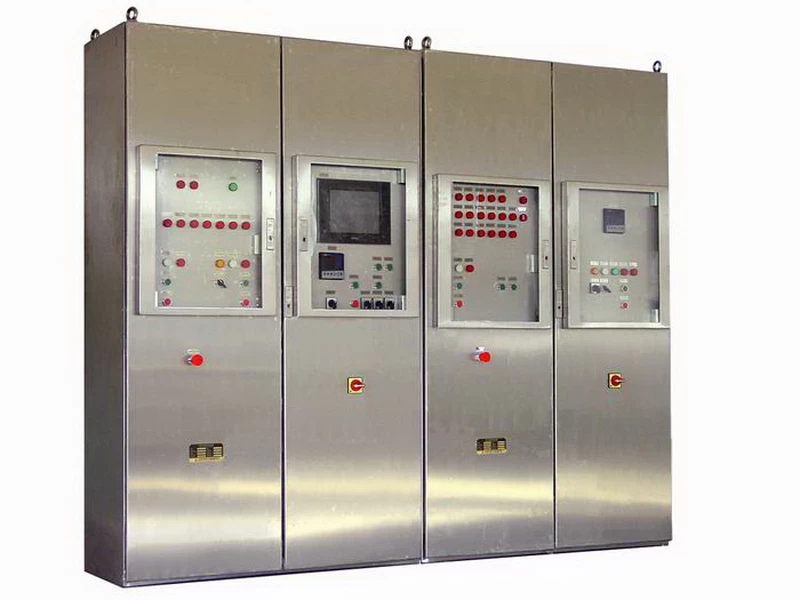

outdoor stainless steel cabinet
|
|
|
Material:
|
SUS304(Other material can be optional)
|
|
|
Thickness:
|
Frame:9-fold Sections 1.5mm Door Plate:2.0mm Back Plate and Side Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)
|
|
|
|
|
Standard Configuration:
|
Front Door, Back Plate, Mounting Plate, Cabinet Body, Door Lock, Sealing Strip, Side Plate(optional)
|
|
|
|
|
Surface Treatment:
|
Wire Drawing, Mounting Plate is Galvanized
|
|
|
|
|
|
|
Class of Protection:
|
IP54(According to GB4205-1993)
|
|
|
|
|
MOQ:
|
100 PCS
|
|
|
Supply Ability:
|
10000 PCS/Month
|
|
|
Delivery Time:
|
10-15 days
|
|
|
Remark:
|
Special Demands Can Be Customized
|
|
Main advantage of BPS outdoor stainless steel cabinet :
Combined electric cabinet, suitable for combination.
2. The top plate can be removable and the side plate is demountable, make working easier and simpler.
3. High door plate (approx 25mm from the ground), to ensure smooth door opening.
4. Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.
5. Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
6. Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
7. Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.
Specifications:
|
Model Number
|
Enclosure Dimensions
|
Mounting plate dimensions
|
|
0001-ECPB-TCH
|
600 ×800 ×300
|
550 × 750
|
|
0002-ECPB-TCH
|
800 ×800 ×300
|
750 × 750
|
|
0003-ECPB-TCH
|
800 ×1000 ×300
|
750 ×950
|
|
0004-ECPB-TCH
|
800 ×1200 ×300
|
750 × 1150
|
|
0005-ECPB-TCH
|
800 ×1200 ×400
|
750 × 1150
|
|
0006-ECPB-TCH
|
1200 ×1200 ×400
|
1150 × 1150
|
|
0007-ECPB-TCH
|
800 ×1400 ×400
|
750 × 1150
|
