Indoor electric Control switch Boxes, Switch Button Boxes
Specifications
1. Material: AISI 304L or 316L stainless steel
2. Certificate:CE,TUV,IEC,IP66.SGS,ROHS
stainless steel cabinet/Stainless Steel box /stainless steel sheet electrical panel ip66 specifications:
Material:
AISI 304L or 316L stainless steel
Enclosure:1.2mm-1.5mm
Door: 1.2mm-1.5mm
Mounting plate:2.0mm
Surface finish:
Enclosure and door: AISI304L or AISI316L
Mounting plate:Zinc-plated
Protection:
Protection degree:IP66
Impact resistaance:IK10
Supply includes:
Enclosure of all-round solid construction
gland plate with sealing gasket,door with lock.
Warranty Service:
We 100% Gurantee your Satisfaction
1 Pls report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR warranty.
Equivalent replacements can be provided with shipment of your next order if the products are broken for unartificial factors within 1 YEAR;
3 Shipping and handling fees are not refundable for return or exchange items.
Our Advantages:
1. 10 year's OEM & ODM experience
2. Spain Design
3. the color can remain for over 5 years
4. professional team
*Working environment: air port, building, hotel, shopping centre, housing estate, school,
Factory, port, highway

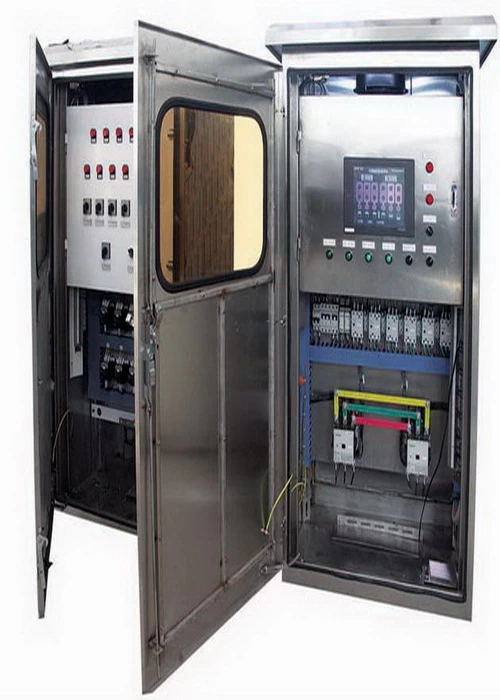

Cooling control cabinet is aimed at cooling fan and a cooling fin fan oil (natural circulation air cooling or forced oil air cooling transformer) design and production control and equipment. Cooling control is mainly used in 35KV, 110KV, 330KV, 500KC, 750KV main transformer, joint and + 800KV HVDC forced air cooling oil immersed transformer.
Product use: engineering control system, process control
