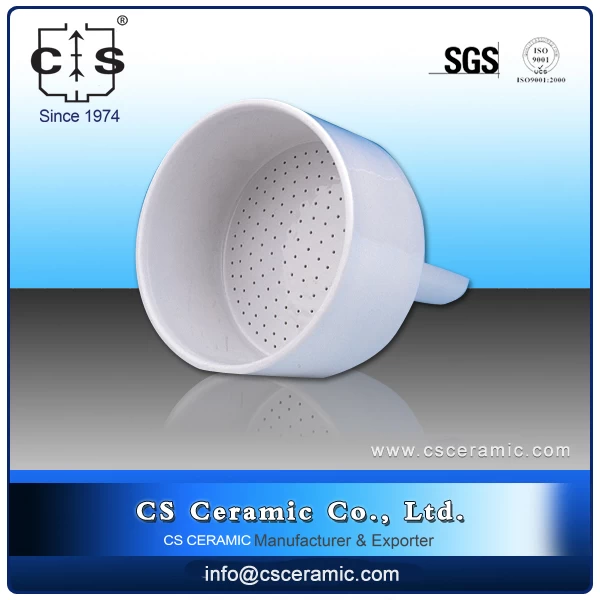

Product Item: Glazed Ceramic Funnels with Perforated Filter Dise for Filtration
Product size:
|
Item NO.
|
Outside
diam.(mm)
|
Tube
diam.(mm)
|
Total
height(mm)
|
Bowl
height(mm)
|
Perforations
diam.(mm)
|
NO. of
perforations
|
|
CS-141
|
20
|
10
|
45
|
15
|
2
|
19
|
Chemical composition:
Si02: 51%
Al2O3: 36.5%
Fe2O3: 0.15%
Cao: 0.47%
Mgo: 1.68%
K2O: 3.2%
Na2O: 0.79%
Physical Parameters:
Acid resistance: more than 99.5%
Alkali resisitance: more than 97%
Temperature resistance: 1380 degrees celsius for unglazed
Wear resistance: less than 0.03g/cm2
Moh's hardness: 7 grade
Water absorption rate: less than 0.5%
Bulk density: 2.2-2.7g/cm3
Compressive strength: more than 300Mpa
Breaking strength: more than 40 Mpa
Thermal stability: 1400 degree celsius to room temperature
More dimension:
|
Item NO.
|
Outside diam.(mm)
|
Tube diam.(mm)
|
Total height(mm)
|
Bowl height(mm)
|
Perforations diam.(mm)
|
NO. of perforations
|
|
CS-141
|
20
|
10
|
45
|
15
|
2
|
19
|
|
CS-142
|
40
|
14
|
65
|
22
|
2
|
37
|
|
CS-143
|
50
|
16
|
80
|
25
|
2
|
37
|
|
CS-144
|
60
|
18
|
100
|
30
|
2
|
51
|
|
CS-145
|
80
|
22
|
130
|
40
|
2
|
51
|
|
CS-146
|
100
|
24
|
150
|
45
|
2
|
88
|
|
CS-147
|
120
|
30
|
170
|
60
|
2
|
123
|
|
CS-148
|
130
|
32
|
190
|
65
|
2
|
123
|
|
CS-149
|
150
|
36
|
220
|
70
|
2
|
164
|
|
CS-150
|
180
|
40
|
250
|
80
|
2.5
|
212
|
|
CS-151
|
200
|
45
|
270
|
90
|
2.5
|
212
|
|
CS-152
|
250
|
50
|
310
|
110
|
2.5
|
326
|
|
CS-152-1
|
300
|
60
|
380
|
140
|
2.5
|
463
|
Advantage:
1)CS Ceramic is making high quality ceramic products.
2)Ceramic purity makes sure high working temperature.
3)Large quantity mould in stock, you will find a suitable one.
4)Very small and very big sized ones can be made.
5)Inspection: each single crucible and boat will be checked before shipping.
6)Low transportation cost. We have long time cooperated shipping agency, which can provide very low prices.
Special offer: Most of our crucibles are produced to order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
More lab ceramic consumables, such as Porcelain crucible with lid, Combustion tube, Spotting plate, ash crucibles and so on, please contact my us freely. info@csceramic.com
