Specifications for glaze tile
|
Cover width
|
Coil width
|
Wave height
|
Wave length
|
Usage
|
|
828
|
1000
|
28
|
207
|
Roof panel
|
|
840
|
1000
|
25
|
210
|
Roof panel
|
|
1100
|
1200
|
28
|
220
|
Roof panel
|

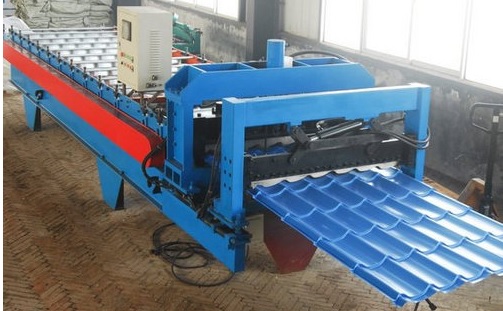

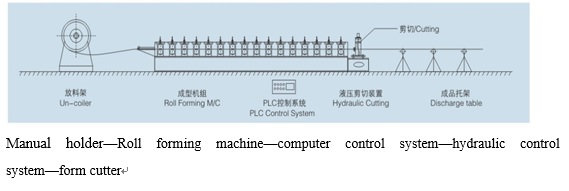

Roofing tile steel roll forming machine includes:
Decoiler
Roll forming machine Electric controlling cabinet
Cutting system
Hydraulic pump station Discharge table
Roof tile steel roll forming machine parameters
|
No.
|
main parameter of roll forming machine
|
|
1
|
suitable material
|
Color Steel plate, galvanized sheet
|
|
2
|
Width of the plate
|
1000mm
|
|
3
|
Rows of rollers
|
15 rows
|
|
4
|
Size
|
6m*1.5m*1.3m
|
|
5
|
Total power
|
4kw+4kw
|
|
6
|
Thickness of raw material
|
0.3-0.8mm
|
|
7
|
Productivity
|
4-5m/min
|
|
8
|
diameter of shaft
|
￠70mm
|
|
9
|
Material of shaft
|
45#steel
|
|
10
|
Big frame
|
300 H steel
|
|
11
|
Made board
|
16mm
|
|
12
|
Transportation system
|
Chain transportation
|
|
13
|
chain thickness
|
1.0 inches
|
|
14
|
Weight
|
About 3.5T
|
Special size can be made according to customer's requirement

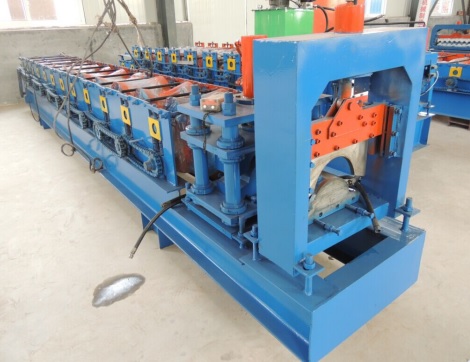

ridge cap steel roll forming machine
Ridge cap steel roll forming machine parameters
|
SB Roll Forming Machine
|
|
SN
|
|
Technical Specification & Remark
|
|
1
|
Simple-coiler (without motion)
|
To bear 5ton color steel coil and feed material for forming machine and inner diameter is 450-500mm
|
|
2
|
Feeding platform
|
Function and feature: put the raw material (steel plate) on the plat to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
|
|
3
|
Main machine
|
In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller surfaces polishing, hard planting, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped. Rolling galvanization thickness:0.05 mm Rolling material: Forging Steel 45#
|
|
4
|

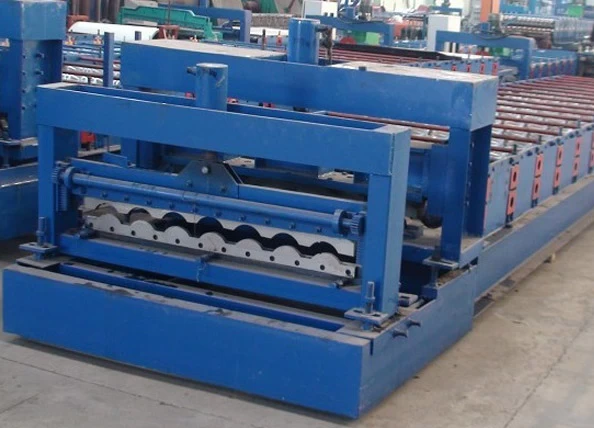

Shearing mechanism
|
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products. It contains one set of cutting tools, one hydraulic tank Material of the cutting blade :Gr12
|
|
5
|
Hydraulic system
|
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job. The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves. Power of the oil pump: 4kw Hydraulic oil :40#
|
|
6
|
Computer control cabinet
|
It adopts industrial computer to control. The target piece’s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Processing precision : within 3.00mm It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part. The seller should provide Chinese and English language screen.
|
|
7
|
Counter
|
One counter gauges length, pulses, and decides length.
|
Our roll forming machine has which advantage?
