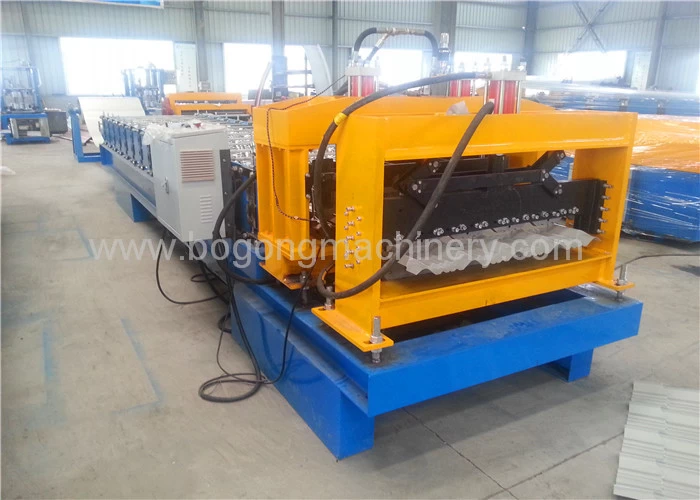

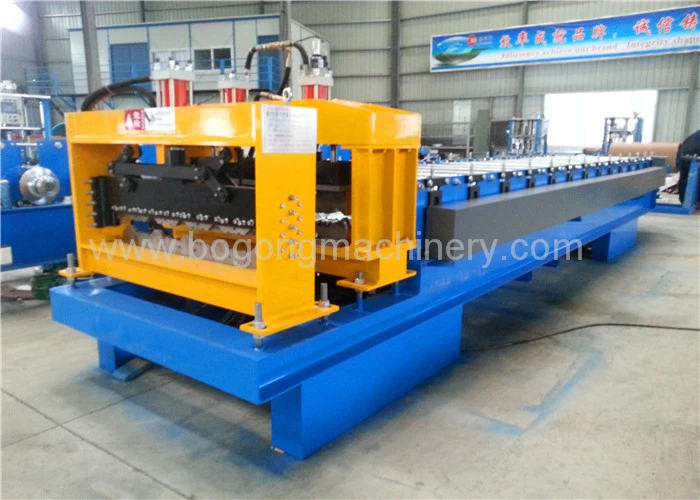

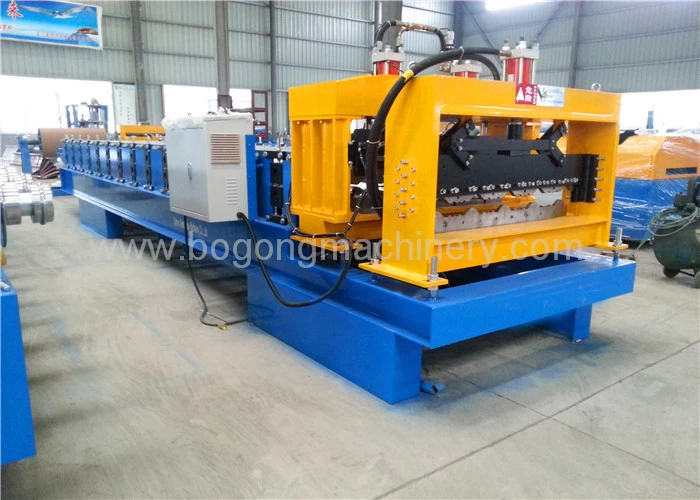

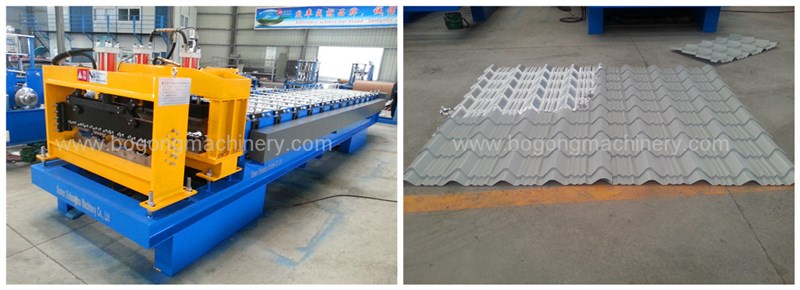

Product Name: Glazed Sheet Metal Roof Tile Roll Forming Machine 1220mm Feeding Width
This glazed sheet metal roof tile roll forming machine is designed for producing both aluminum-zinc coated steel and pre-painted steel sheet coil, all the rollers are CNC lathe, polished and then coated by hard Chrome, this is for increasing roller's hardness and anti rollers rust. It is good for ensure step tile roof surface is smooth and beautiful.

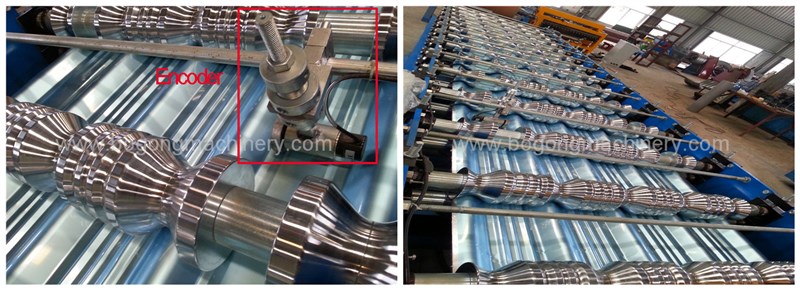

The glazed sheet metal roof tile roll forming machine line is controlled by PLC system, see the encoder to inspect whole line's working speed and it can give length signal to PLC system, then all the step tile length and steel tile roof length will be on correct dimension.
Hydraulic cutting and pressing system at whole glazed sheet metal roof tile roll forming machine finished end, the cutting end is good and nothing burrs happen.

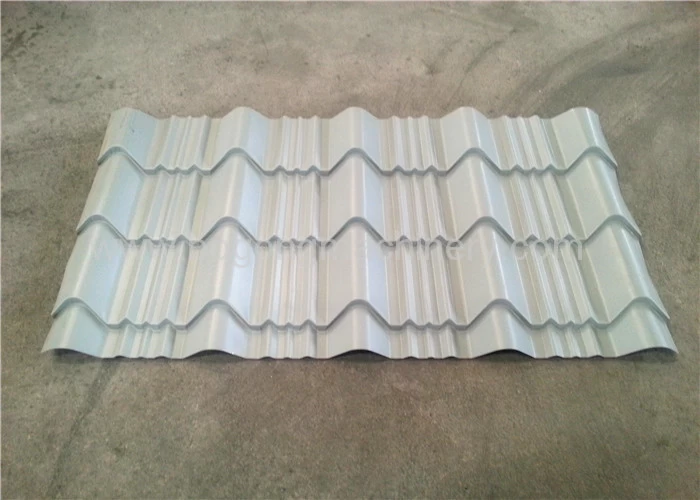

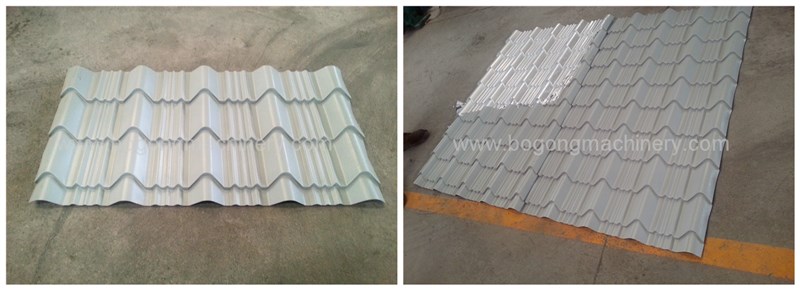

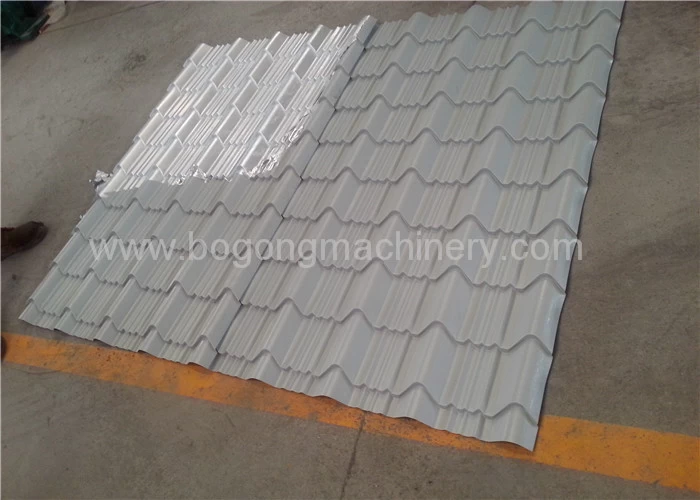

Sample Pictures
This glazed sheet metal roof tile roll forming machine design is with four pinches, 815mm covered width and the raw material width is 1220mm. Whole roof tile surface is smooth and the two connect edges are flat also.
Technical Parameters
|
Parameters
|
Specification
|
|
Voltage
|
380V/50HZ/3PH/or customized
|
|
Driving Motor
|
7.5KW
|
|
Forming Steps
|
16 steps
|
|
Working Speed
|
3-5m/min
|
|
Thickness for Steel
|
0.4-0.6mm (Material:PPGI,GI Steel G550)
|
|
Shaft Diameter
|
75mm
|
|
Shaft Material
|
High grade 45# forged steel
|
|
Roller Material
|
G45# steel, CNC lathe,polished and chrome plated
|
|
PLC Cabinet
|
Schneider, Delta
|
|
Encoder
|
Omron
|
|
Sprocket Wheel
|
45 steel high-frequencies quench
|
|
Cut-off System
|
Post cutting, no waste cutting
|
|
Cutting Blade Material
|
Cr12 steel
|
|
Machine Frame Material
|
Fine welded structural steel;
|
|
Roofing Material
|
PPGI, GI steel G330-550
|
|
Painted Color
|
Blue+Orange Or Customization
|
|
Overall Size
|
9600*1550*1650mm
|
|
Weight
|
7500KGS
|
Contact to us if you need more information about our roll forming machines.
