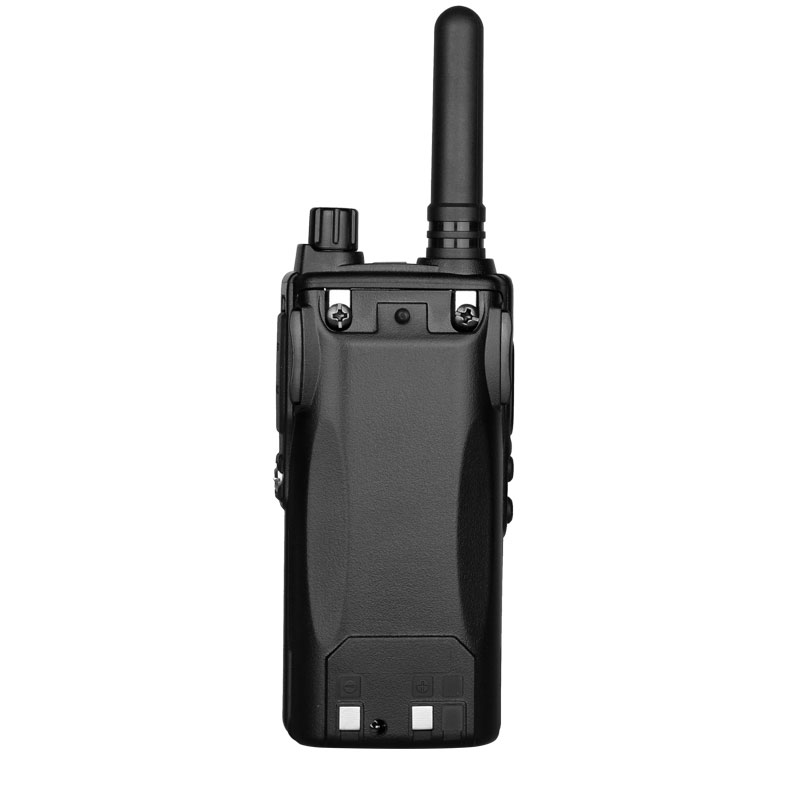

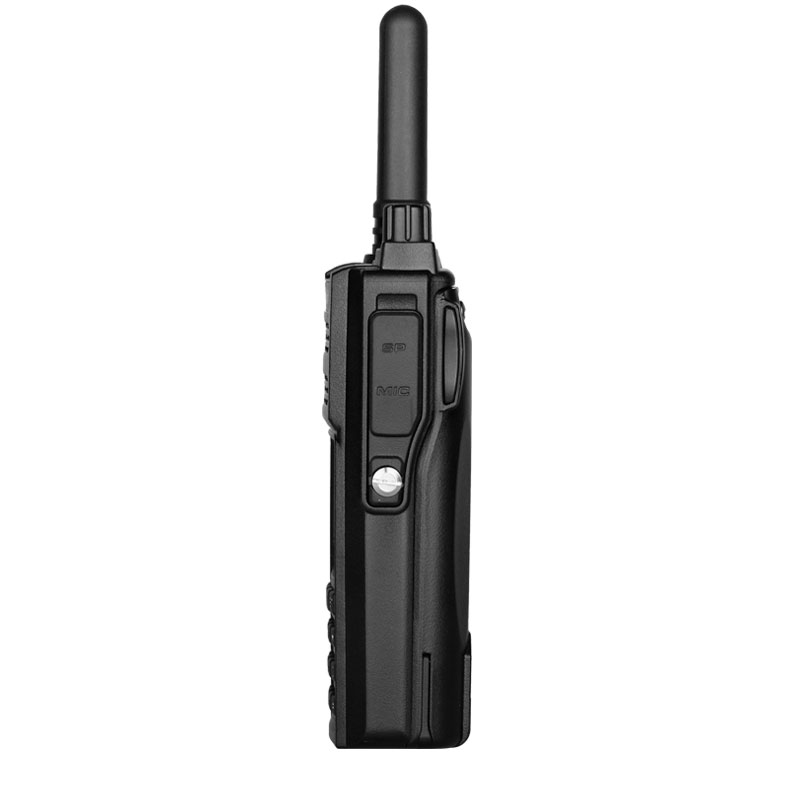

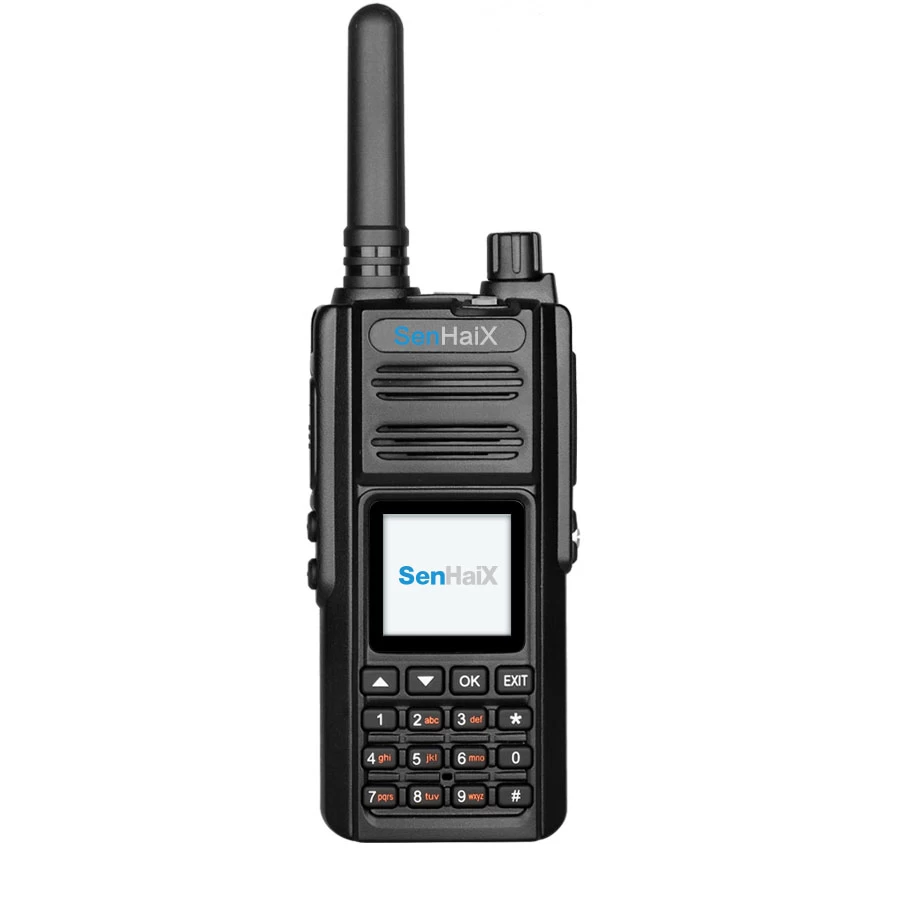

Product Name: Global Talking 3G GPS Walkie Talkie
Technical Specifications
|
General Specification
|
|
Model No.
|
SPTT-9Plus
|
|
Dimension
|
116x57x35mm (excluding antenna)
|
|
Weight
|
360g
|
|
Battery Capacity
|
3800mAh /6000mAh
|
|
Operated Voltage
|
DC 4.2V
|
|
Receiving sensitivity
|
-106dBm
|
|
MAX.Transmit Power
|
23-26dBm
|
|
Working Environment
|
Operating Temperature:-20℃ to~45℃
|
|
Storage Temperature:-40℃ to ~70℃
|
|
Basic Parameter
|
|
(U)SIM/SIM
|
Standard SIM card interface
|
|
3V SIM card and 1.8V SIM card
|
|
MAX Power Dissipation
|
about 2.2w
|
|
Voltage
|
DC3.3-4.2V,Recommended Voltage 3.8V
|
|
Operating Current
|
MAX. Current About 0.6A Average
|
|
Operating Current About 540mA@UMTS2100 About 239mA@GSM900
|
|
Standby Current About 5mA@UMTS About 5mA@GSM
|
|
RF Parameter
|
|
GSM(3G)
|
900/1800MHZ or 850/1900MHZ
|
|
UMTS(3G/WCDMA) Frequency Range
|
900/2100MHZ or 850/1900MHZ
|
|
Max Output Power
|
UMTS 2100/1900/900/850MHZ:Power class 3(+24dBm +2.5/-1.5dBm)
|
|
GSM/GPRS 850MHZ/900MHZ: Power class 4(+33dBm +2.5/-1.5dBm)
|
|
GSM/GPRS 1800MHZ/1900MHZ: Power class 1(+30dBm +2.5/-1.5dBm)
|
|
EDGE 850MHZ/900MHZ: Power class E2(+27dBm +4.5/-1.5dBm)
|
|
EDGE 1800MHZ/1900MHZ: Power class E2(+26dBm +4.5/-2.5dBm)
|
|
Receiving sensitivity
|
WCDMA2100≤-108dBm
|
|
WCDMA1900/WCDMA900/WCDMA850≤-109dBm GSM1900/GSM1800/GSM900/GSM850≤-107dBm
|
|
GPS
|
|
GPS location
|
GPS Positioning, 1.57542GHz
|
|
Sensitivity
|
Catch -144dBm,Track -159dBm
|
|
Technical Standards
|
|
Data Rates
|
GSM CS:UL 9.6kbps/DL9.6kbps
|
|
GPRS:Muliti-slot Class 10
|
|
EDGE:Muliti-slot Class 12
|
|
WCDMA CS:UL 64kbps/DL 64kbps
|
|
WCDMA PS:UL 384kbps/DL 384kbps
|
|
Protocol
|
HSDPA/WCDMA/EDGE/GPRS/GSM
|
|
HSDPA
|
HSDPA:DL3.6Mb/s(Catagory6)
|
