Global Warranty Mitsubishi Power Generator 1250kva 1000kw Diesel Generator Set with Engine S12R-PTA-C

Japan Mitsubishi S12R-PTA-C with Stamford LVI634G 1250kva Diesel Generator




Product Description


Global Warranty Mitsubishi Power Generator 1250kva 1000kw Diesel Generator Set with Engine S12R-PTA-C

Engine:

Engine manufacture
Mitsubishi Heavy Industries, Ltd.
Engine brand
Mitsubishi
Engine model
S12R-PTA-C
Engine speed (rpm)
1500
Standby power without fan(mKW)
1220
Prime power without fan(mKW)
1110
Type
4-Cycle, Water cooled
Aspiration
Turbo-charged, After cooler
Cylinder
12 cyliner 60°V
Bore * Stroke (mm)
170*180
Displacement (Liter)
49.03
Compression Ratio
14.0:1

Alternator:


Alternator brand
Stamford
Alternator model
LVI634G
Control system
PMG
A.V.R.
Included
Voltage regulation
±1%
Insulation system
Class H
Protection
IP23
Rated power factor
0.8
Winding pitch
Two thirds
Winding leads
6
Frequency (Hz)
50
Voltage (V)
400
Phase
3
Output ratings prime(kva/kw)
1250/1000
Output ratings standby(kva/kw)
1375/1100
THF
<2%
TIF
<50
Max. overspeed (Rev/Min)
2250
Bearing
Single




Standard Configuration:
• Engine include air,fuel,oil filters, starting motor and charge alternator etc.
• Brushless AC alternator,single bearing, flange connection, w/AVR
• Radiator with engine driven fan mounted on skid
• Channel steel base frame, <550KW base 8hrs mounted fuel tank as standard
• Anti-vibration pads between engine/alternator and base frame
• Circuit breaker 3P as standard, 4P optional
• Auto control panel
• Start battery w/ connecting cable and floating battery charger
• Flexbile pipe, exhaust elbow, industrial silencer etc.
• Standard tools kit
• Electric drawing, test report ,operation & maintaince manual of generator etc.
•Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc

Product Details

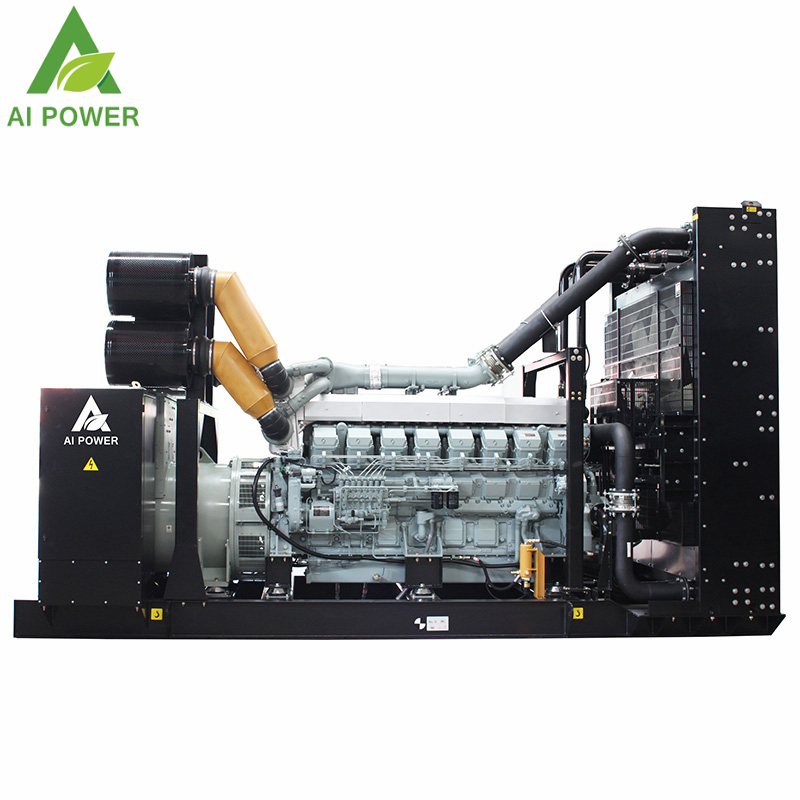

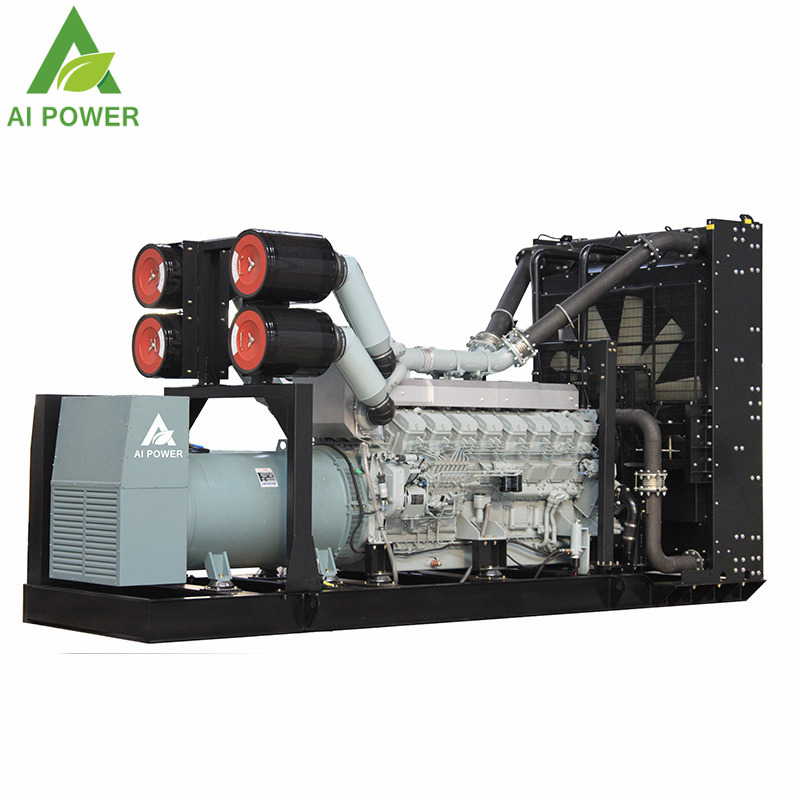

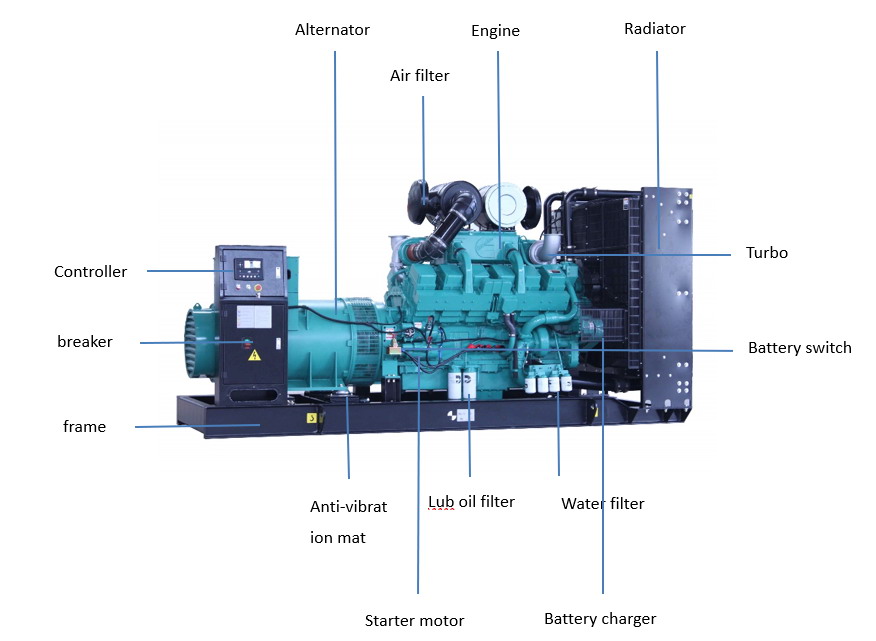

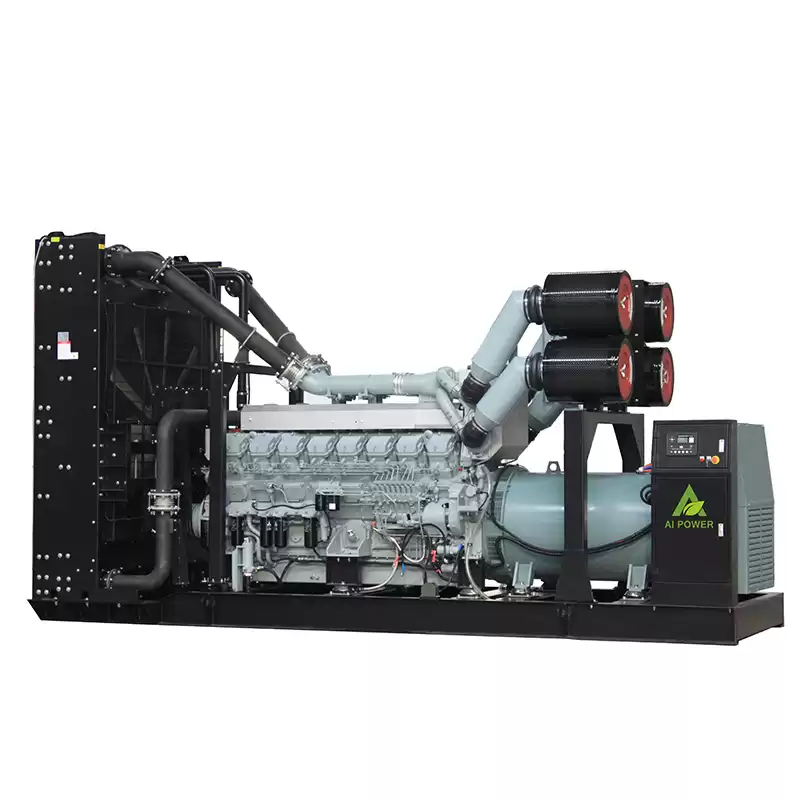

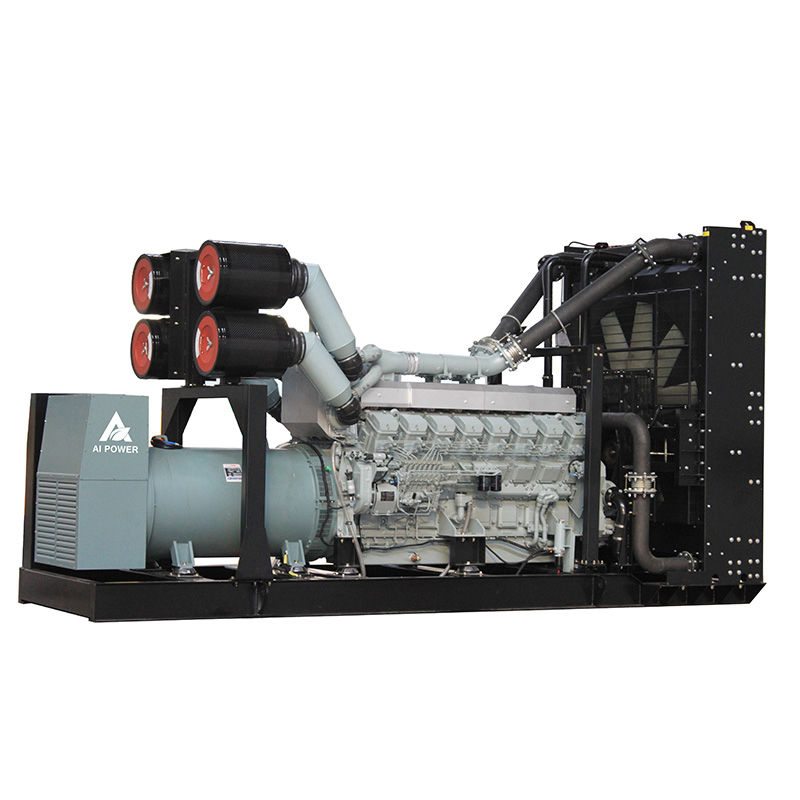

Open Diesel Generator Set:

1.Famous brand engine couple with high quality alternator
2.Large size cooling radiator
3.Heavy duty steel base frame
4.Strong anti-vibration mat
5.Standard free maintenance battery
6.AC alternator for battery charger
7. Heavy-duty air filter, oil filter, water filter
8.Famous brand controller and breaker
9.Optional fuel tank, silent canopy, ATS, synchronization panels.

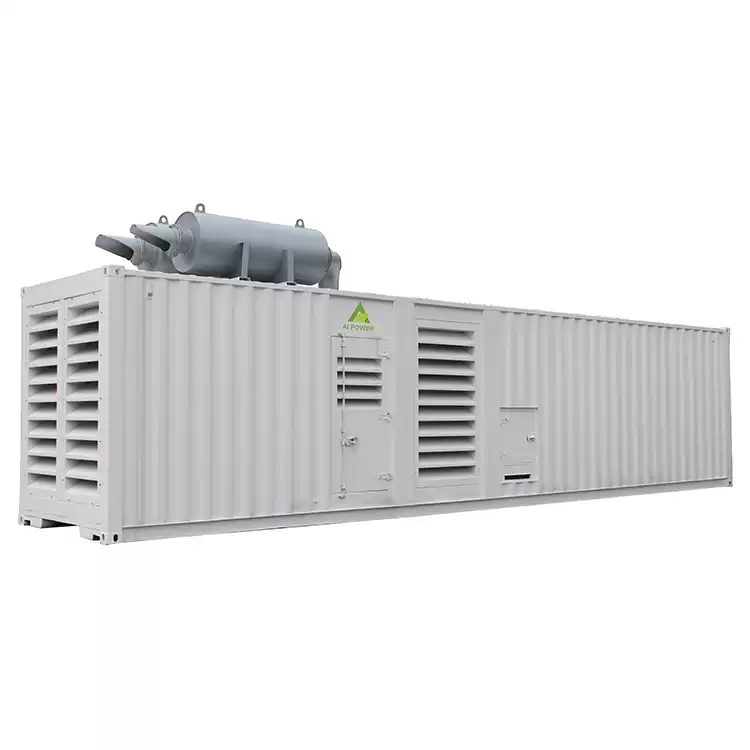

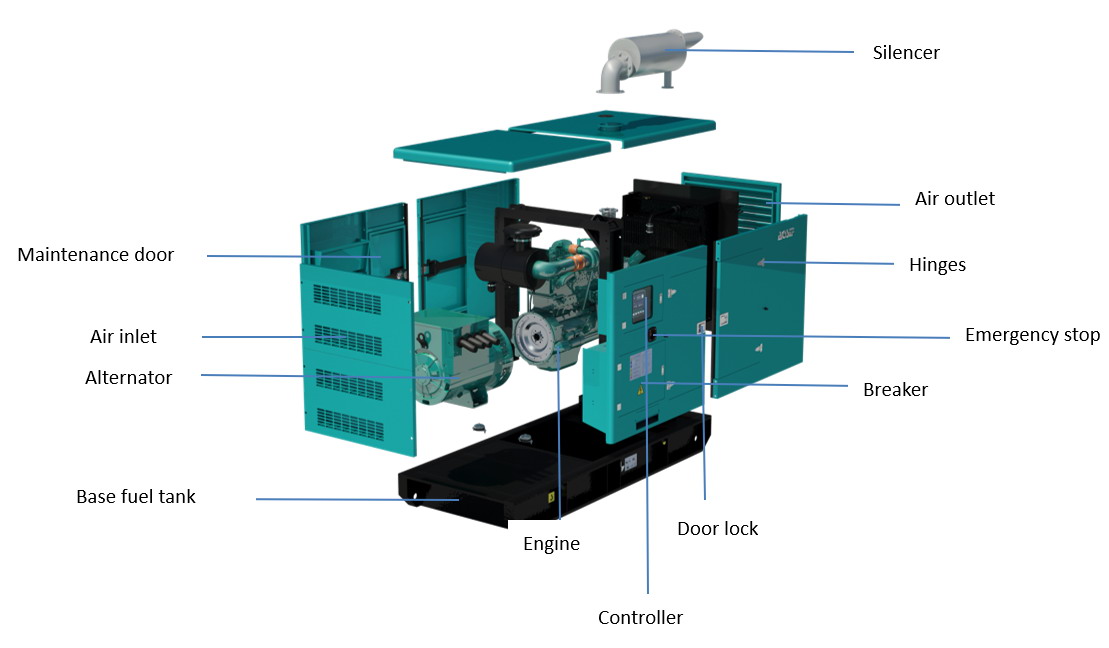

Silent Diesel Generator Set:

1. More than 2mm thick steel to make the canopy
2. High quality paint materials and strict powder paint
3. Impedance combined type silencer
4.Stainless steel door locks and hinges and 180° revolvable and disassemble door
5.High quality soundproof and insulation materials
6.Transparent viewing window
7. Lifting earis mounted in the base frame

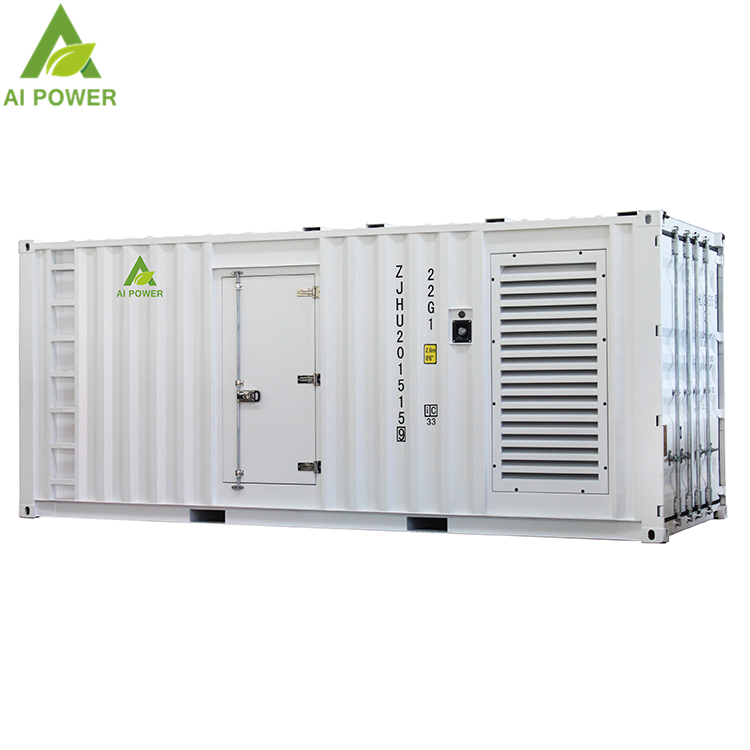

8.Standard 20’, 40’ and 40HQ container canopy for option

AI Company

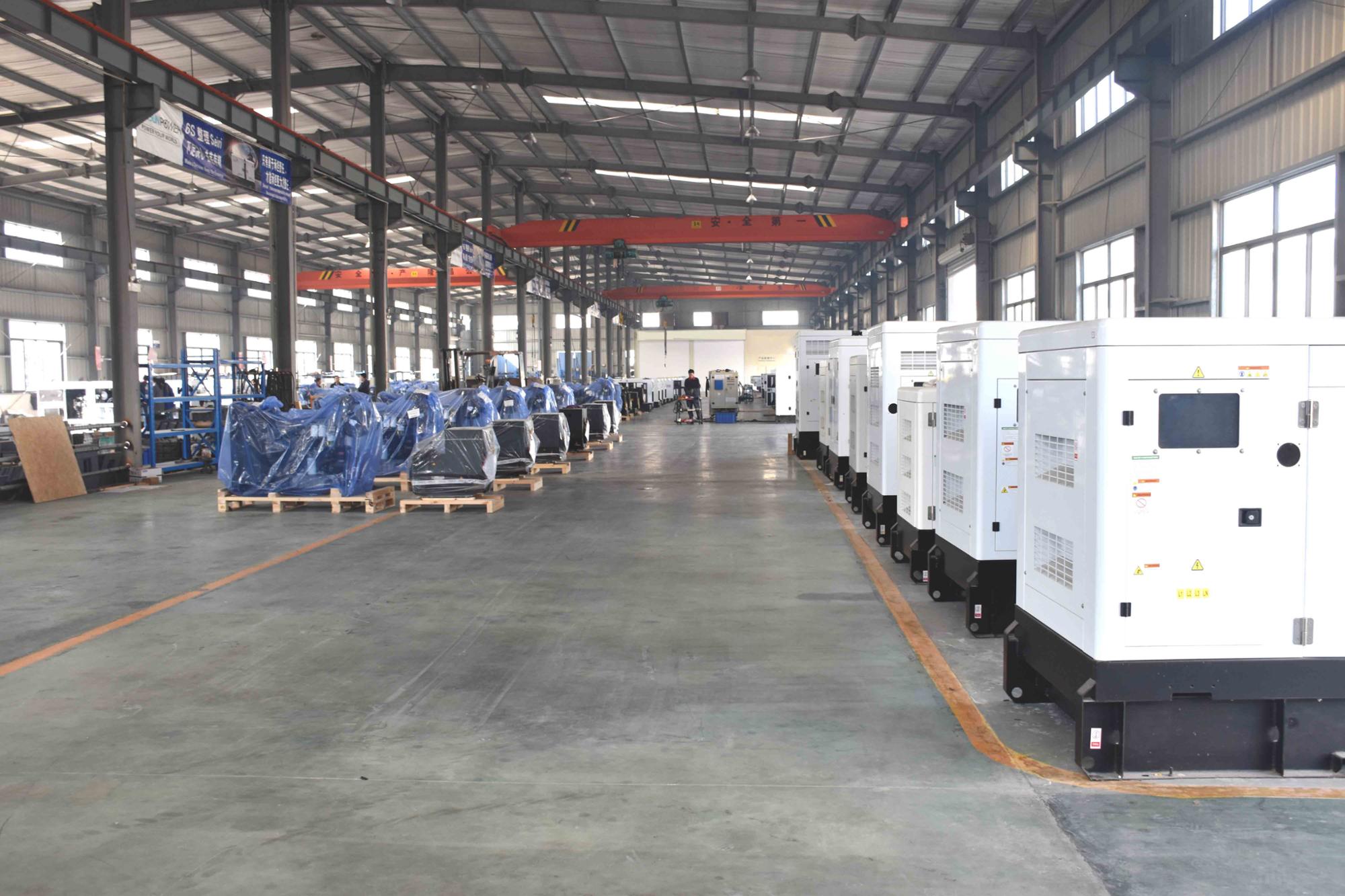

Company Profile


Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.
Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, loadbank, etc.

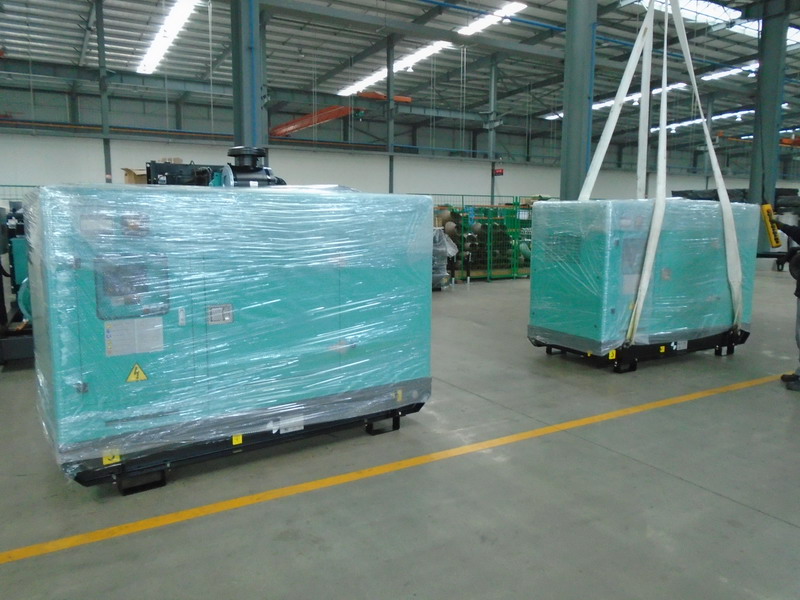

Packing & Delivery
FAQ

1.What's our power capacity range of generator?
Answer: We can offer the range from 10kva~3000kva genset, diesel generator, gas generator, marine generator.
2. Besides power generator, what's your other referenc product?
Answer: We also provide lighting tower, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3. What's kind of generator type you produce?
Answer: open power generators, silent diesel generators, super silent genset, trailer genset, movable electric generator, reefer generator.
4.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
5.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
6. Can you accept small order?
Answer: Yes, we can accept trial order.
7. What’s your delivery time?
Answer: Our normal delivery time is 2 to 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
