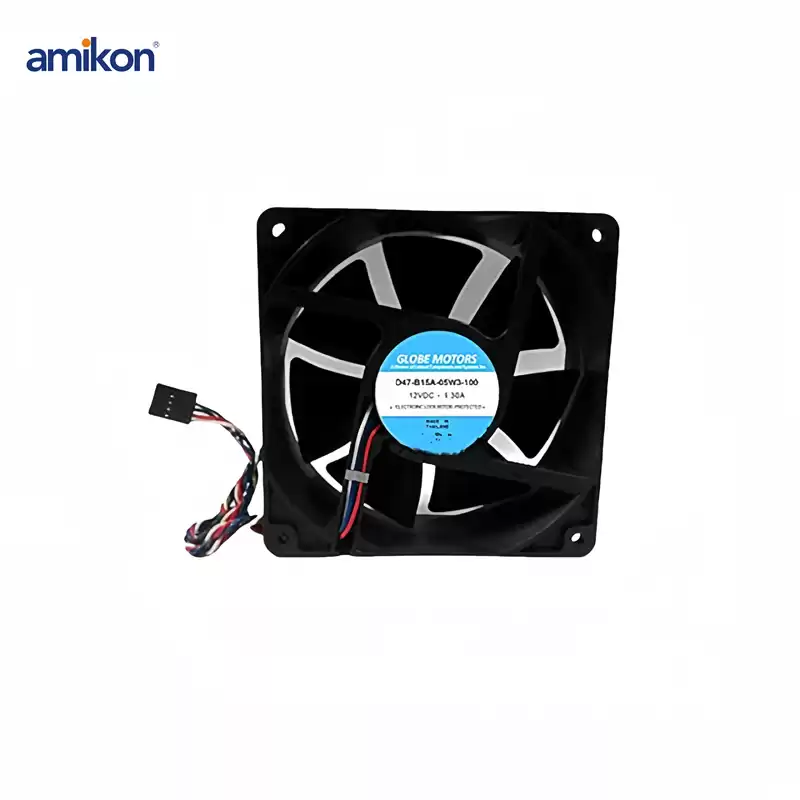

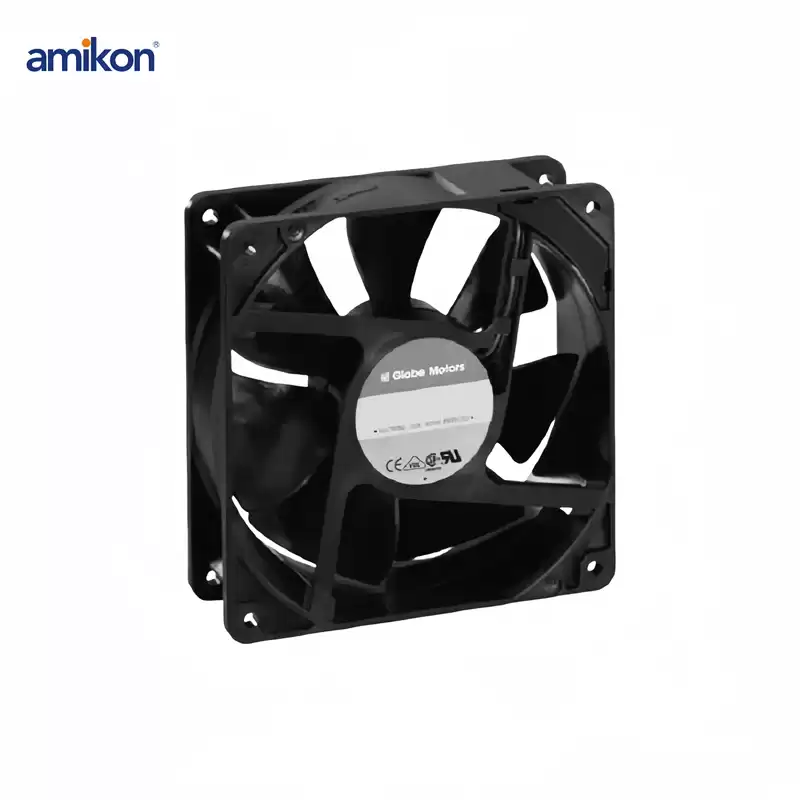

GLOBE MOTORS D47-B15A-05W3-100 Inverter Fan
|
Model Number
|
D47-B15A-05W3-100
|
Weight:
|
0.28 kg
|
|
Brand Name
|
GLOBE MOTORS
|
Lead Time
|
IN STOCK
|
|
Warranty
|
1 year
|
Payment
|
T/T Bank Transfer
|
|
Quality
|
Brand New & Original
|
Service
|
One-stop Service
|
|
Shipping By
|
DHL UPS TNT FEDEX ARAMEX
|
Dimensions
|
9x10.3x8cm
|
Features
Solid-state brushless motor design provides：
Auto restart
Low input power
Lower operating voltages
Precision ball bearing system provides:
Longer life
Higher temperature extremes
Lower noise over time Maximum shock and vibration resistance
Designed to meet the rigid standards ofUL, CSA, VDE, and CE.
Accessories
Finger guards
Filters
General Specifications
Frame: Reinforced polybutylene plastic(UL94V-0 flame retardant)
Impeller: Reinforced polybutylene plastic(UL94V-0 rating)
Bearings: Precision, life-ubricated ball bearings
Insulation: Class A integral ground systemrated @ 248°F(120°C)
Weight: 9.2 ozs.(260 grams)
Temperature Range: 14° to 158°F110° to 70°C)
Insulation Resistance: 10 megohms minimum@500 VDC
Dielectric Strength:
500 VAC for 60 seconds
Safety Protection: Electronic locked rotorprotected; polarity protected
Life Expectancy: 75,000 hours minimum@77°F{25°C)
Options:
(Consult Factory)
Tachometer output
Locked rotor sensor output
(Not available on 48 VDd)
