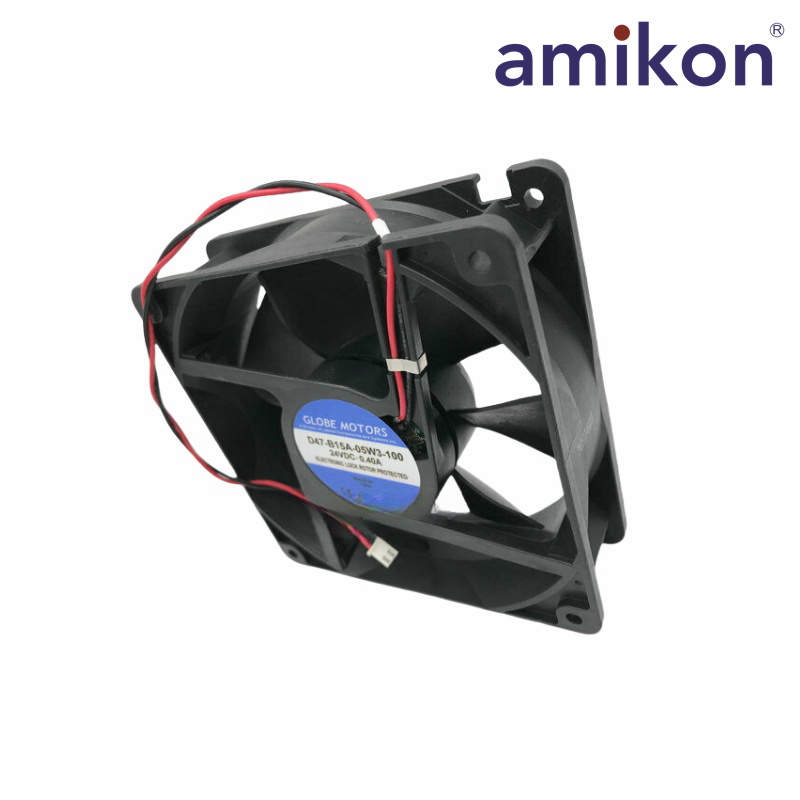

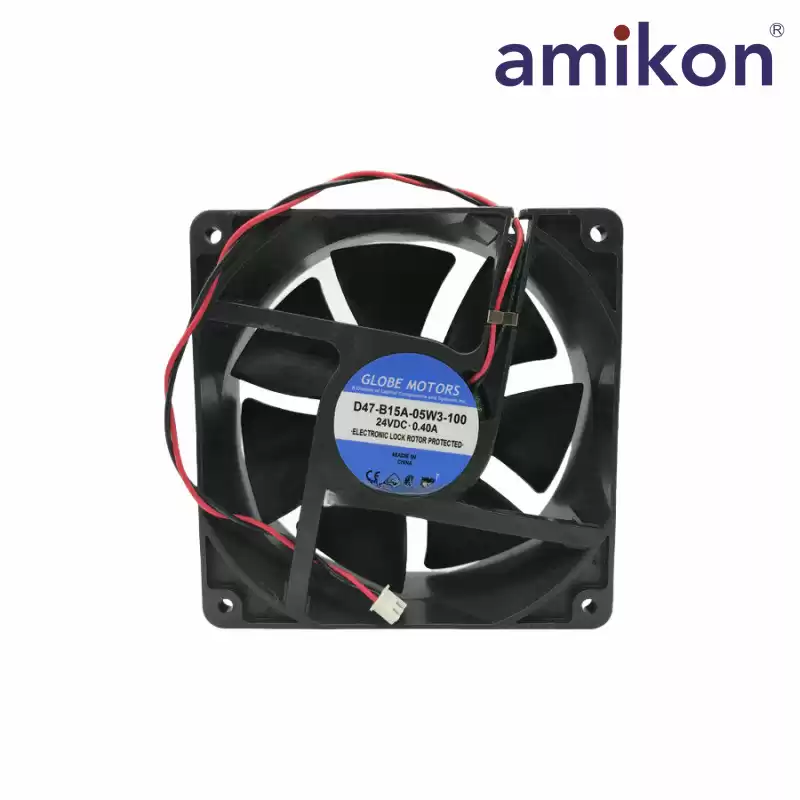

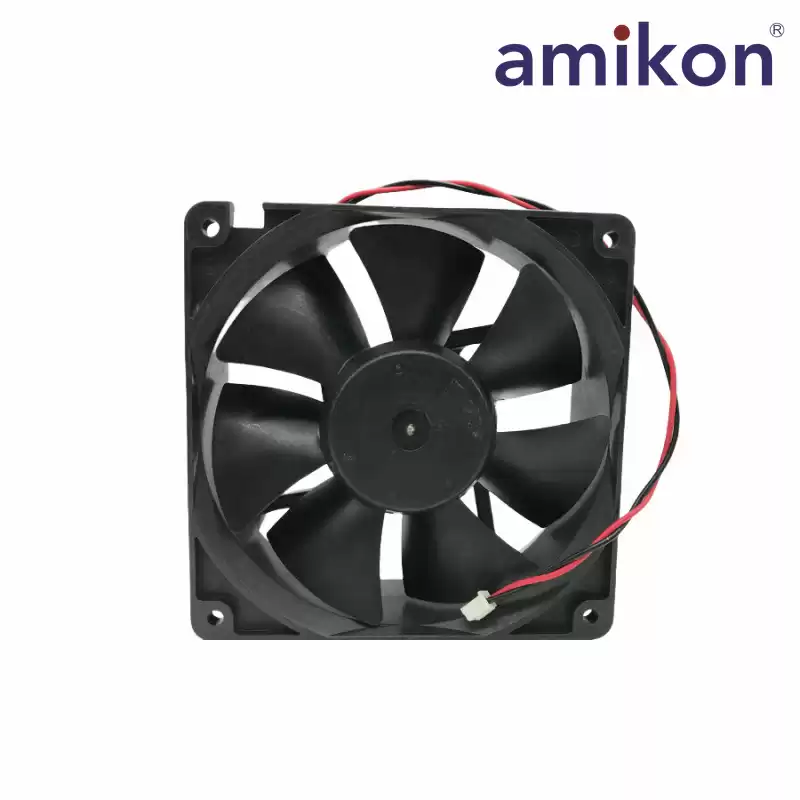

➱D47-B15A-05W3-100 DC Fan
Features:
Solid State Brushless Motor Design Provides:
- Improved Performance
- High Efficiency
- Auto Restart
- Low Input Power
- Lower Operating Voltages
?Precision Ball Bearing System Provides:
- Longer Life
- Higher Temperature Extremes
- Lower Noise Over Time
- Maximum Shock and Vibration Resistance
Designed to Meet the Rigid Standards of UL, CSA, VDE, and CE
|
Frame
|
Reinforced polybutylene plastic(UL94V-0 flame retardant)
|
|
Impeller
|
Reinforced polybutylene plastic(UL94V-0 rating)
|
|
Bearings
|
Precision, life-lubricated ball bearings
|
|
Insulation
|
Class A integral ground systemrated @ 248°F (120°C)
|
|
Weight
|
9.2 ozs. (260 grams)
|
|
Temperature Range:
|
14° to 158°F(-10° to 70°C)
|
|
Insulation Resistance
|
10 megohms minimum@ 500 VDC
|
|
Dielectric Strength
|
500 VAC for 60 seconds
|
|
Safety Protection
|
Electronic locked rotorprotected; polarity protected
|
|
Options:
|
(Consult Factory)Tachometer outputLocked rotor sensor output(Not available on 48 VDC)
|
|
