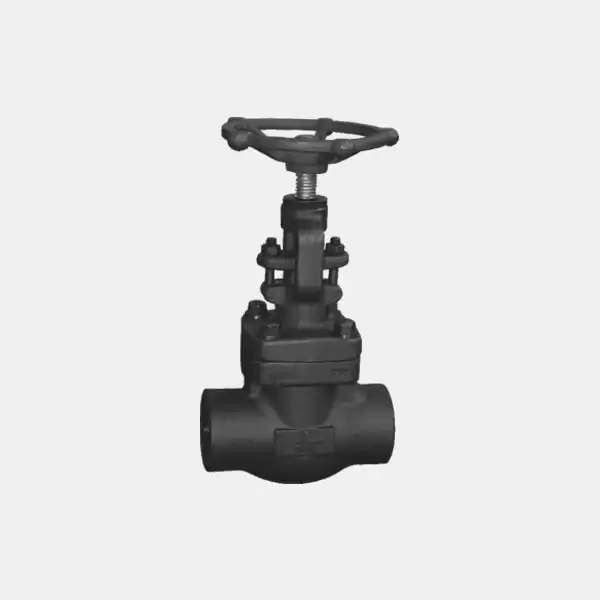

Globe Valve ½Inch 800LB A105N

API602 Rising Stem Globe Valve

½Inch, 800LB, A105NA182 F6A, Handwheel

Manufacture STAVAL Factory Offers.


  • ConstructionRising/Non Rising Stem, Bolt/Weld Bonnet, Plug/Conical Disc
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze
  • Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
  • Size Range½Inch ~ 2Inch (DN10 ~ DN50)
  • BoreFull Bore, Reduce Bore
  • End ConnectionBW, Flange, SW, NPT, PE
  • Working Temp. -196°C to +600°C

Key Specification

Type

Globe Valve

Size

½Inch

Pressure

800LB

Construction

OS&Y, Rising Stem, Bolt Bonnet, Reduce Bore, Plug Disc

Connection

SW End

Body/Bonnet Material

ASTM A105N

Wedge Material

A182 F6A

Stem Material

A182 F6A

Seat Material

STL

Bolt/Nut

B7/2H

Design Standard

API602

Face to Face Dimension

Manufacture's Std

End Connection

ASMEB 16.11

Inspection & Test Std.

API598

Temperature Range

-29℃~+425

Medium

Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL



Inspection Report Issued By STAVAL
