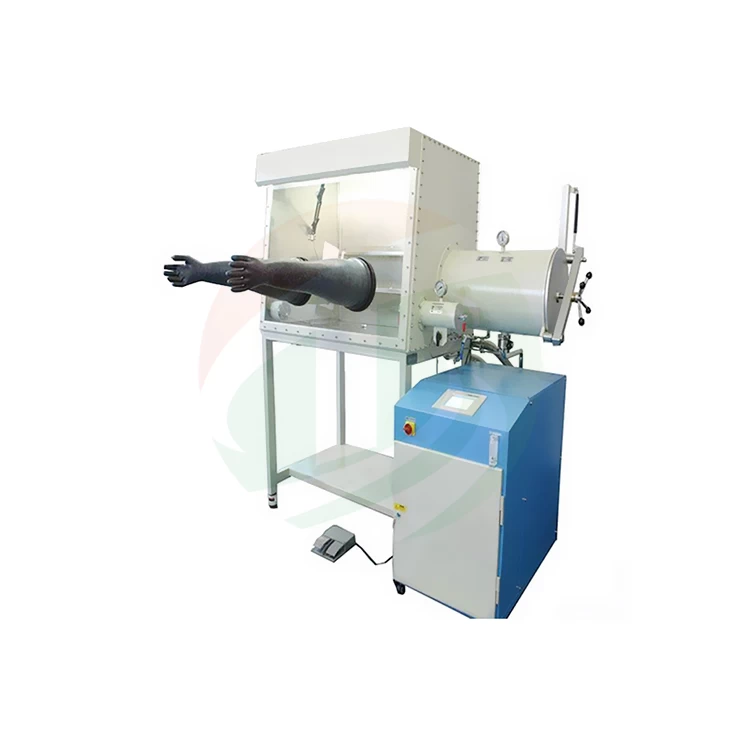

Large Glove Box (122W x 90H x 76D cm) with Gas Purification System and Digital Control System
SPECIFICATIONS
TOB-MRX-1220Glove box is a stainless steel glove box designed for researches in material science, chemisty, semiconductor, and related topics. It achieves a low water and oxygen concentration of lower than 1ppm, such that experiments can be conducted in a ultra-clean and highly purified gas environment.
Theglove boxis integrated with vapor pressure control system, purity control system, automatic gas purity regeneration control system, and system data log recording. This glove box is widely used in preparing nano materials, Li-ion battery materials, catalysts, and metallorganics.
|
Model
|
Glove box TOB-MRX-1220
|
|
Working Voltage
|
110-220V AC, 50/60Hz, Single Phase
|
|
Glove Box Chamber
|
Case Material: Stainless Steel 304 with 3mm thickness

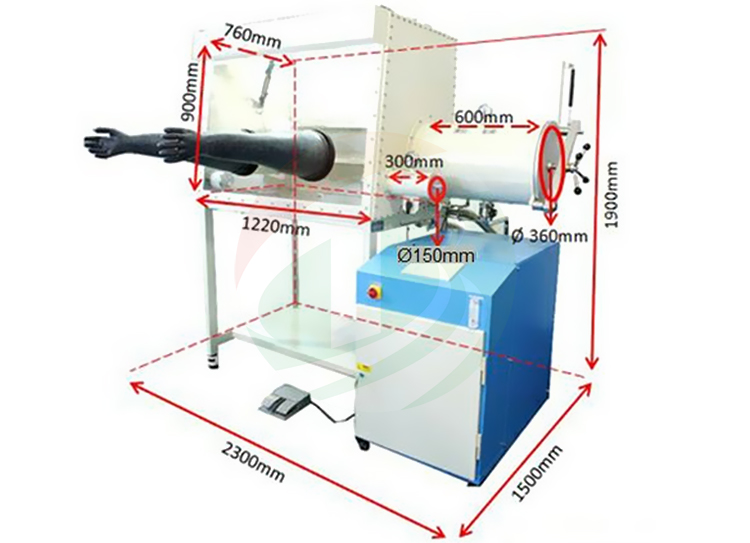

Dimensions: 1220mm(L) x 760mm(W) x 900mm(H)
Removable Front Window Panel
|
|
Chamber Condition
|
Water concentration: <1 ppm (20°C, 1 atm)
Oxygen concentration: <1 ppm (20°C, 1 atm)
|
|
Leak rate
|
<0.05 Vol% / hr (Depending on oxygen concentration inside the glove box)
|
|
Air-lock Chamber
|
Antechamber Dimensions: 360mm(Dia.) x 600mm(L)
Small Chamber Dimensions (for tools): 150 mm(Dia.) x 300mm(L)
|
|
Working Gas
|
Operating gas: Inert gas such as N2, Ar, He
Regenerating gas: Mixture of H2 (5-10%) and Operating gas
For purification system with only water adsorbing function,
Regenerating gas will be the same as Operating gas
|
|
Gas Purification System
|
Automated Regeneration Process
Automated water and oxygen removal
|
|
Filter System
|
Inlet and Outlet filter can eliminate particle size > 0.3μm
|
|
Pressure Control System
|
Automatic pressure control by PLC for the Glove Box Chamber
Pressure Range: +/- 12mbar
Manual pressure control is allowed via a foot pedal
|
|
Purging System
|
Automatic Purging System allows easy operating and reduce gas consumption
|
|
Control system
|
Siemens PLC control system with 6" touch screen display
Water concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
Oxygen concentration: 0 - 1000 ppm with an accuracy of 0.1 ppm
Pressure: -2500 to 2500 Pa with an accuracy of 1 Pa
|
|
Data
|
Automatic system data logging
|
|
Pump
|
England RV-8 EDWARDS pump is included for faster vacuum and removing moisture
Vacuum rate: 8 m^3/hr
|
|
Purification Pipeline
|
304 Stainless Steel, KF40 and KF25 Port
|
|
Gloves
|
A pair of 9 3/4" butyl glove is included for immediate use
|
|
Lighting
|
Built in fluorescent lamp
|
|
Product Dimensions
|
2300mm(L) x 1500mm(W) x 1900mm(H) (91" x 59" x 75")
|
|
Warranty
|
One Year limited warranty with lifetime support
|
