Luminescent Pigment

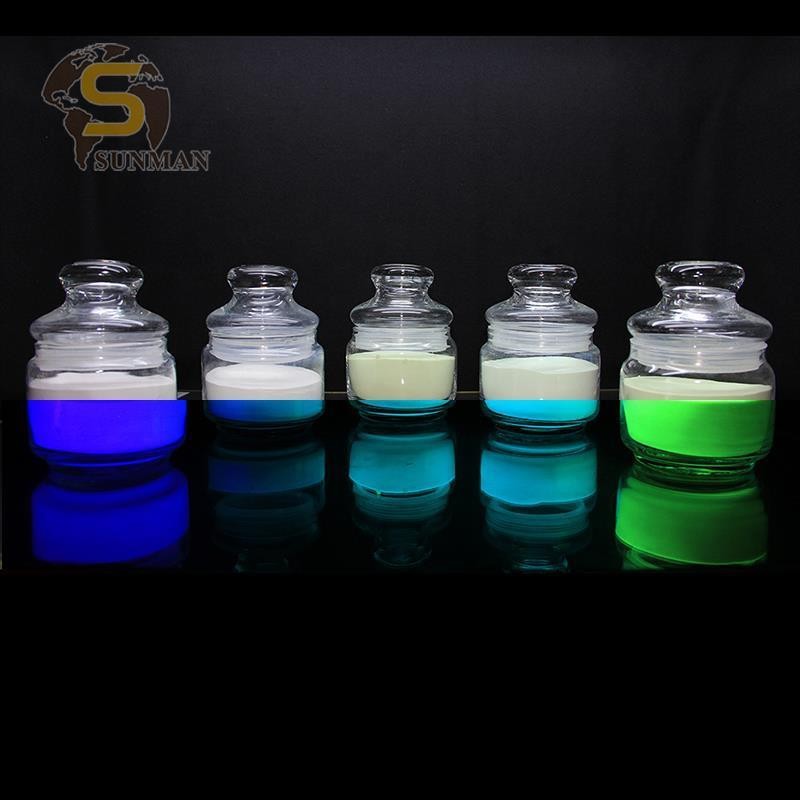

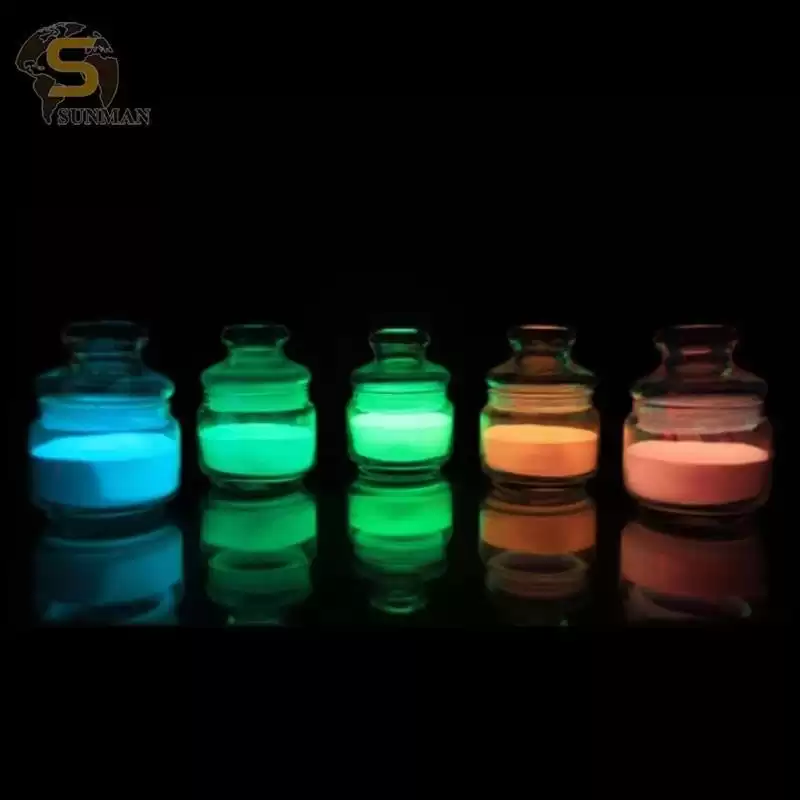

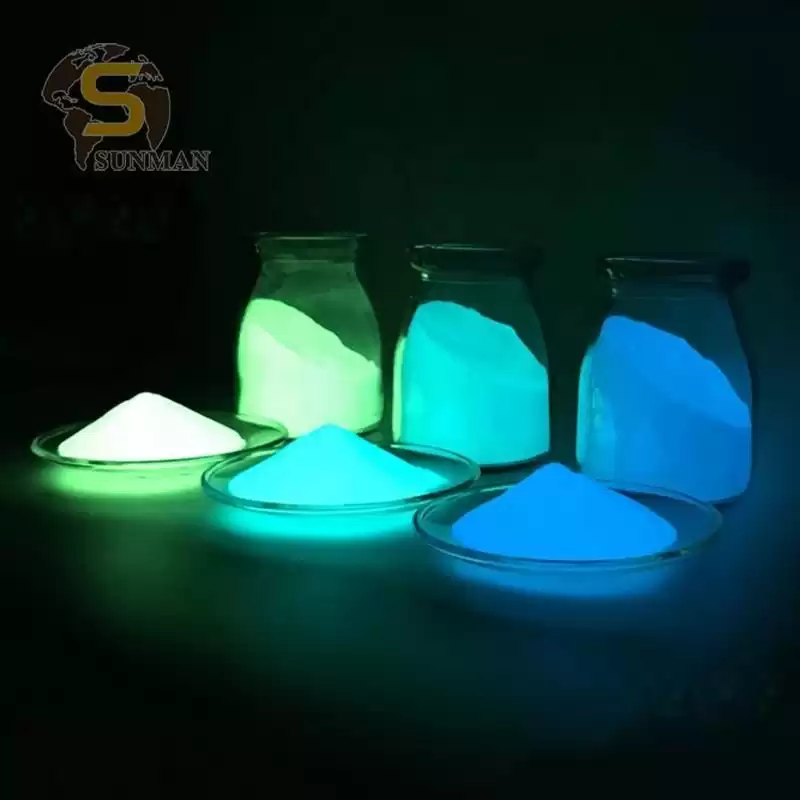

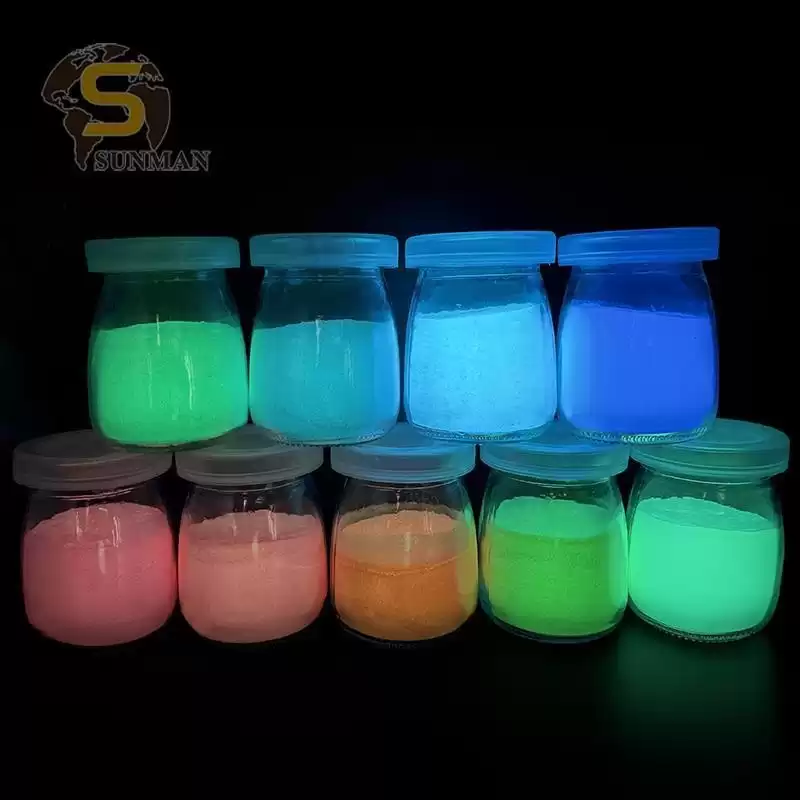

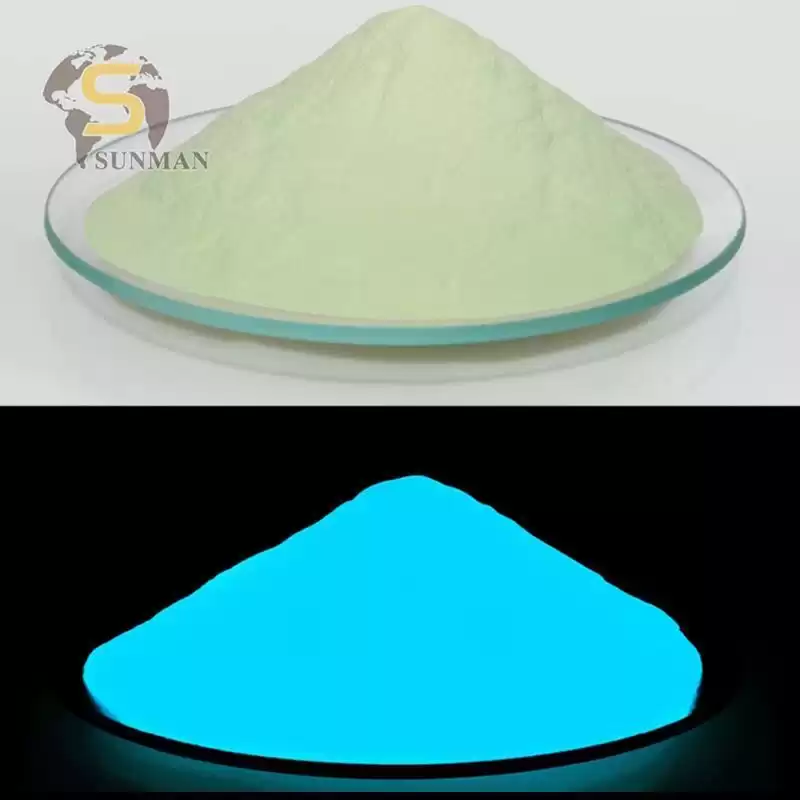

Luminescent pigment (Strontium Aluminate glow in dark pigments) is a kind of rare earth photoluminescent powder, with no radioactive component. After absorbing visual light, sunlight, lamp light, UV light etc, it can store the energy and give off light in dark.
Use Instructions:
1. Luminous powder always mixed with transparent ink and paint.
2. Prefer to choose small particle size, because the final products will be looked smooth, and there were not have sediment for its small size.
3.The mixing proportion is 1:1 according to the weight, first, add luminous powder, and then add ink, paint orsolvent, when fully cover the luminous powder, stop adding any more, it will take half hour to one hour (depending on the site situation) ,make the ink or paint soak the luminous powder, and then start to add the rest ink or paint, mix round, it can avoid bring too much bubbles.
4. When printing by luminous ink or paint, customer should according to print speed that adjust luminous ink viscosity by thinner
Specifications:
|
Model
|

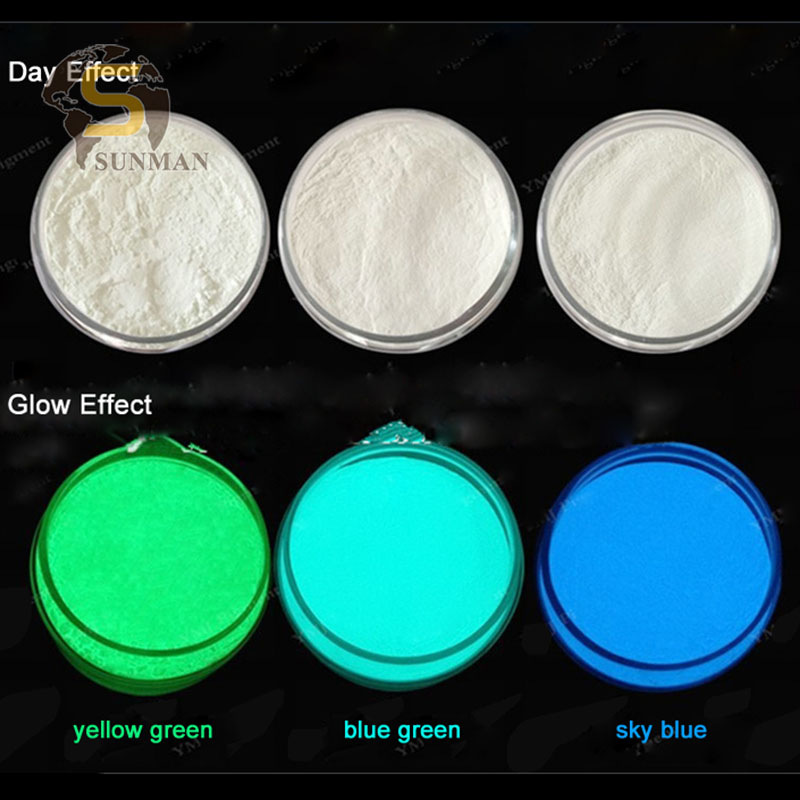

Glowing color
|
Glowing time
|
Particle size
|
Afterglow intensity
|
Usage
|
|
(Hour)
|
(um)
|
1min
|
10min
|
60min
|
|
SG-6A
|
Yellow-green
|
8-10
|
50-75um
|
4515
|
481
|
47
|

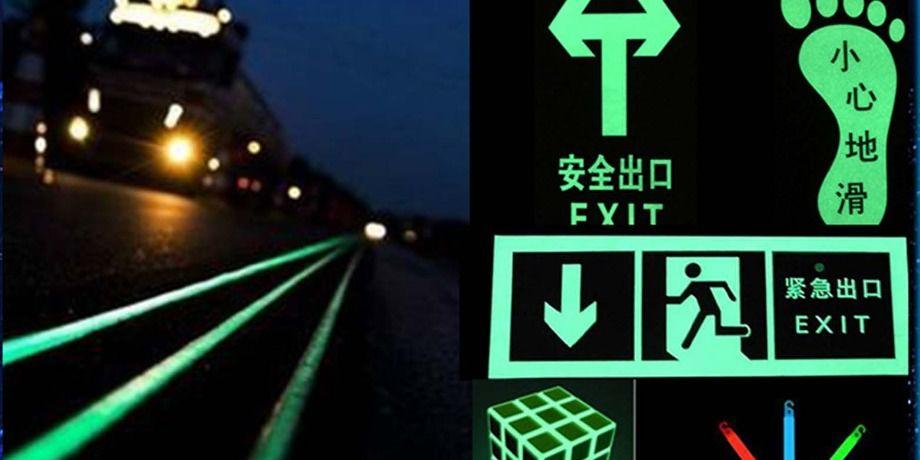

Injectionmolding,Artifact,Ceramic,
Printing,Mosaic,Ink and paint
|
|
SG-6B
|
8-10
|
30-50um
|
2756
|
317
|
34
|
|
SG-6C
|
8-10
|
50-75um
|
6637
|
1145
|
170
|
|
SG-6D
|
8-10
|
30-50um
|
4976
|
721
|
100
|
|
SG-6E
|
8-10
|
10-30um
|
3611
|
498
|
69
|
|
SG-6F
|
12
|
50-75um
|
7575
|
1167
|
169
|
|
SG-6G
|
12
|
30-50um
|
6768
|
1047
|
115
|
|
SG-6H
|
12
|
10-30um
|
5217
|
770
|
102
|
|
SG-4A
|
12
|
50-75um
|
8711
|
1342
|
184
|
|
SG-4B
|
12
|
30-50um
|
7765
|
1024
|
142
|
|
SG-4C
|
12
|
10-30um
|
6350
|
862
|
116
|
|
SB-5A
|
Blue-green
|
8-10
|
50-75um
|
4840
|
950
|
115
|
|
SB-5B
|
8-10
|
30-50um
|
2766
|
493
|
66
|
|
SB-5C
|
8-10
|
10-30um
|
2694
|
480
|
61
|
|
SA-8A
|
Azure
|
8-10
|
50-75um
|
2667
|
533
|
90
|
|
SA-8B
|
8-10
|
30-50um
|
972
|
156
|
22
|
|
SA-8C
|
8-10
|
10-30um
|
948
|
146
|
20
|

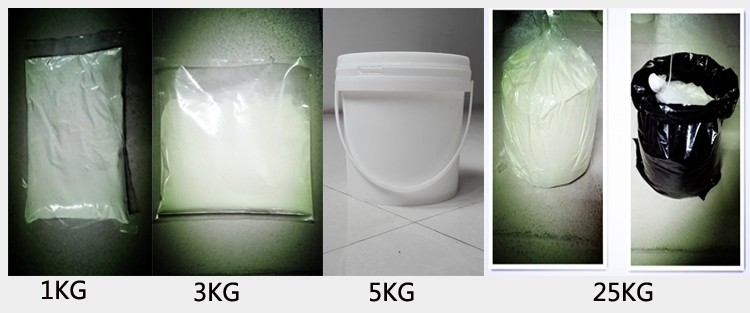

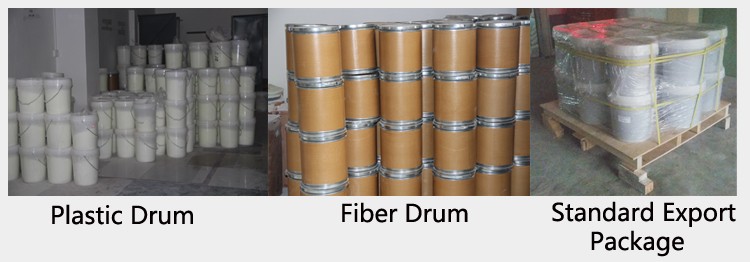

Package:
1). inner package 1 kg in a water-proof plastic bag.
2). Outer package: 25kgs(25bags)/ water-proof plastic pail.
