Glow Wire Tester GT-MC35H-2

Glow Wire Tester GT-MC35H-2 is the latest release of the flaming test equipment (glow wire test), with imports of touch-screen controller and instrument.

  • standardIEC60695 . GB5169
  • certificateISO 9001, UKAS, CE
Facebook Twitter Pinterest LinkedIn 分享


Applications:

Glow Wire Tester GT-MC35H-2 is the latest release of the flaming test equipment (glow wire test), with imports of touch-screen controller and instrument.

New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment. Apply to the latest test standards IEC60695,GB5169, etc.



Standards of glow wire test:

IEC60695

GB5169


Feature

  • 1. Glow Wire Tester LCD Display, Programmable controller, touch-screen control system
  • 2. Full import control components of the glow wire test apparatus.
  • 3. Special high-quality stainless steel clamps.
  • 4. Wireless remote control timing device.
  • 5. Advanced temperature control ang measuremtnt system.


Glow Wire Tester


Key Specifications

Model

GT-MC35H-2

Outside dimension

1120x600x1020mm ( L x W x H)

Glow wire

Φ4mm Ni/Cr(80/20)

Thermocouple

Φ0.5mm K type

Glow temperature

150degree ～ 1000degree (may adjust)

Sample pressure

1.0N+/-0.1N

Sample move speed

10mm /s~25mm /s(may adjust)

Apply temperature time

0.01s～99.99s(may adjust)

Start burning time

0.01s~59m59.99s

Continue burning time

0.01s~59m59.99s

Power supply

Single-phase AC 220 v

Standards

IEC60695 . GB5169


Applications Industry
All kinds of below materials can be tested on the Glow Wire Tester GT-MC35H-2

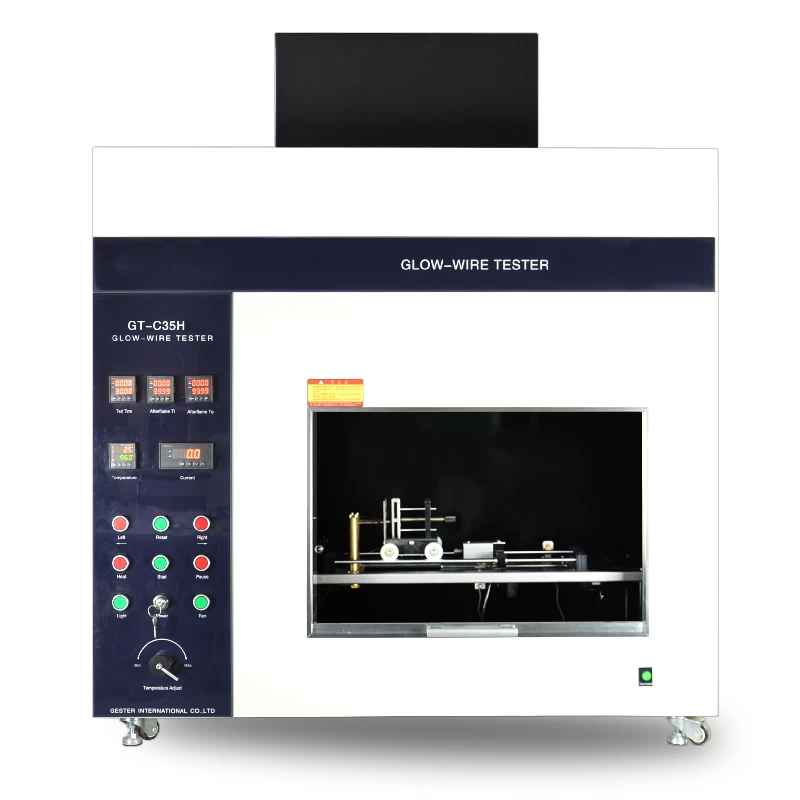

glow wire tester GT-MC35H-2
