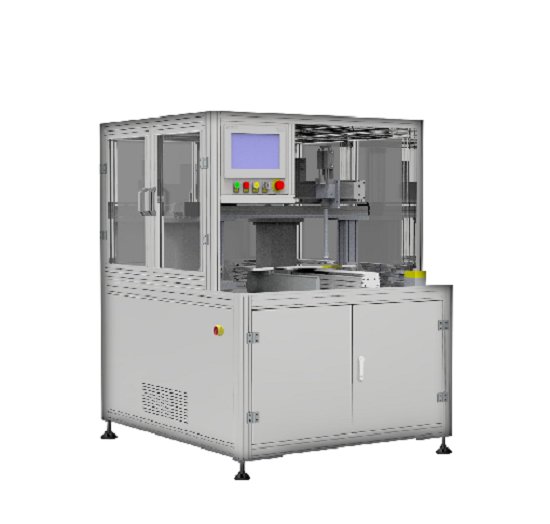

Gluing Equipment for Square Shell and Cylindrical Battery Module
Products Description
This equipment is mainly used for single component and two-component gluing of soft package, square shell and cylindrical battery module. The system is integrated on the three-axis module for path gluing, which can realize three-dimensional path gluing. The equipment is a stand-alone equipment, with simple structure, stable performance, economic and practical. The loading and unloading mode of products can be customized according to the needs of users to realize the matching use of equipment and automatic production line.
Performance Characteristics
1. Dispensing path motion board control, computer graphics import, debugging convenient;
2. PLC control the amount and time of glue, high precision;
3. Suitable for single component, two-component and other types of glue.
Technical Parameter
|
Model Number
|
TMAX-BJXC-GL01
|
Beat
|
60PPM
|
|
Voltage Source
|
220V 50HZ
|
Batteries
|
Cylindrical/Soft Package/Square Shell Battery
|
|
Power
|
2KW
|
Pressure
|
0.5-0.7MPA
|
|
Glue Quantity
|
0.1-0.5ML
|
Dimensions
|
1200*1350*1600(mm)
|
