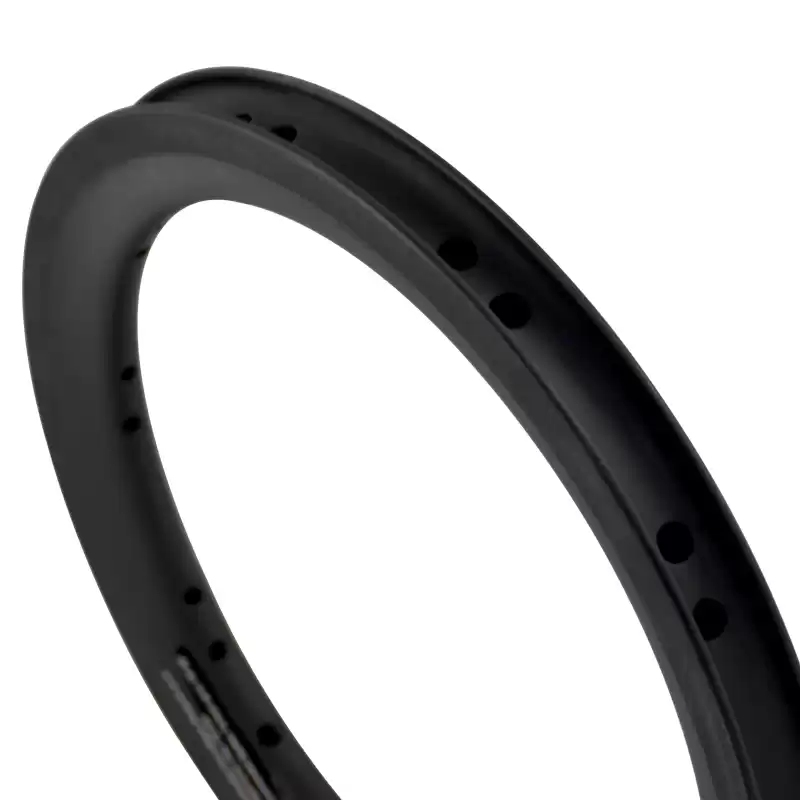

GoFast 14 inch 23mm Width 28mm Depth 255 Clincher Carbon Mini Bike Rims
Product Feature
-
23mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition.
-
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
-
4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
Specification
|
Item No.:
|
MB255-23C28
|
Rim type:
|
14 inch mini bike
|
Material:
|
Toray T700&T800 carbon fiber
|
Appearance:
|
UD / 3K / 12K
|
Finish:
|
Matte / Glossy
|
Depth:
|
28mm
|
Width:
|
Outer width:23mm, Inner width:17mm
|
ERD:
|
221mm
|
OD:
|
266mm
|
ETRTO:
|
255mm
|
Weight:
|
170±15g
|
Drills:
|
10-36H
|
Tire Size :
|
14"-255*1 1/4,*1 3/8
|
Geometry
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
