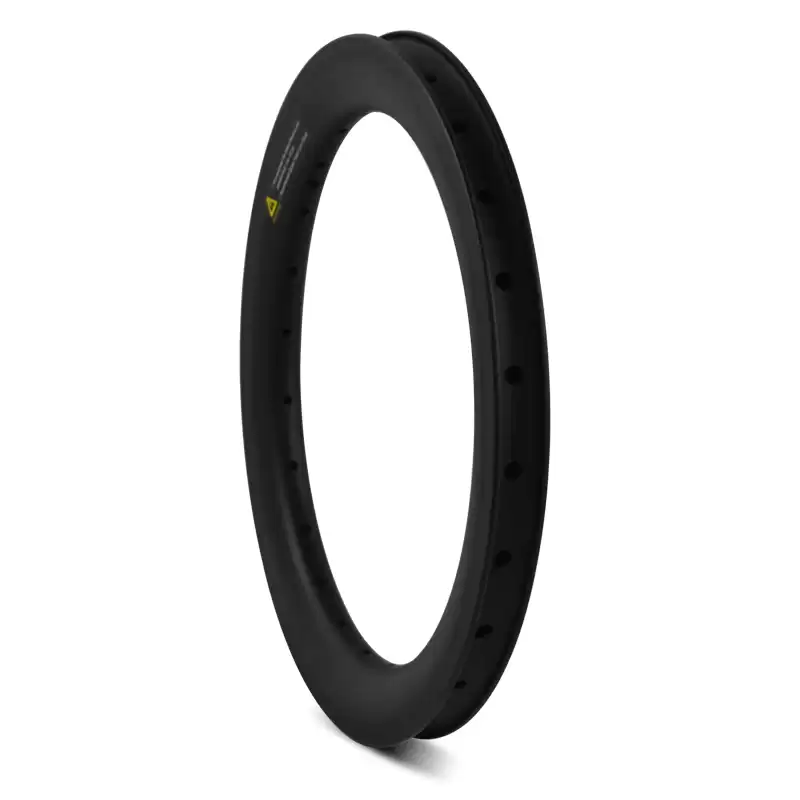

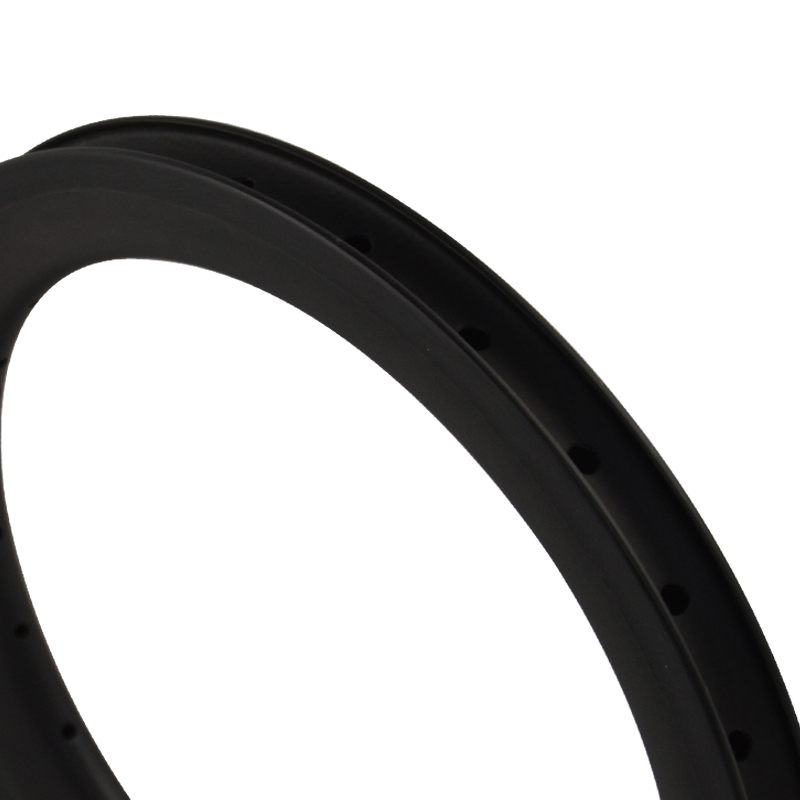

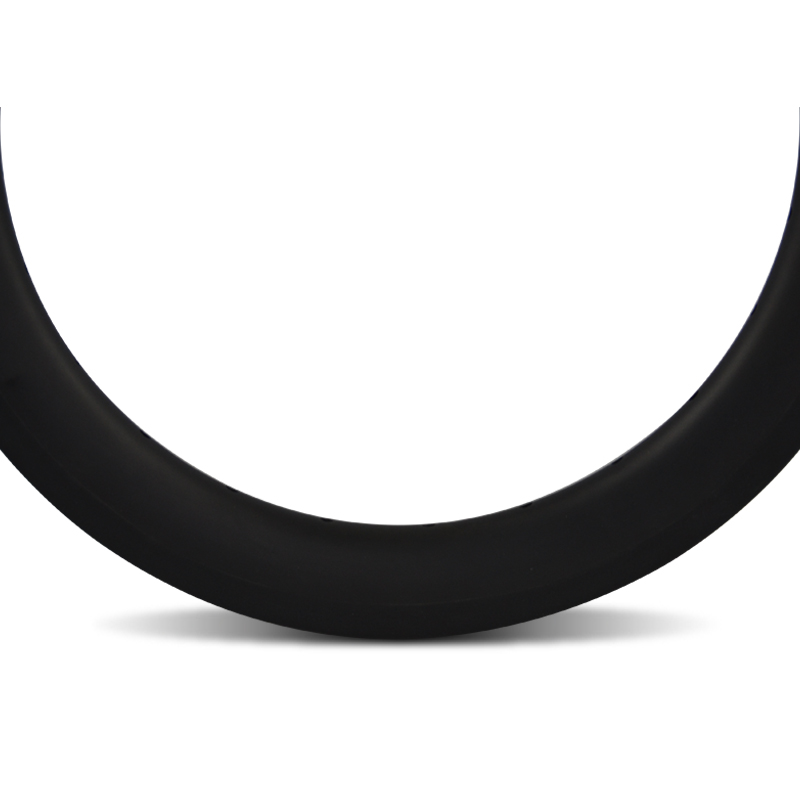

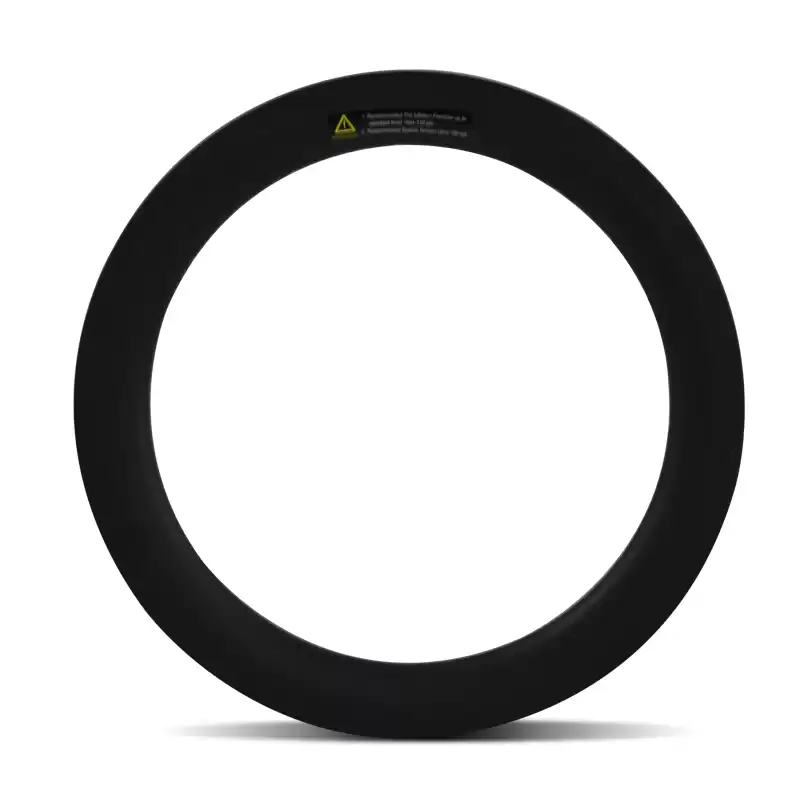

GoFast 16 Inch 25mm Width 35mm Depth 305 Carbon Clincher Rims For Folding Bike
Product Feature
-
Ultra light material. We use lighter materials and make full use of the combination of T700 and T800 to improve the strength.
-
Custom drilling. Customize the number of spoke holes for you to match different hubs.
-
Wider rim system offers improved aerodynamics, better handling in crosswinds condition and faster riding.
Specification
|
Item No.:
|
MB305-25C35
|
Rim type:
|
16 inch mini bike
|
Material:
|
Toray T700&T800 carbon fiber
|
Appearance:
|
UD / 3K / 12K
|
Finish:
|
Matte / Glossy
|
Depth:
|
35mm
|
Width:
|
Outer width:25mm, Inner width:18mm
|
ERD:
|
257mm
|
OD:
|
316mm
|
ETRTO:
|
305mm
|
Weight:
|
250±15g
|
Drills:
|
10-36H
|
Tire Size :
|
16"-305*1.35-1.95
|
|
Valve Hole Dia.:
|
6.5mm
|
|
Assembly Hole Dia.:
|
7.5mm
|
|
Weight Limit:
|
150kg
|
|
Max Spoke Tension:
|
130kgf
|
|
Max Tire Pressure:
|
120psi
|

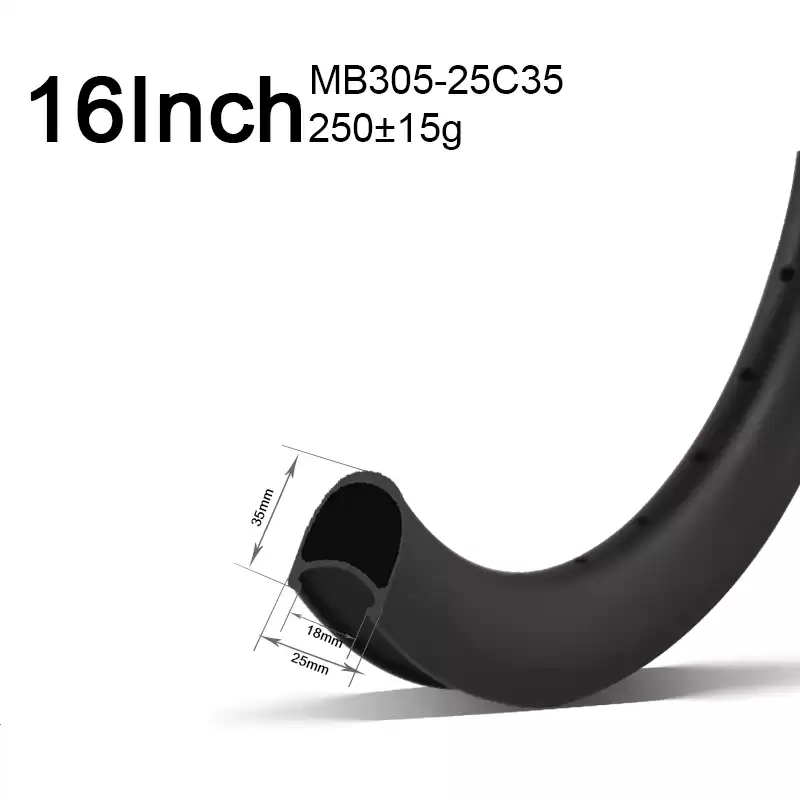

Geometry
BM305-25C35 Overview
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
