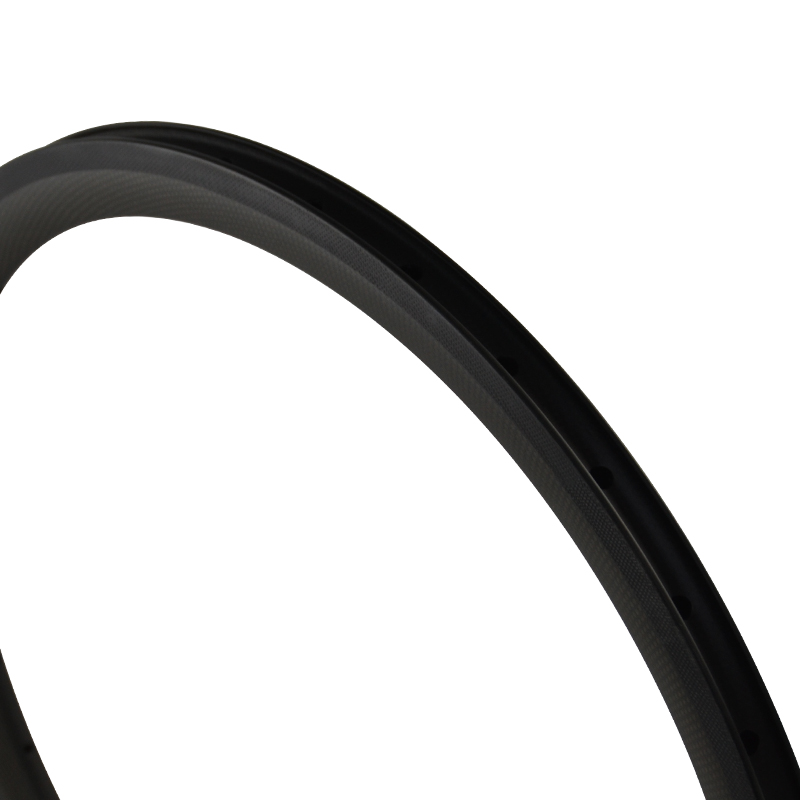

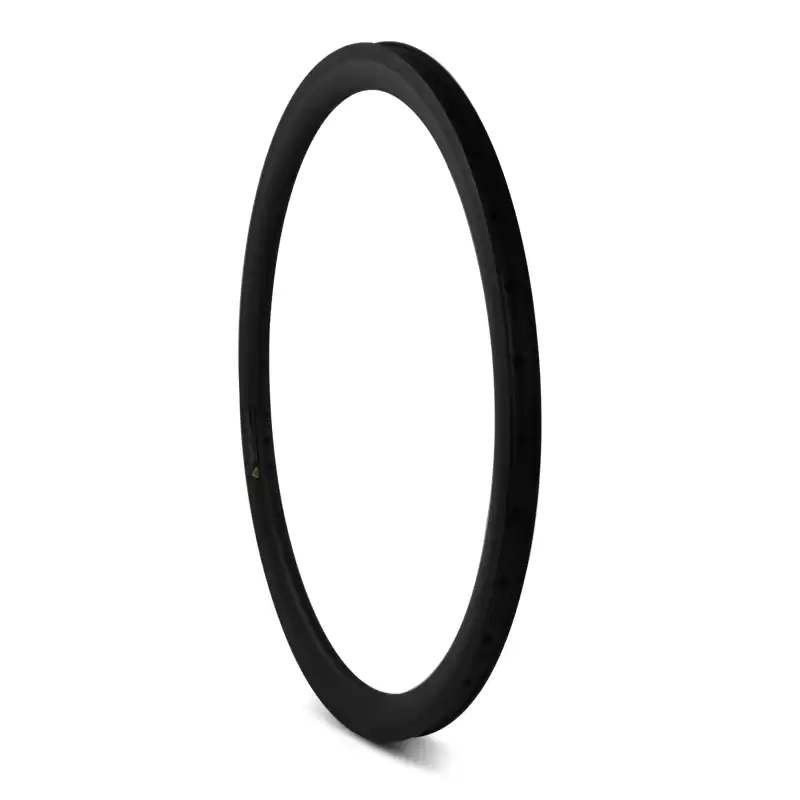

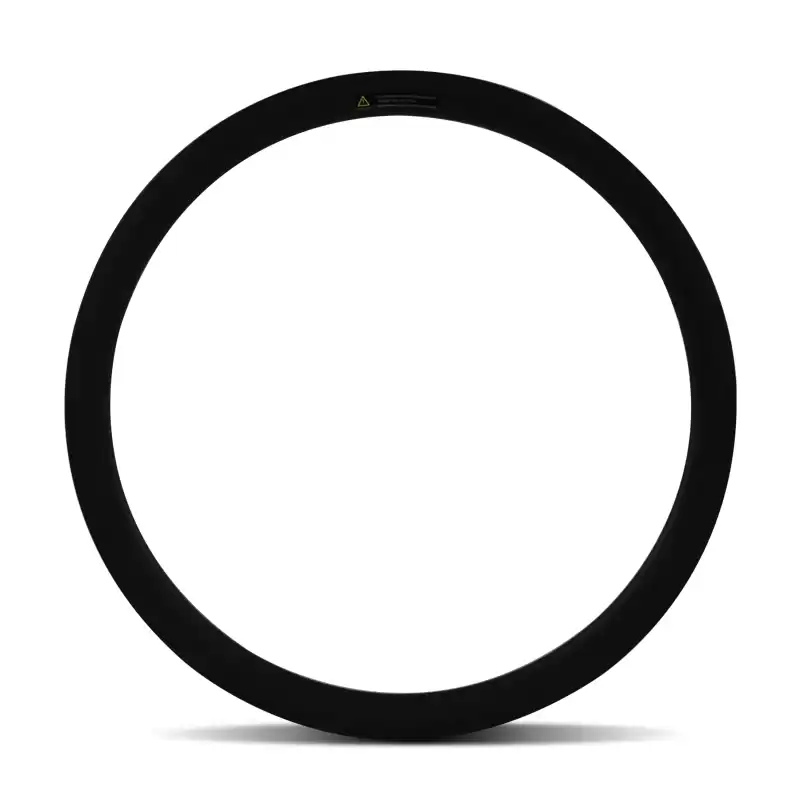

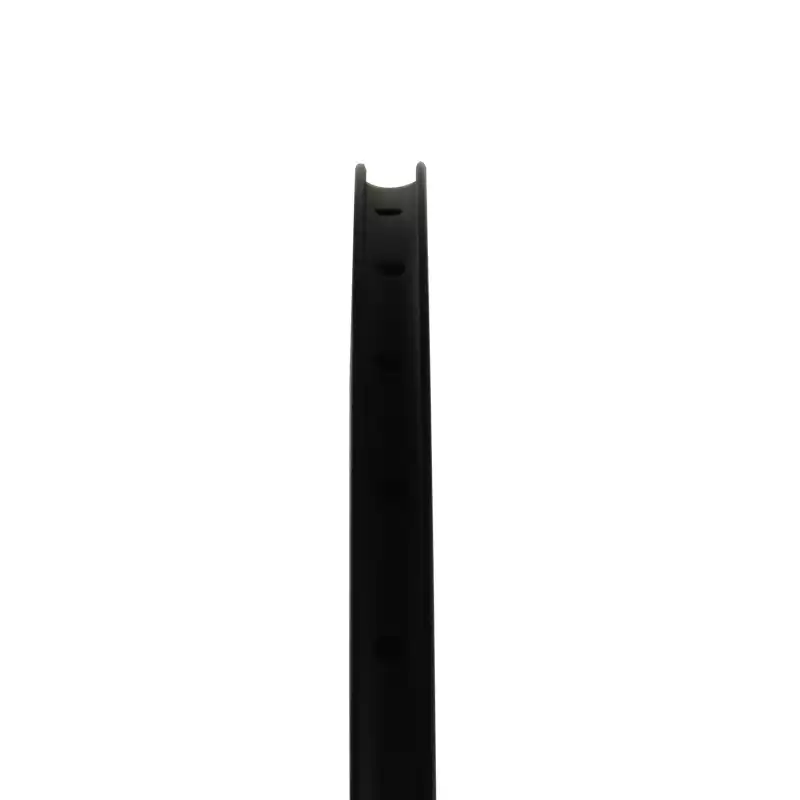

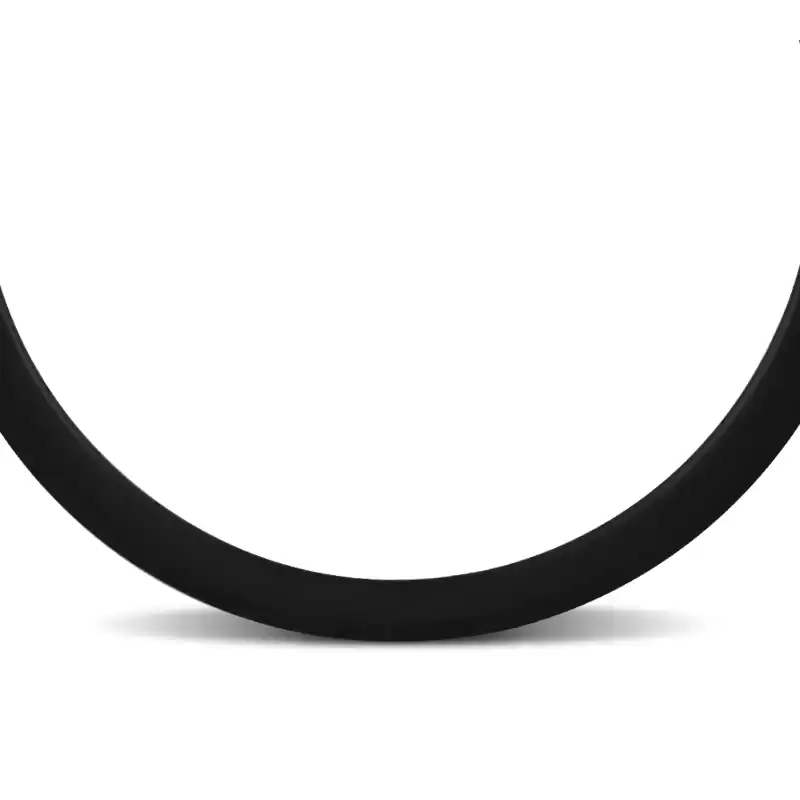

GoFast 24 Inch Clincher 23mm Width 35mm Depth 520 Bmx Bike Carbon Rims
Product Feature
-
Extra 23mm Wide Design. Extra 23mm wide aerodynamic bmx rims, stable and better handling performance.
-
Clincher Ready. Rims Clincher Compatible, for better traction and riding experience.
-
4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
-
U aerodynamic shape makes road tubeless rims lightweight but still stiff, keeping them stable in cross winds condition.
Specification
|
Item No.:
|
BMX507-23C35
|
Rim type:
|
24 inch BMX bike
|
Material:
|
Toray T700&T800 carbon fiber
|
Appearance:
|
UD / 3K / 12K
|
Finish:
|
Matte / Glossy
|
Depth:
|
35mm
|
Width:
|
Outer width:23mm, Inner width:16mm
|
ERD:
|
470mm
|
OD:
|
529mm
|
ETRTO:
|
520mm
|
Weight:
|
410±15g
|
Drills:
|
16-36H
|
Tire Size :
|
24"-520*1.0, *1 1/8
|
Rider Weight Limit:
|
80kg
|
Max Tire Pressure Limit:
|
85PSI/4.5bar
|
Standard:
|
EN Standard
|
Geometry
BMX520-23C38 Overview
Manufacturing process:
Carbon rims are made in one piece molding, each rim is made by one piece long carbon fiber, no wrinkles, to make the strength of rim is the strongest. And we use a unique process to remove the air bladder from the valve hole, so that the rim does not have to be patched like traditional manufacturers use.
Read More For Production Of Carbon Rims By DCH Factory
100% Quality Inspection:
DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.
Read More For Testing Of Carbon Rims By DCH Factory
