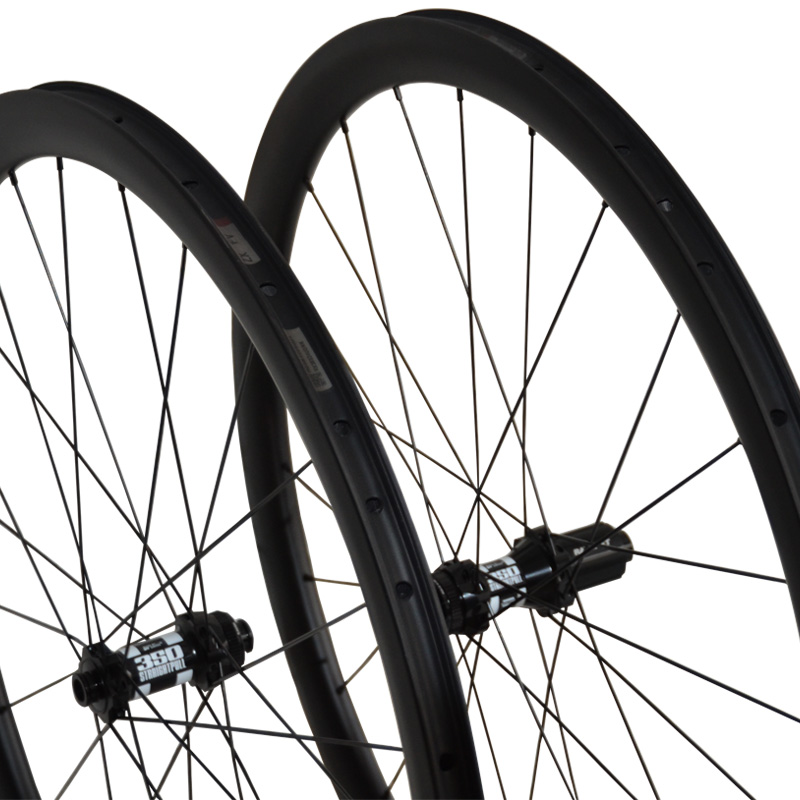

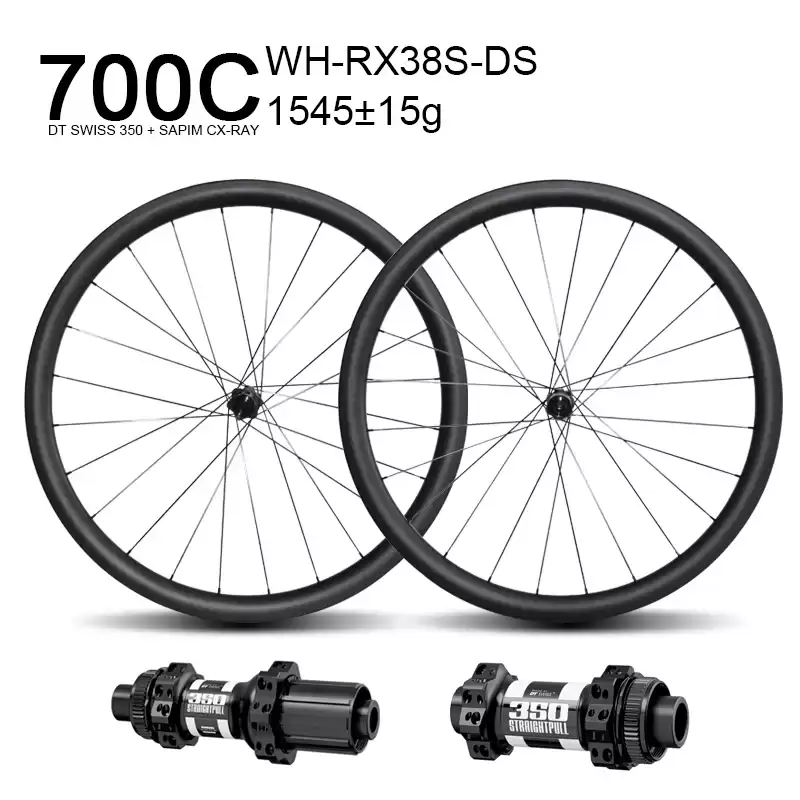

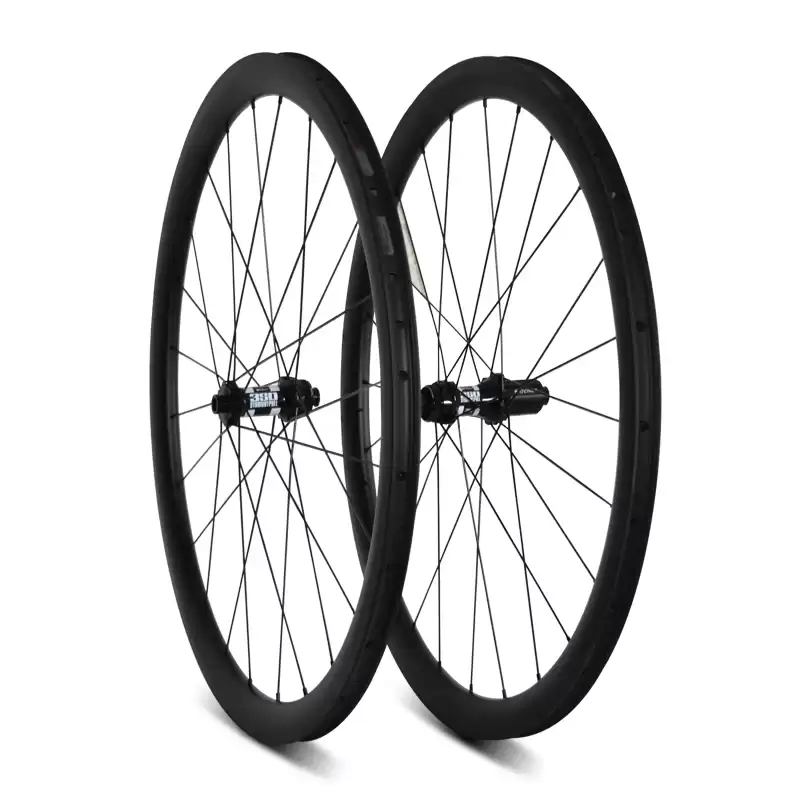

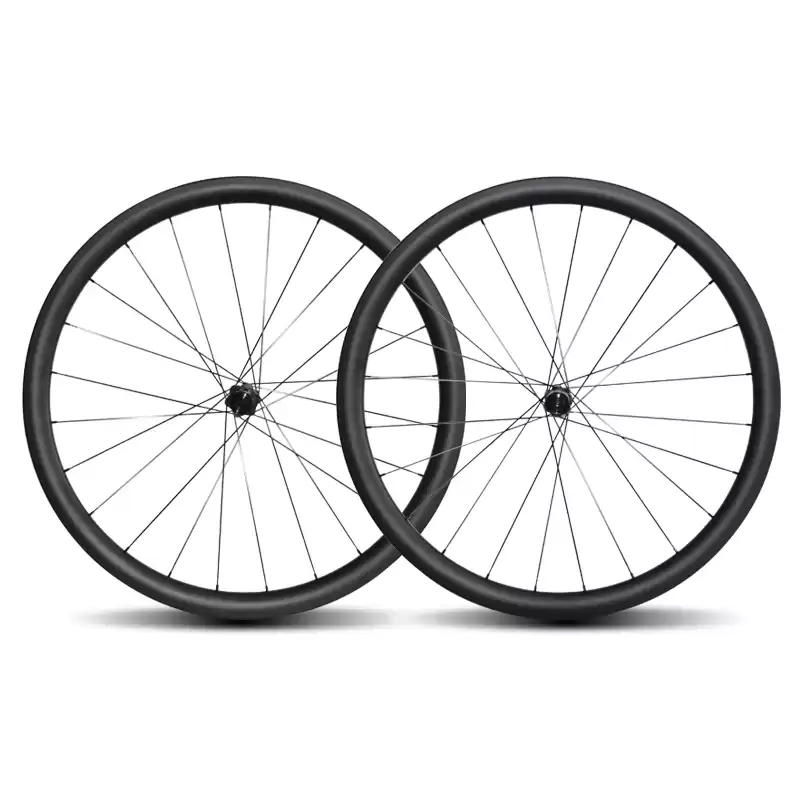

GoFast 700C DT Swiss 350 Hub Disc Brake 25mm Width 38mm Depth Carbon Road Bicycle Wheelset

GoFast 700c road bicycle wheelset is constructed from Toray T700 & T800. Lightweight Carbon Wheelset with DT Swiss 350 Hub and Sapim cx-ray Spokes.



GoFast 700C DT Swiss 350 Hub Disc Brake 25mm Width 38mm Depth Carbon Road Bicycle Wheelset


Product Feature

  • A strong and seriously wide yet lightweight carbon rim, with an aero-rounded profile for excellent handling and speed.
  • Toray T700/T800 unidirectional and 3K weave carbon-fibre with 3K weave bed and spoke areas.
  • High TG resin provides extremely reliable braking and durability for longer descents. We lab test all our rims to very high braking temp (200 C) to push their limits.
  • 4D Drill Technology. The 4 directions angled spoke drilling holes that follow the path of the spokes. Make the rim greater strength and durability.
  • UCI test.We have professional testing equipment.All our carbon rims and wheels can pass uci test.


Specification

Item NO.:

WH-RX38S-DS
Braking System:
Disc Brake
Applicable Bicycle:
Road Bicycles
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
20H 24H
Rim Width:
25mm
Rim Depth:
38mm
Rim ERD:
567mm
Type:
Tubeless
Wheelset Weight: 1545±15g
Hub:
DT Swiss 350
Spokes:
Sapim cx-ray
Maximum Rider Weight:
110kg
Warranty:
2 Years

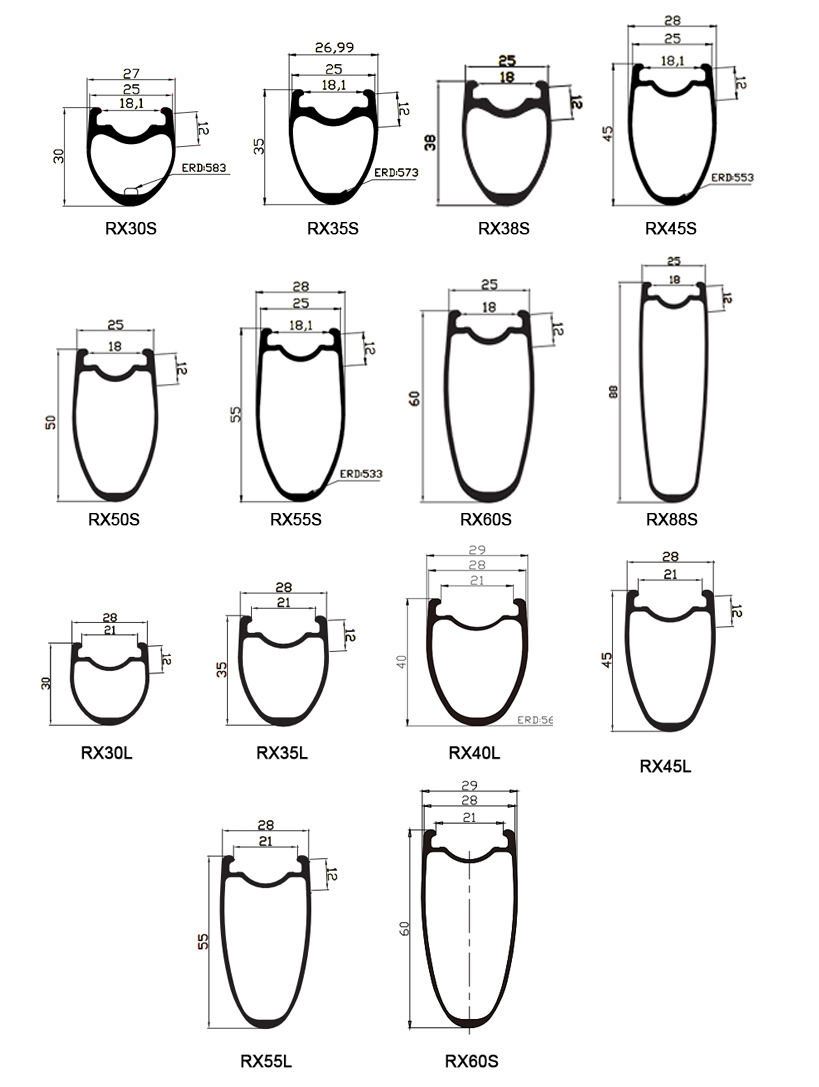

Rim Geometry

38mm depth rims

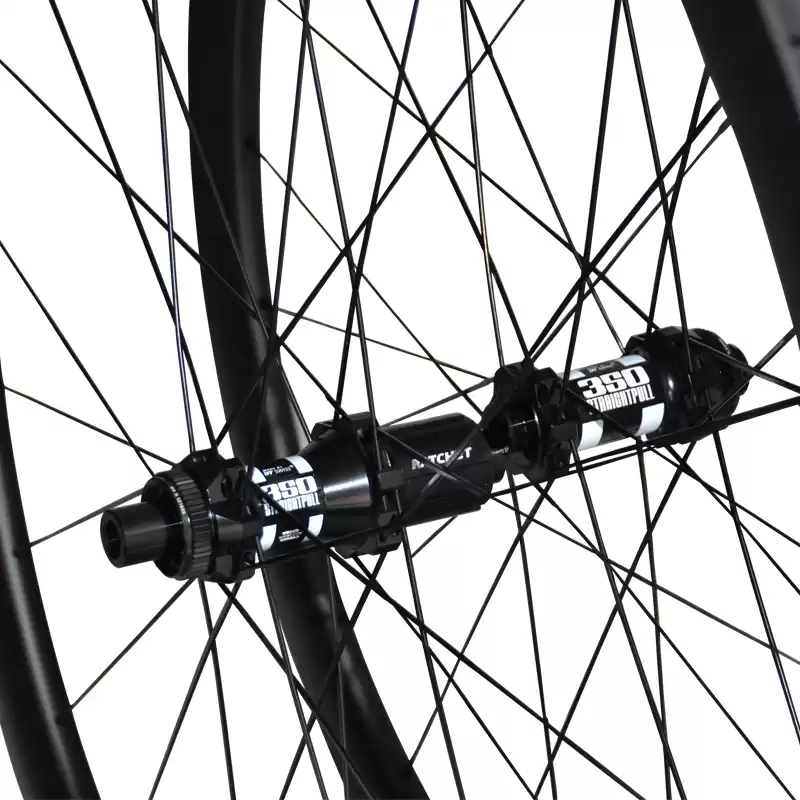

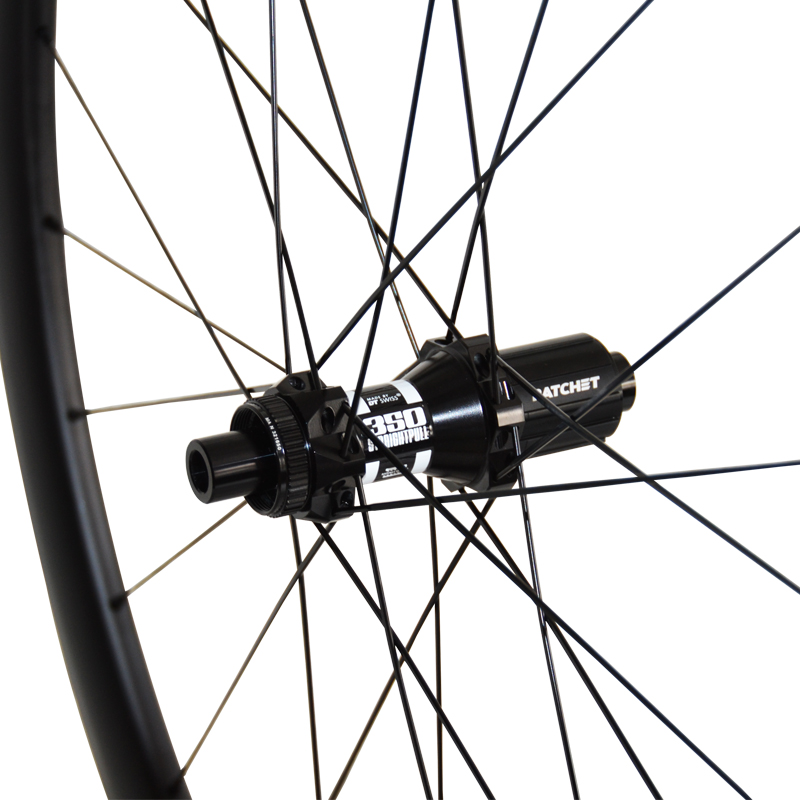

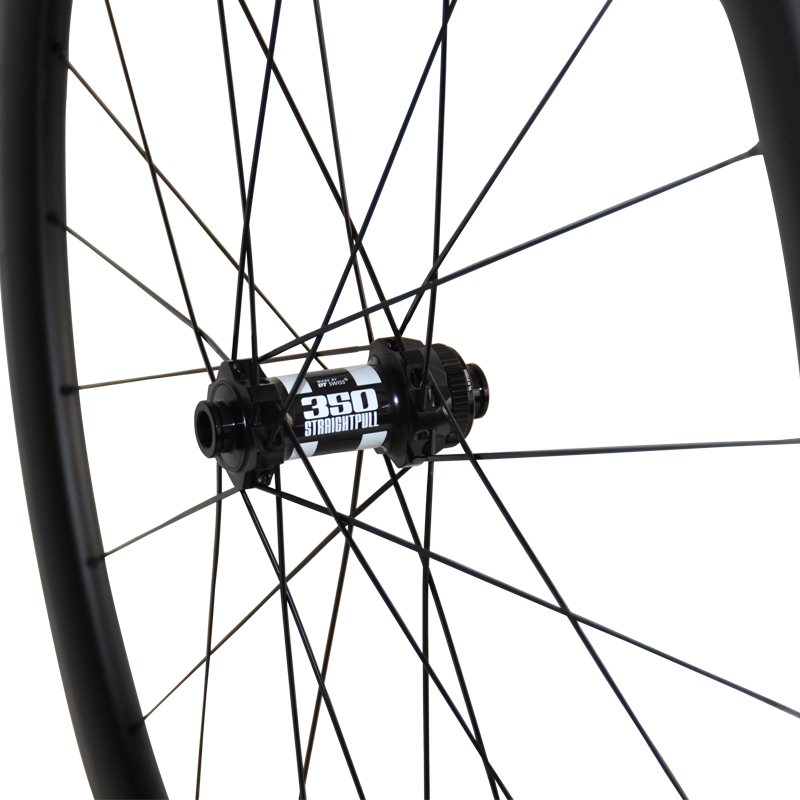

Hubs

dt swiss 350 hubs


Tubeless Lightweight Carbon Road Wheelset Info

Model
Rim
Rim Type
Rim Width
Rim Depth
Hub
Spokes
Weight(±3%)
WH-RX30S-DS
RX30S Tubeless
25mm
30mm DT Swiss 350
Sapim cx-ray
1450g
WH-RX35S-DS
RX35S 35mm Sapim cx-ray
1470g
WH-RX38S-DS
RX38S 38mm Sapim cx-ray
1500g
WH-RX45S-DS
RX45S 45mm Sapim cx-ray
1550g
WH-RX50S-DS
RX50S 50mm Sapim cx-ray
1580g
WH-RX55S-DS
RX55S 55mm Sapim cx-ray
1640g
WH-RX60S-DS
RX60S 60mm Sapim cx-ray
1680g
WH-RX88S-DS
RX88S 88mm Sapim cx-ray
2020g
WH-RX30L-DS
RX30L 28mm
30mm Sapim cx-ray
1460g
WH-RX35L-DS
RX35L 35mm Sapim cx-ray
1480g
WH-RX40L-DS
RX40L 40mm Sapim cx-ray
1500g
WH-RX45L-DS
RX45L 45mm Sapim cx-ray
1520g
WH-RX55L-DS
RX55L 55mm Sapim cx-ray
1640g
WH-RX60L-DS
RX60L 60mm Sapim cx-ray
1700g

carbon tubeless rims

WH-RX38S-DS Overview


Manufacturing process:

Carbon rims are made in one piece molding, each rim is made of one piece of long carbon fiber, with no wrinkles, to make the strength of the rim is the strongest. And we use a unique process to remove the air bladder from the valve hole so that the rim does not have to be patched as traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory


100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
