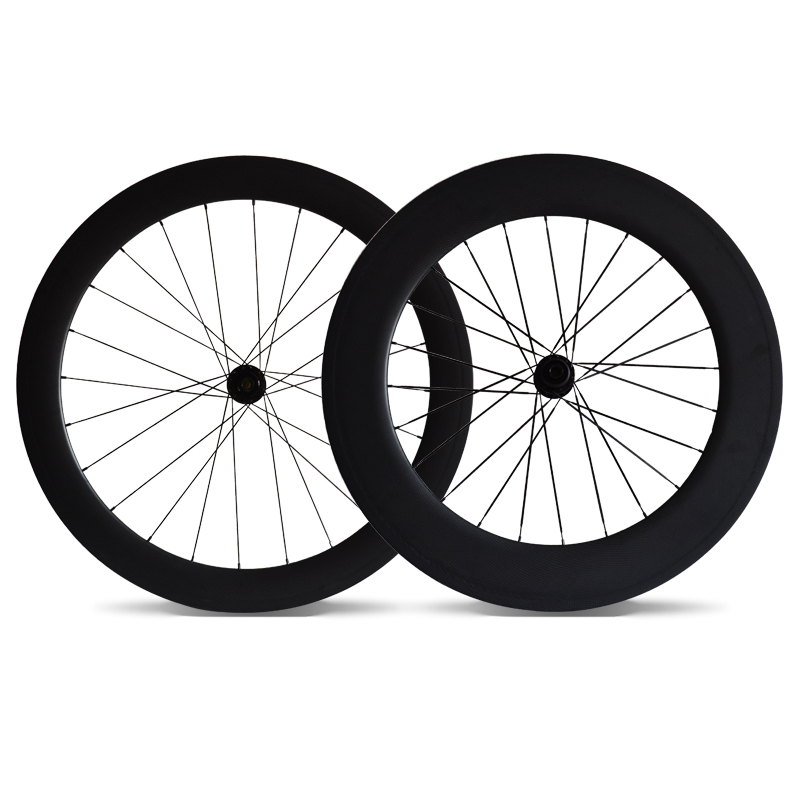

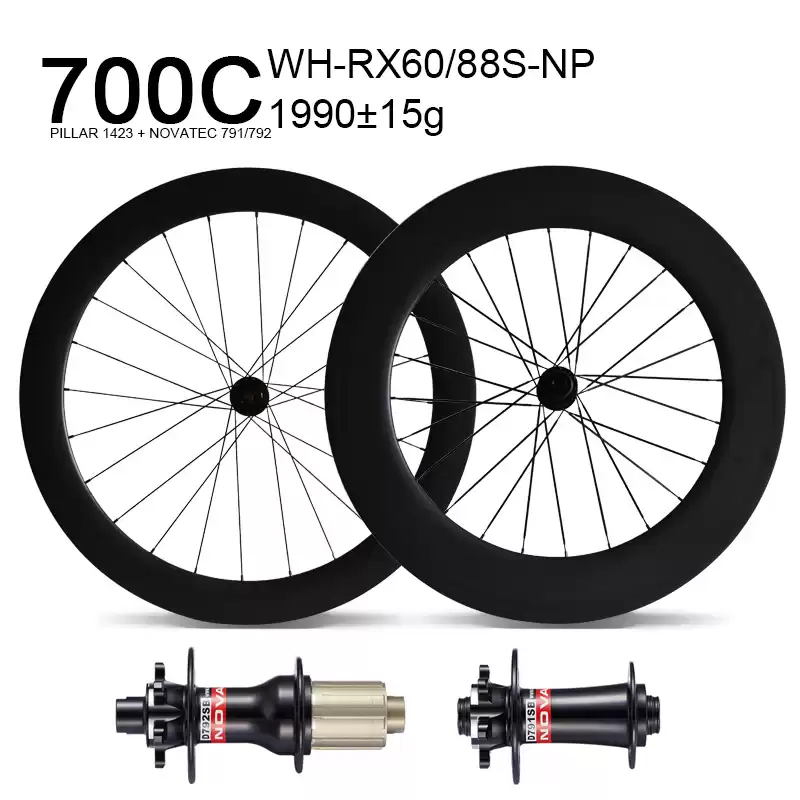

GoFast 700C Novatec 791 792 Hubs 25mm Width 60mm 88mm Depth Road Carbon Wheelset

GoFast 25mm width road carbon wheels are constructed from Toray T700&T800. The Depth of the front wheel is 60mm and the rear wheel is 88mm.



GoFast 700C Novatec 791 792 Hubs 25mm Width 60mm 88mm Depth Road Carbon Wheelset


Product Feature

  • Tubeless Technology. Compatible with both clincher and tubeless tires. No rim sealing tapes needed for tubeless tires with SAT technology wheelset. Faster and easier to install tubeless tires
  • Braking Surface Technology. High Temperature Resin+1K Carbon. Better Heat-Dissipation / Longer Braking Lifetime.
  • U-Shapen Rim Design. DCH has been developing and continually improving its wheelset design since 2010. Through relentless design optimization, customer feedback, and research, DCH has developed a highly advanced U-shaped profile that offers numerous advantages. DCH designed rim profiles provide excellent stability in crosswinds while offering industry-leading performance and speed.
  • The Fastest Carbon Wheels. DCH carbon wheels perform as well or better than competing brands in independent tests in a variety of conditions.
  • Ultra light material. The rims are made from premium Toray T700 and T800 carbon fiber for the best strength-to-weight ratio at any cost.


Specification

Item NO.:

WH-RX60/88S-NP
Braking System:
Disc Brake/Rim Brake
Applicable Bicycle:
Road Bicycles
Appearance:
UD/3K/12K
Finishing:
Matte/Glossy
Material:
Full carbon fiber (Toray T700 and T800)
Spoke Hole:
24H
Rim Width:
25mm
Rim Depth:
F:60mm  R:88mm
Rim ERD:
F:523mm  R:469mm
Type:
Tubeless
Hub:
Novatec 791/792SB
Spokes:
Pillar 1423
Front Wheel Weight:
865±15g
Rear Wheel Weight:
1125±15g
Maximum Rider Weight:
120kg
Warranty:
2 Years

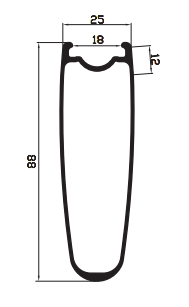

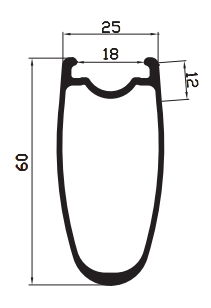

Rim Geometry

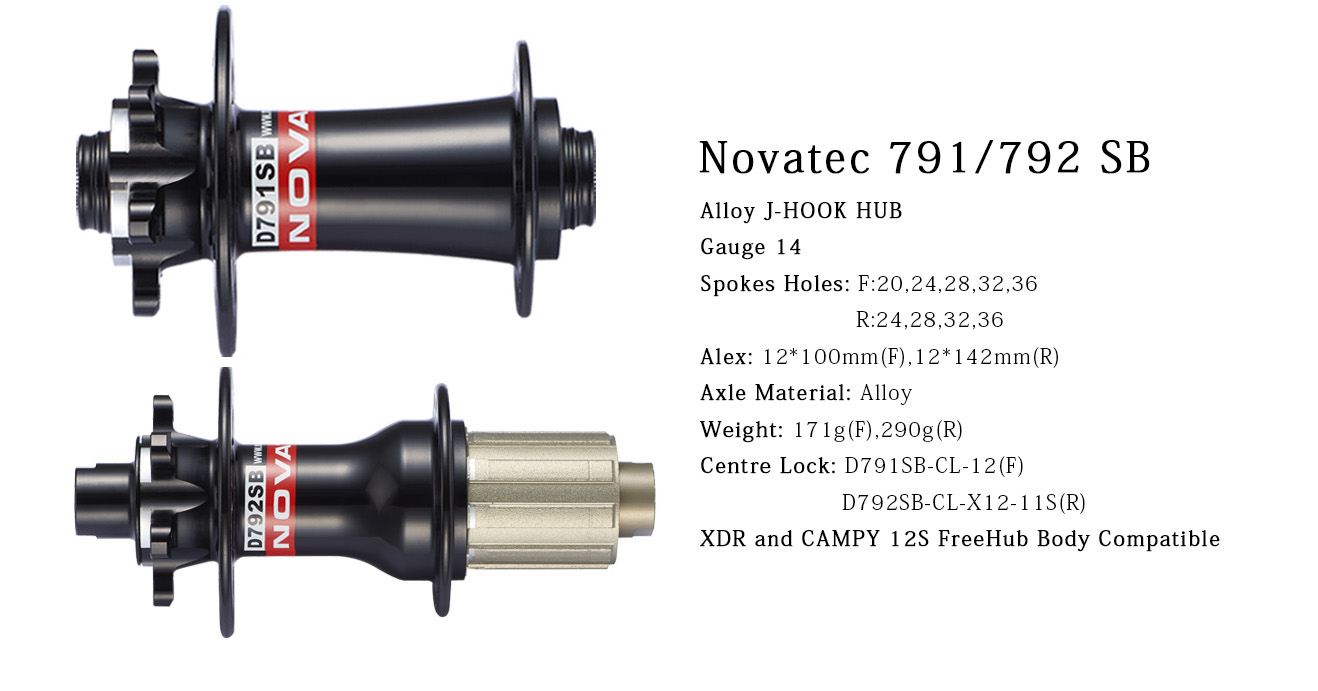

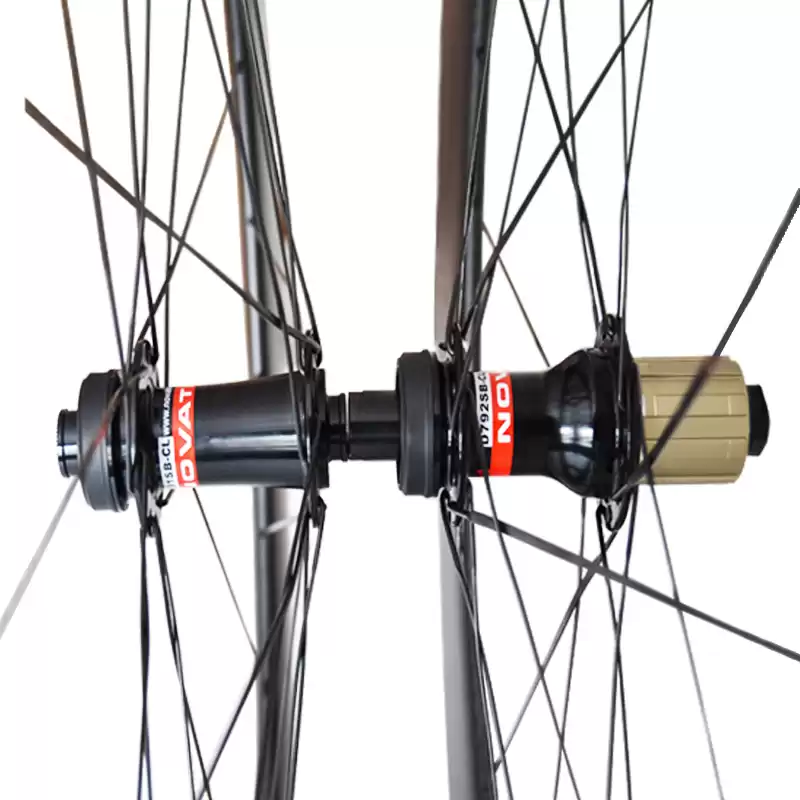

Hubs

25mm Width Tubeless Carbon Road Rims Info


25mm road carbon rims

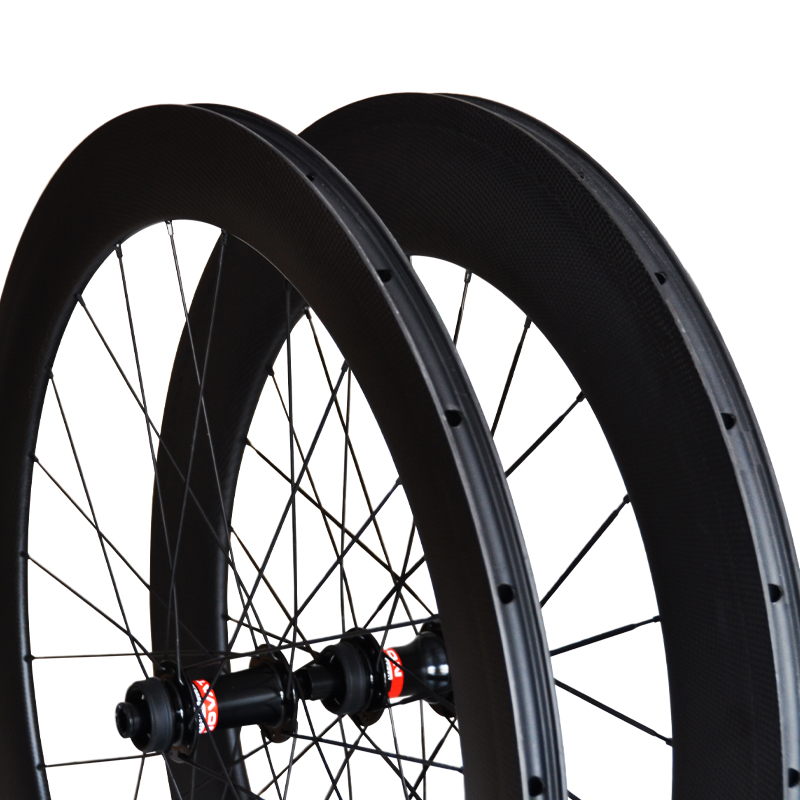

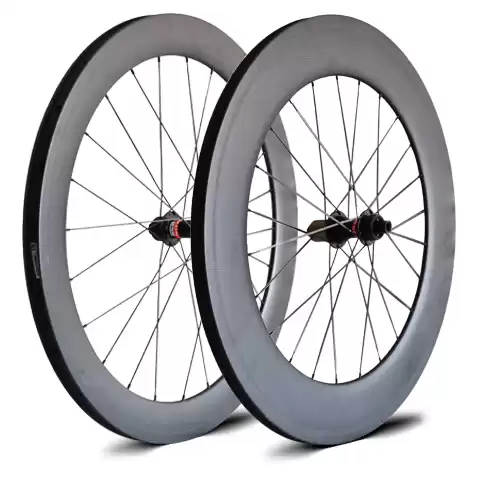

25mm Width Tubeless Carbon Road Wheels Info

25 width road wheels


Manufacturing process:

Carbon rims are made in one piece molding, each rim is made by one piece of long carbon fiber, with no wrinkles, to make the strength of the rim is the strongest. And we use a unique process to remove the air bladder from the valve hole so that the rim does not have to be patched as traditional manufacturers use.

Read More For Production Of Carbon Rims By DCH Factory


100% Quality Inspection:

DCH conducts a 100% quality inspection and records it in the database. Each carbon fiber rim has a unique ID number, which allows us to provide the highest quality products and track each rim to ensure the best after-sales service.

Read More For Testing Of Carbon Rims By DCH Factory
