Gold-Coated 304SS 2032 Coin Cell Cases With Spacer And Spring
SPECIFICATIONS
One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring. 300-500A thick Gold coating inside case by plasma sputtering coater
MOQ：10set/bag
Material: SS304, gold plated.
Aluminum, Platinum, Silver coating on coin cell case inside are available upon request
|
Coin
cell cases
|
|
Dimensions
(Dia x Height)
|
20
mm x 3.2 mm
|
|
Material
|
Stainless
Steel 304 Case
Inner
sides are gold coated to improve anti-corrosive resistance
Polypropylene
Sealing Gasket
|
|
Weight
|
0.12Oz
|
Optional
( Gold coated Spring & Spacer )
|
Coin
Cell Spacer
|
|
Dimensions
(Dia x Height)
|
15.5mm
Diam x 0.5 mm（Thickness
optional）
|
|
Weight
|
0.1
Oz
|
|
Coin
Cell Spring
|
|
Dimensions
(Belleville Washers)
|
14.5
mm O.D x 10.25 mm I.D x (1.2±0.05) mm Height
(from
Crest to Trough) x 0.3mm Thickness
|
|
Dimensions
(Conical spring)
|
15.4
mm dia x (1.2±0.03) mm height x 0.2mm thickness
|
|
Weight
|
0.1
Oz
|
Product Display

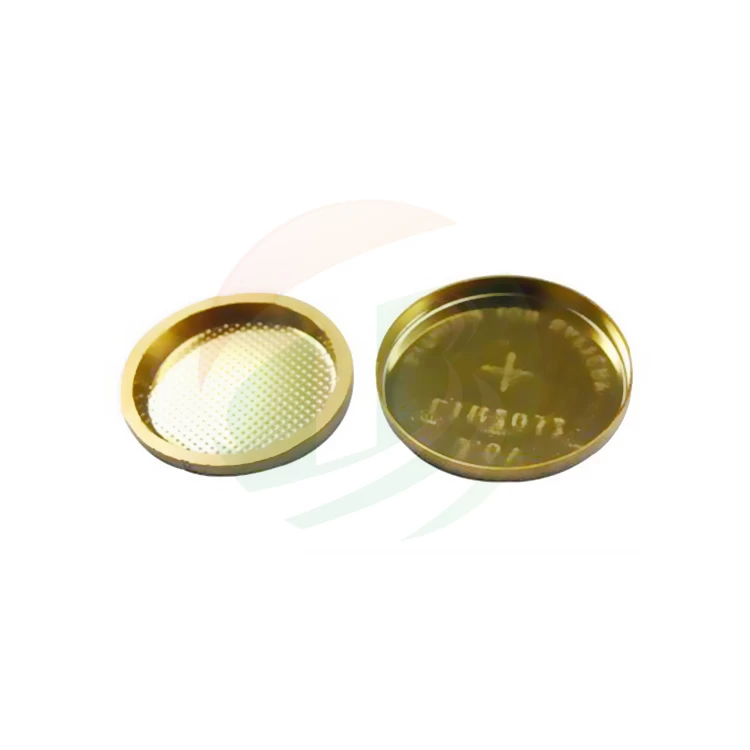

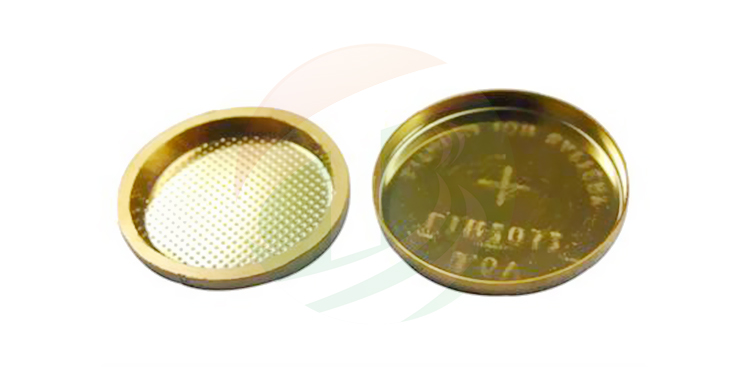

Gold-Coated 304SS 2032 Coin Cell Cases

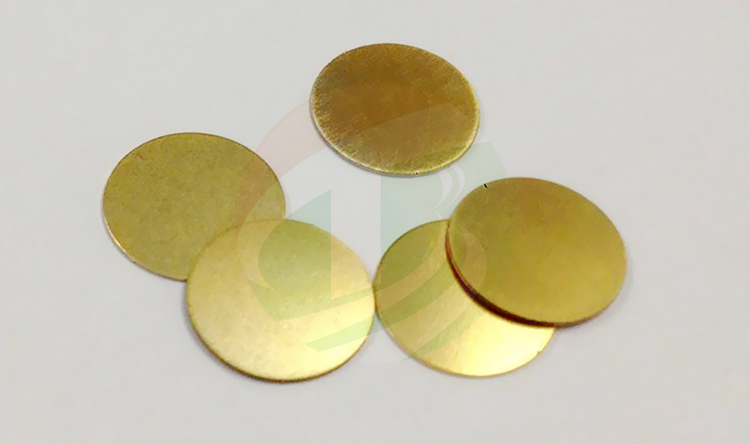

Coin Cell Spacer

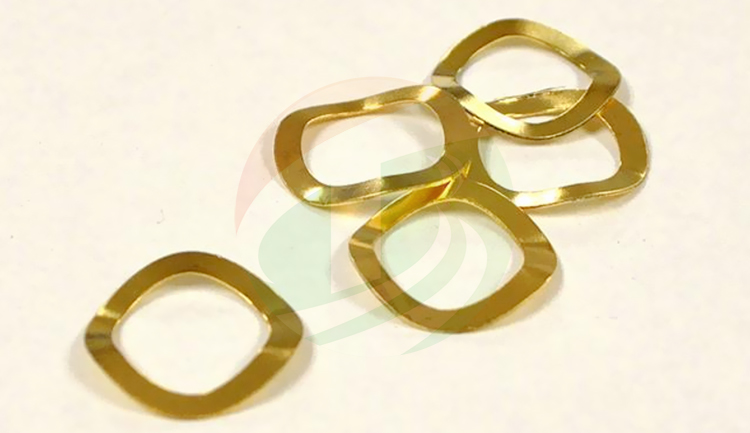

Coin Cell Spring
