Gold melting crucible for Mineral Assaying-CS CERAMIC Standard Size


Gold melting crucible used for lab muffle furnace,fire assay crucibles for melting glass.Used for smelting and assaying ,excluding gold and silver elements, more accurate test results, high temperature resistance and resistance to thermal shock . The average serial can be used for 3-5 times






  • Place of Origin:Hunan (China)
  • Material:Fire clay
  • Free sample:Available
  • Size:Full size

Item Name :Gold melting crucible for Mineral Assaying-CS CERAMIC Standard Size


Advantage:
1.Long Lasting, can be used many times.
2.High mechanical strength designed to withstand severe thermal shocks.

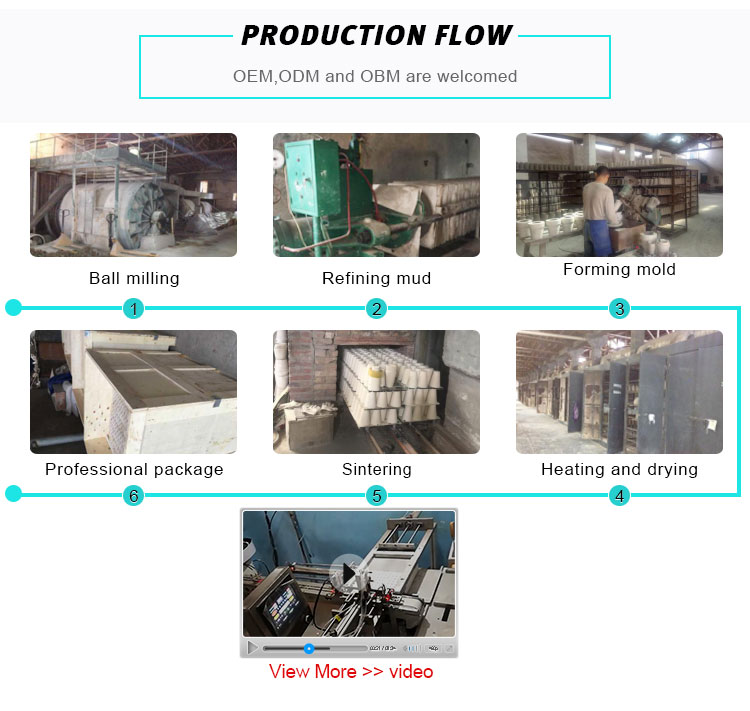

3.Special formula, curing and pressing process.
4.Multi-use crucible.
5.Can withstand extremely corrosive fire assay environments.
6.Can withstand repetitive thermal shocks from 1300 degree celcius to room temperature.



Size details :

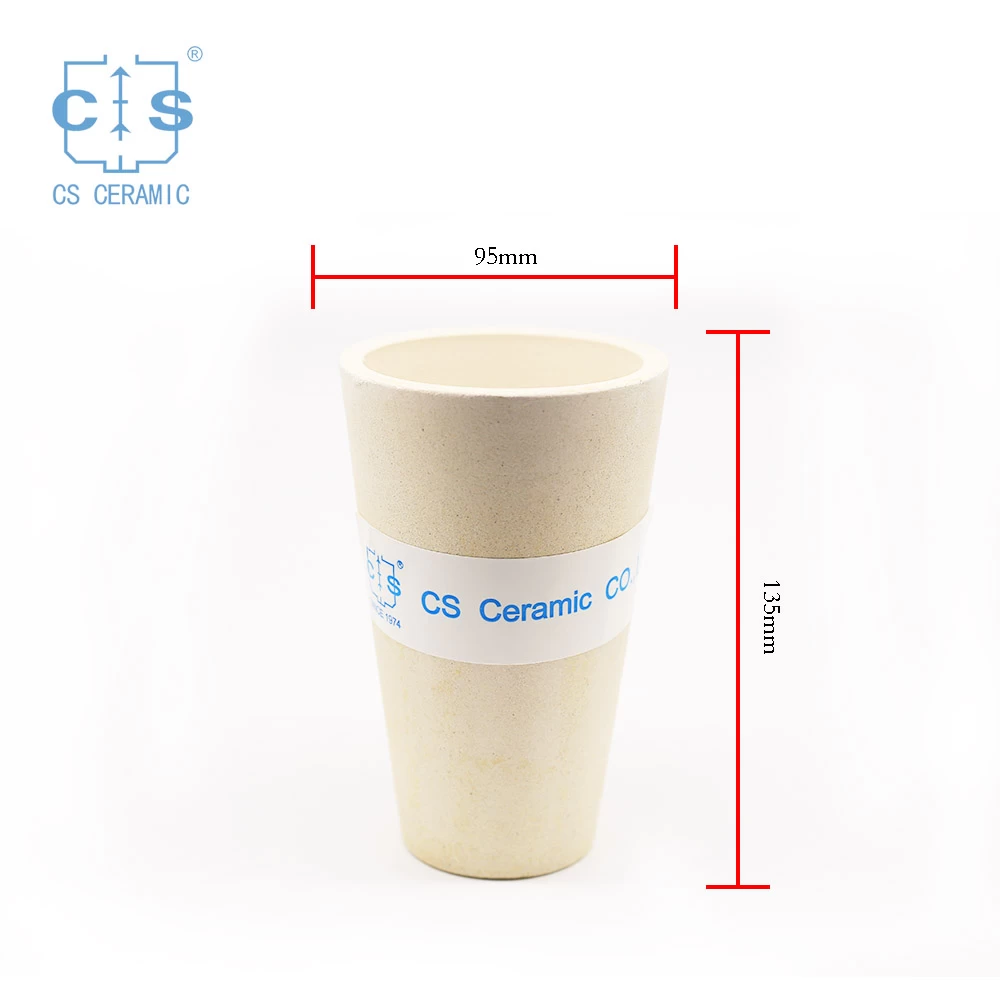

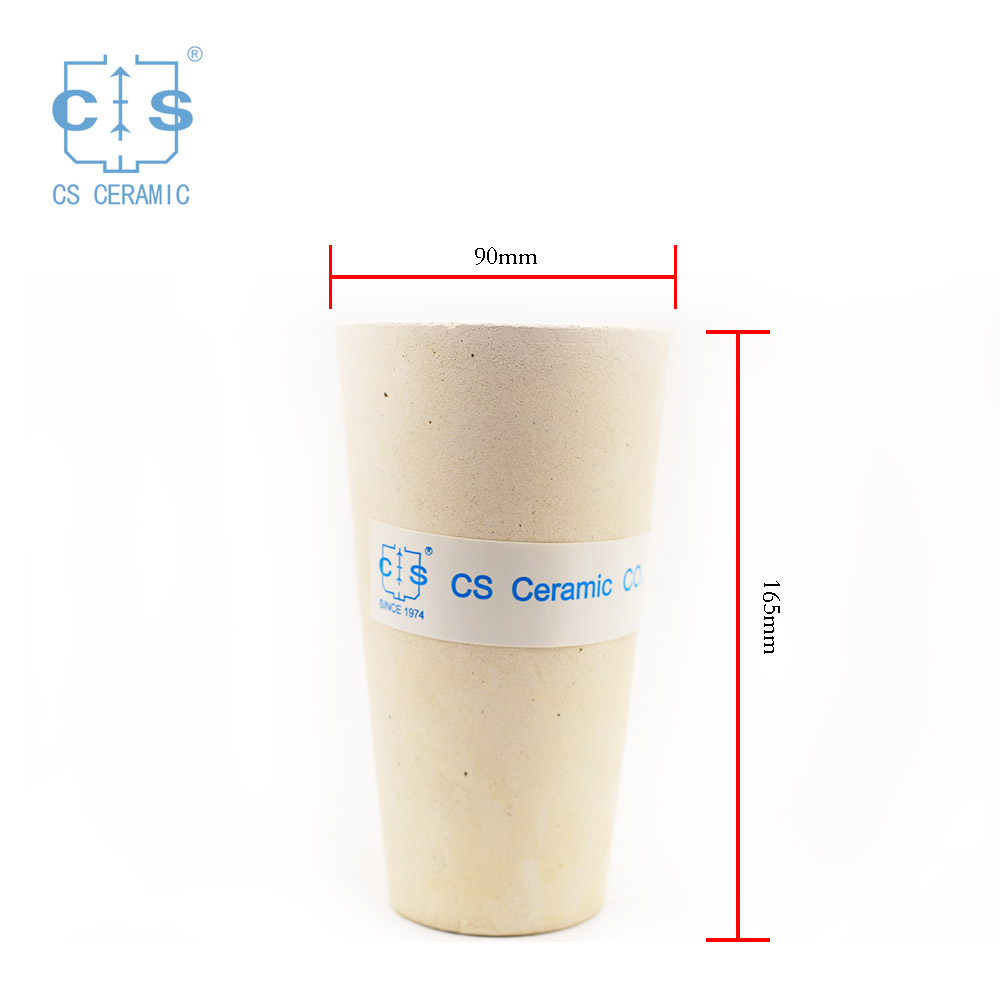

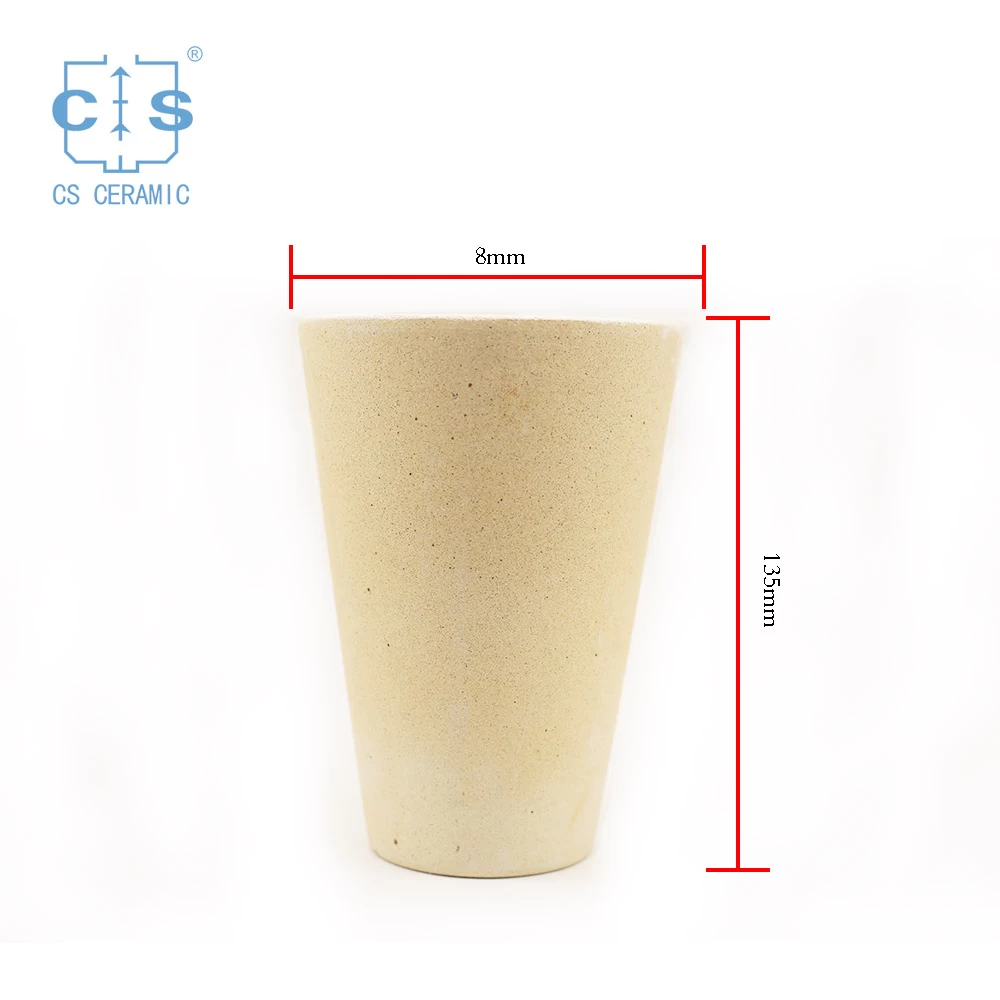

Fire assay crucible CS CERAMIC Standard Size
ID( Outsideh Inside Bottom
Model NO. OD(mm) mm) eight (mm) height (mm) OD (mm)
CS-F-1 80 70 80 66 55
CS-F-2 85 72.5 135 120 55
CS-F-3 90 78 105 85 55
CS-F-4 93 80 115 95 55
CS-F-5 95 80 125 105 55
CS-F-6 93 82 135 110 55
CS-F-7 95 82 135 115 55
CS-F-8 90 80 155 136 55
CS-F-8A 110 95 155 135 55
CS-F-8C 90 84 165 150 55

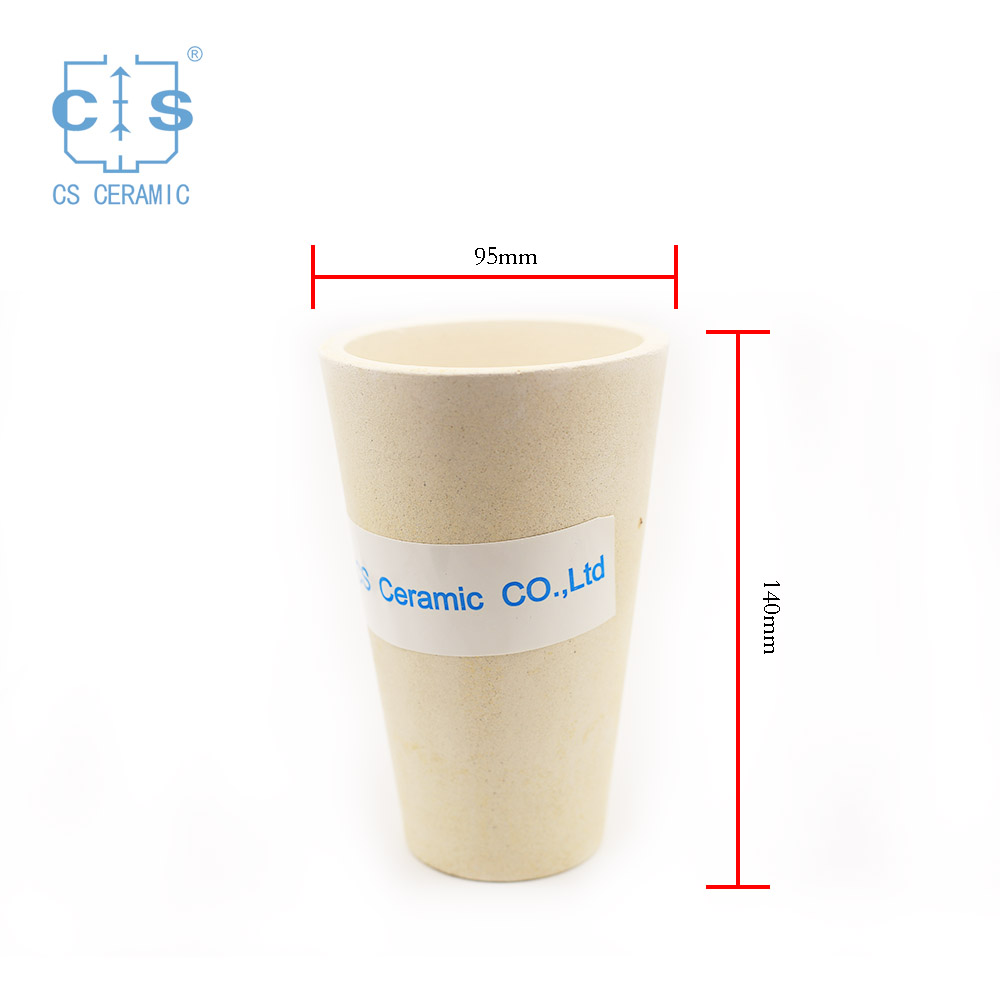

CS-F-9 95 83 140 118 55
CS-F-10 80 62 130 110 42
CS-F-11 90 82 132 120 55
CS-F-12 88 80 132 118 50
CS-F-13 100 85 145 130 60
CS-F-14 108 90 140 125 55
CS-F-15 105 95 155 132 55
CS-F-16 90 80 165 150 60


Usage:
Used for smelting and assaying ,including gold and silver elements, more accurate test results, high temperature resistance and resistance to thermal shock . The average serial can be used for 3-5 times


Crucibles for melting crucible have a higher than normal resistency to cracking under fire assay conditions. Our crucibles and refractory products are used in laboratories throughout international marketplace. We have a variety of shapes and sizes available to cater to specifications required.


CS CERAMIC crucibles for gold melting give longer life, faster melting, constant melting speed and exceptional resistance to violent changes of temperature.



clay fire assay crucibles wholesale

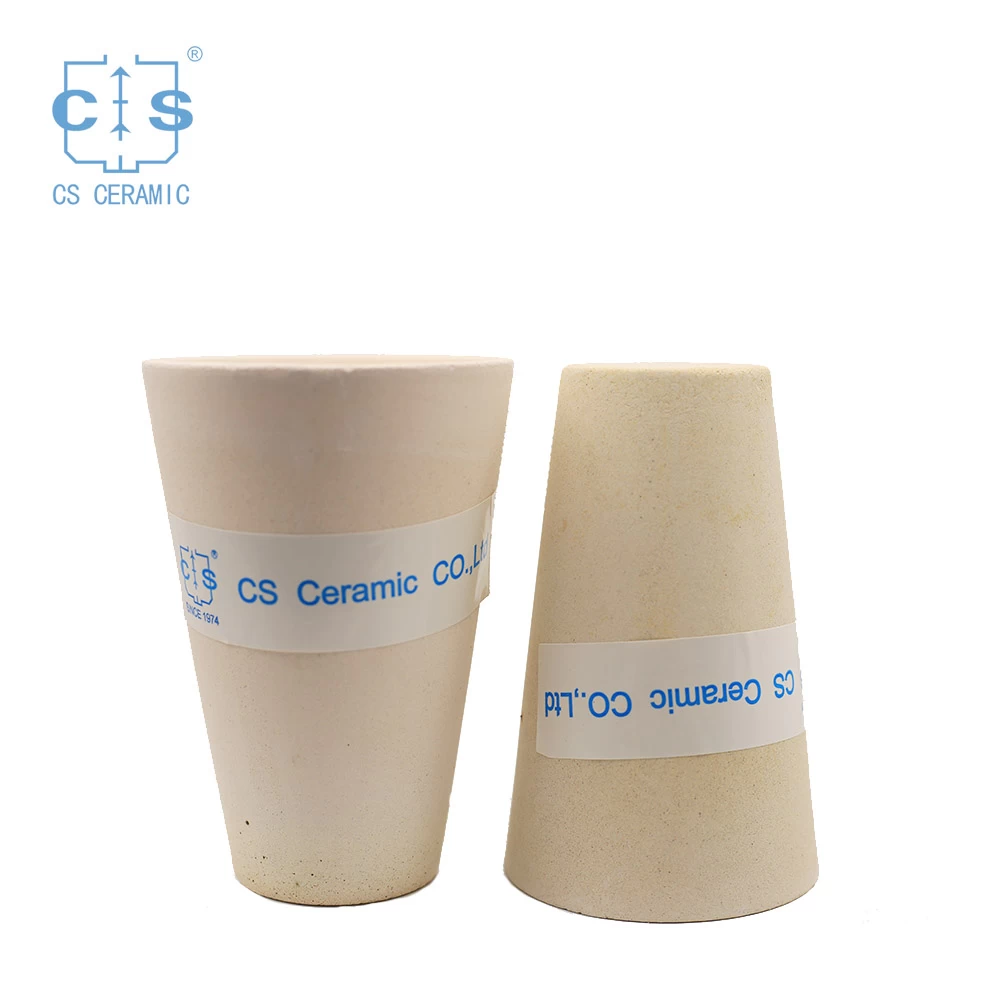

More Picture of clay crucibles:

fireclay fire assay crucibles

 fire clay crucible fire assay crucible for metallurgy crucible     fire assay crucibles for mining industry

More information, please contact us freely.  info@csceramic.com
