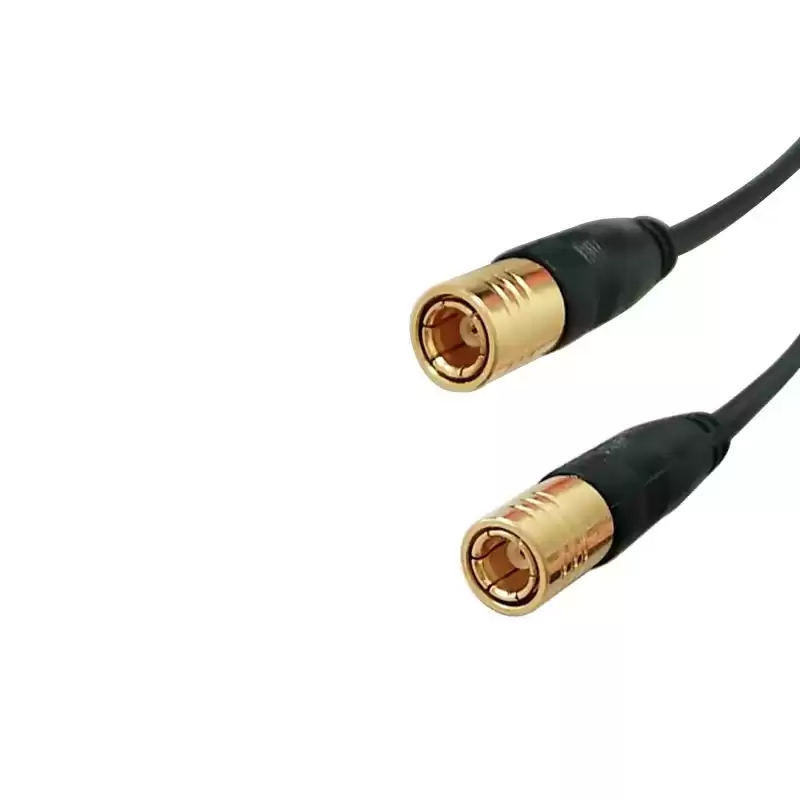

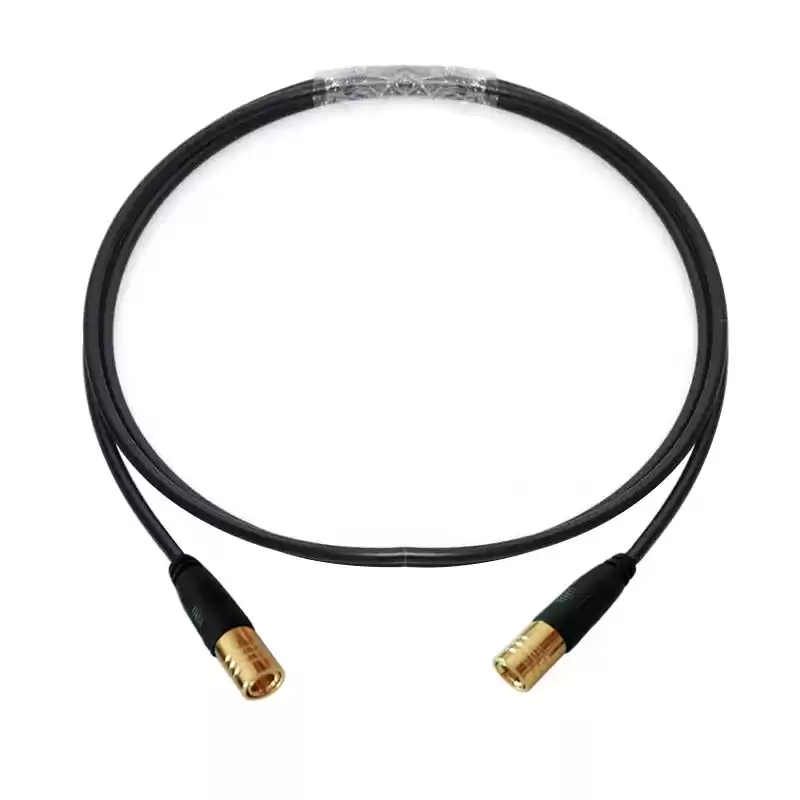

Gold Plated Antenna SMB Plug Female Straight to SMB Plug Female Straight Connector Assembly with RG174 Jumper Cable
SMB Cable assembly Features:
- Can be combined with BNC, MMCX, N, SMA, SMB or UHF connector;
- Body Can be bulkhead or standard mount connectors;
- Body Can be right angle or straight connectors;
- Cable Can use flexible, formable or semirigid cable.
Gold Plated Antenna SMB Plug Female Straight to SMB Plug Female Straight Connector Assembly with RG174 Jumper Cable
The SMB cable assembly can use corrugated, flexible, formable or semirigid coaxial cable such as LMR100, LMR195, RG141, RG142, RG174, RG178, RG179, RG180, RG188, RG196, RG223, RG316, RG400, RG405, RG58 or RG59 cable; the body of SMB to SMB cable assembly is right angle or straight connectors which is plug to pin or jack to pin gender. This SMB plug to SMB plug cable assembly uses a 50ohm straight SMB for connector 1 and a 50ohm straight SMB for connector 2, Cable is 50ohm flexible cable type RG174.
Specifications
ELECTRICAL DATA | |
Connector 1 Series | SMB |
Connector 1 Style | Str Plug |
Cable Type | RG174 |
Connector 2 Series | SMB |
Connector 2 Style | Str Plug |
Contact Termination | Solder |
Shield Termination | Crimp |
Impedance (Ohms) | 50 |
Low PIM | No |
Max Frequency | 4GHz |
Working Temperature | -65°C to +165°C |
MATERIAL DATA | |
Body Material | Brass |
Body Finish | Nickel/Ternary alloy |
Contact Material | Phosphor Bronze/Beryllium Copper |
Contact Finish | Gold/Silver |
Insulator Material | PTFE |
Applications
- Antennas
- Base Stations
- Radio Boards
- Global Positioning System (GPS)
- Instrumentation
- PC/LAN
