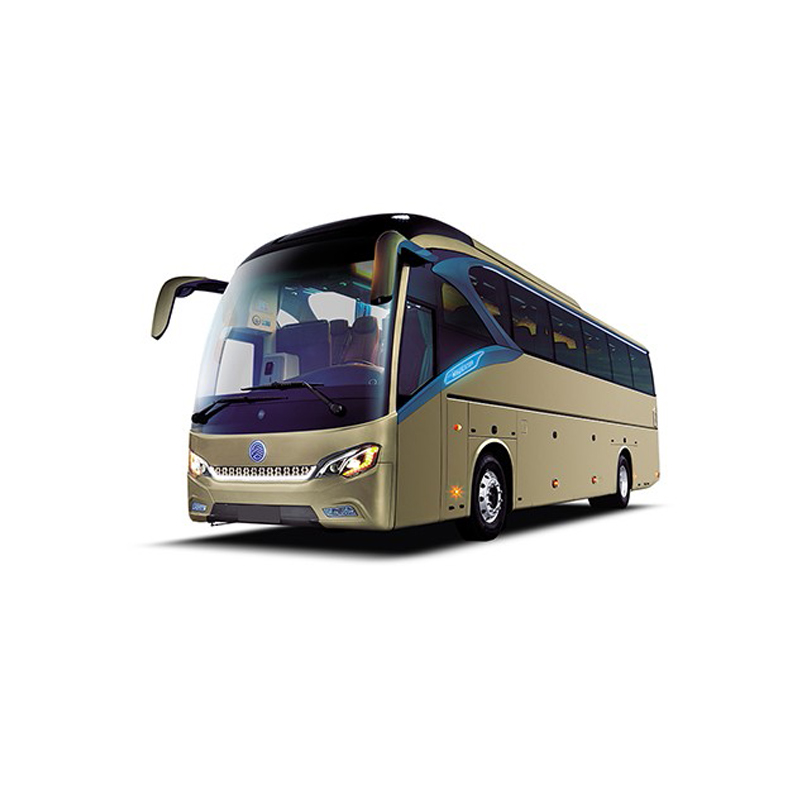

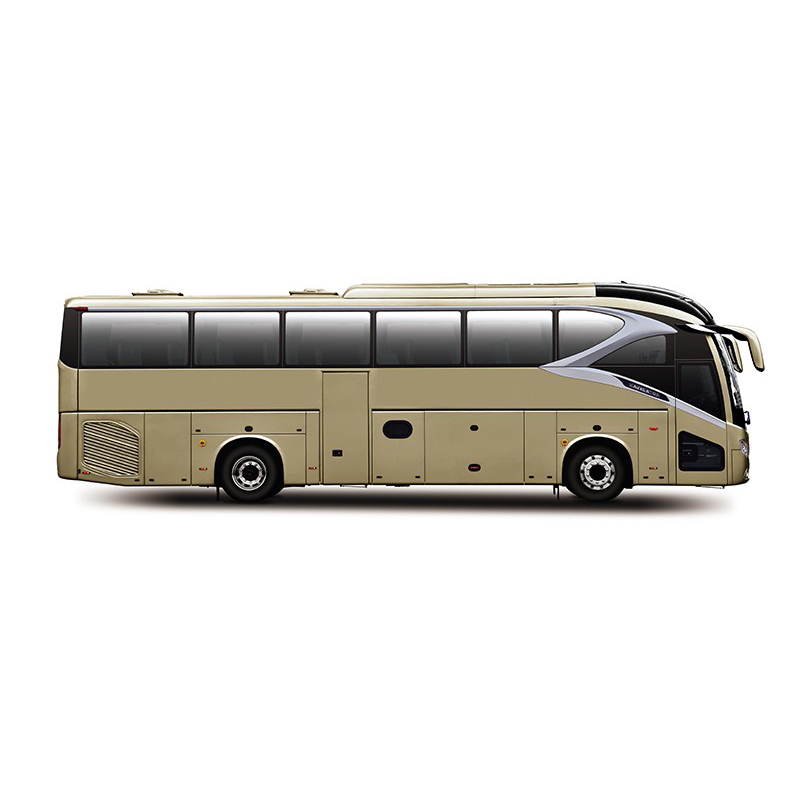

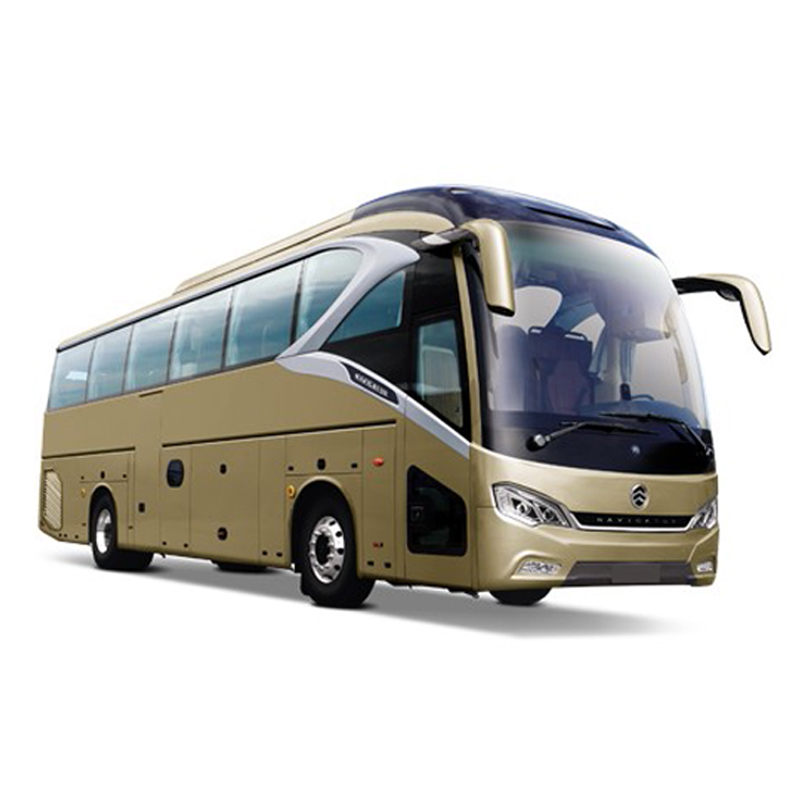

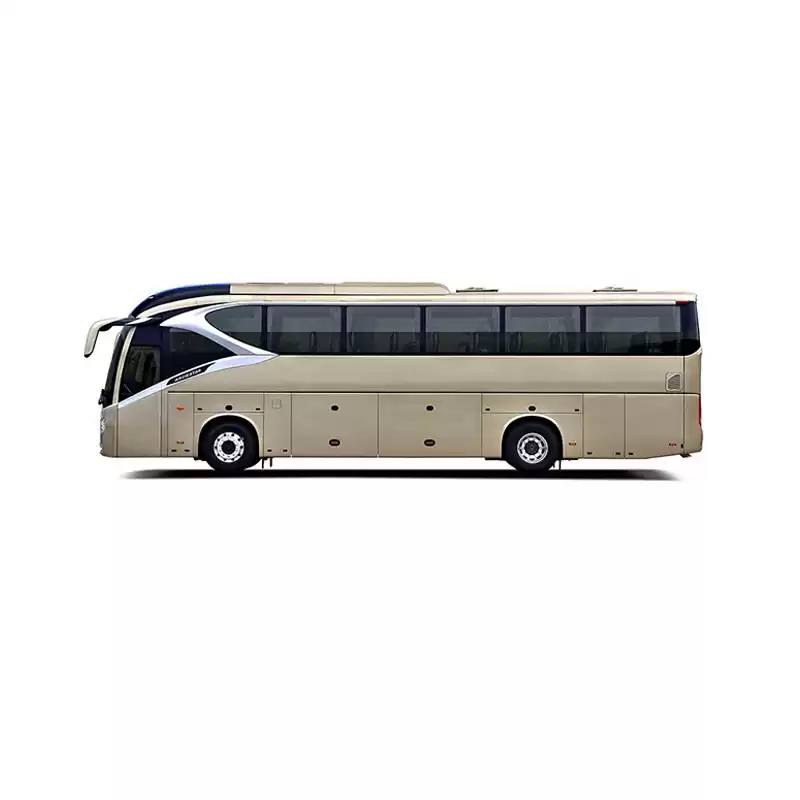

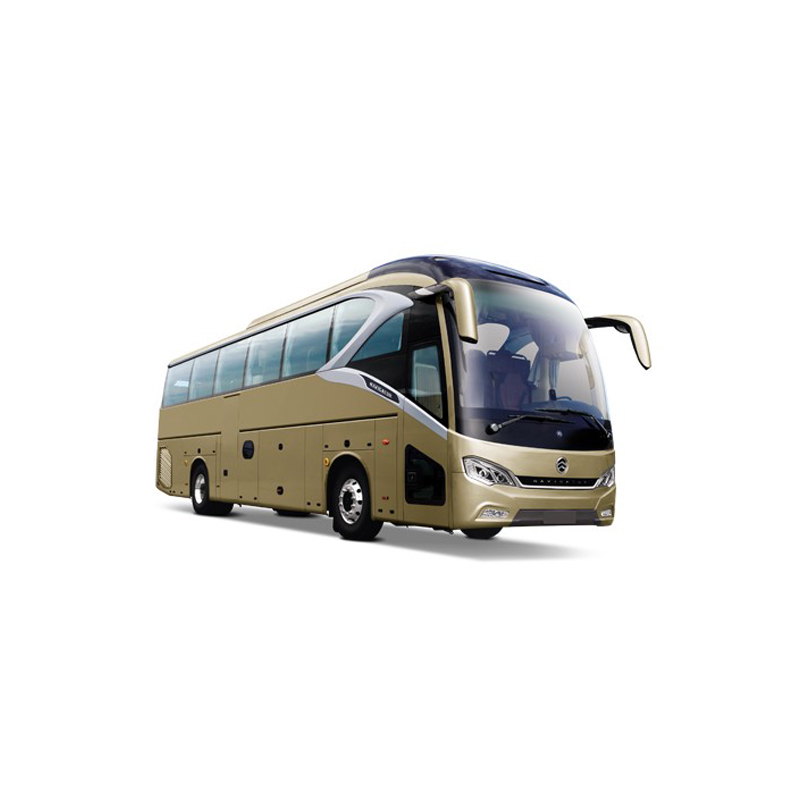

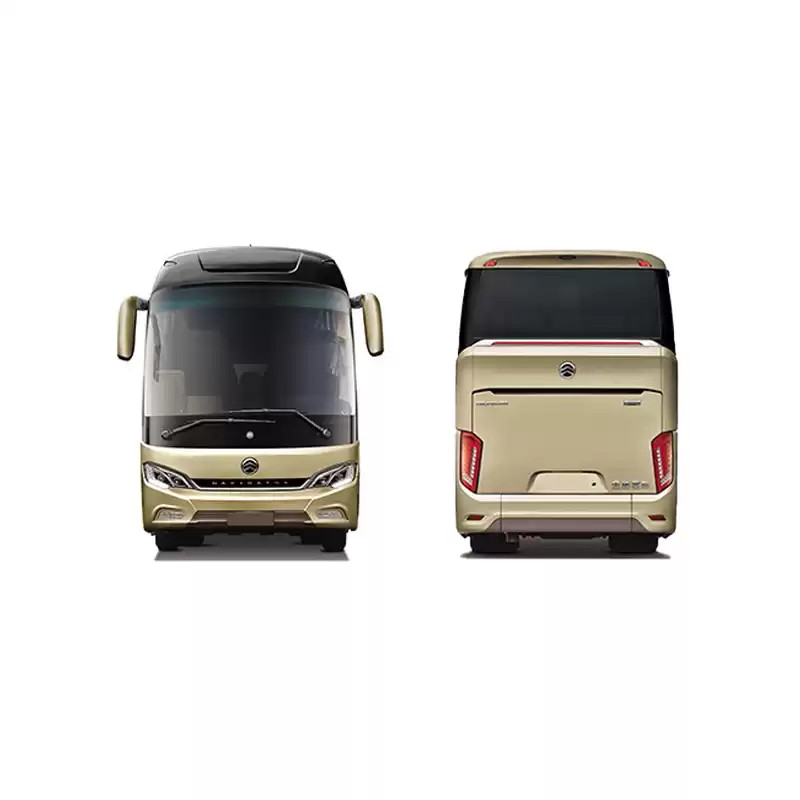

Golden Dragon Luxury Passenger Manufacturers Travel Coach Bus

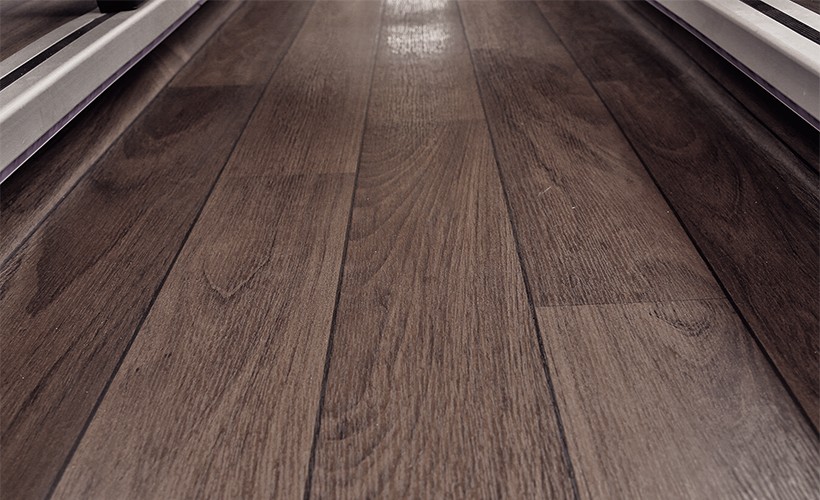

Chassis system developed in accordance with Mercedes-Benz standards; Driver's field of vision designed in accordance with stringent Israeli standards and rotatable driver seat; Smooth and exquisite body lines, wind resistance coefficient of 0.548, reaching an excellent level; Comfortable atmosphere, the whole car applies NVH quiet technology, VOD entertainment system + full car WIFI, full car automatic heating and cooling A/C and floor leather from France

Facebook Twitter Pinterest LinkedIn 分享

Description

Specification:

Dimension	Length	12M
	Width	2.55M
	Height	3.795M
	Seating Capacity	45+1+1+central W.C.
	Inside Standing Height	2020MM
	First Step Height	380MM
	Luggage Compartment Capacity with WC	9.5M3
Powertrain	Engine	Mercedes-Benz OM457 LA, 295 KW/401HP
		Torpue 2000 N.m.(1100 RPM)
		Euro V:SCR
	Transmission	Mercedes-Benz GO 240-8 NewAMT, 8 gears+ hydraulic retarder
	Front Axle	ZF RL 85 EC independent suspension
	Rear Axle	Mercedes-Benz RO 440-13(speed ratio 3.583:1)
	Braking	Disc braking
	Suspension	Air suspension ECAS
	Braking System	KNORR braking disc+ braking calipers +EBS+ ESC
	Steering	ZF 8098 steering
	Fuel Tank+ Carbamide Tank	400+40L

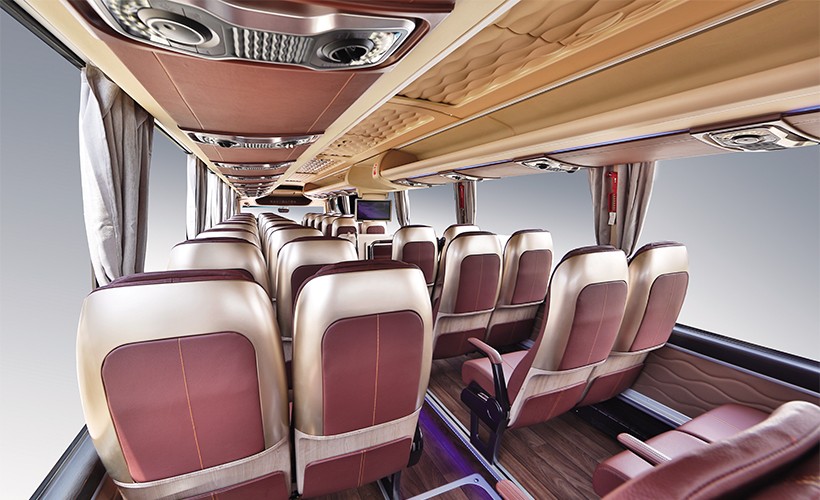

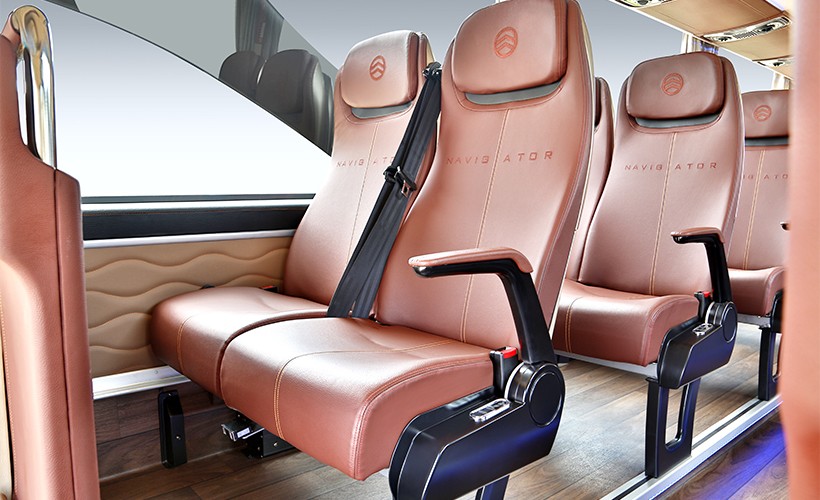

Equipment	Seat	Grammer driver 45+1
	Audio-visual	222”TFT front display
		19”TFT central display

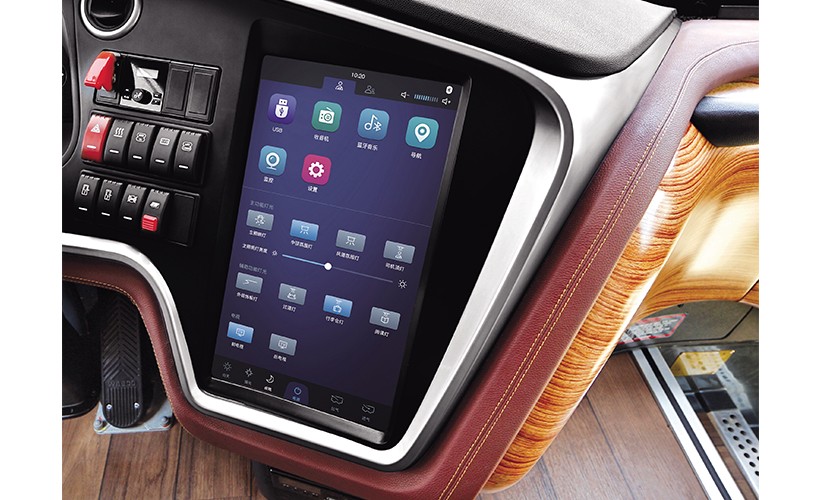

		15.6” central control touch panel (integrate entertainment audio & visual , monitor, rear-view mirror, navigation and bluetooth)
		VOD system
		driver Bluetooth power amplifier
	Safety	Lane Departure Warning System (LDWS)
		Front Collision Warning System (FCWS)
		Tire Pressure Monitor System (TPMS) and Tire Emergency Safety Device (TESD)
	Other	Central toilet
		Pneumatic out-swing doors(Front & Centre)
		Lighting
		LED Front headlamps

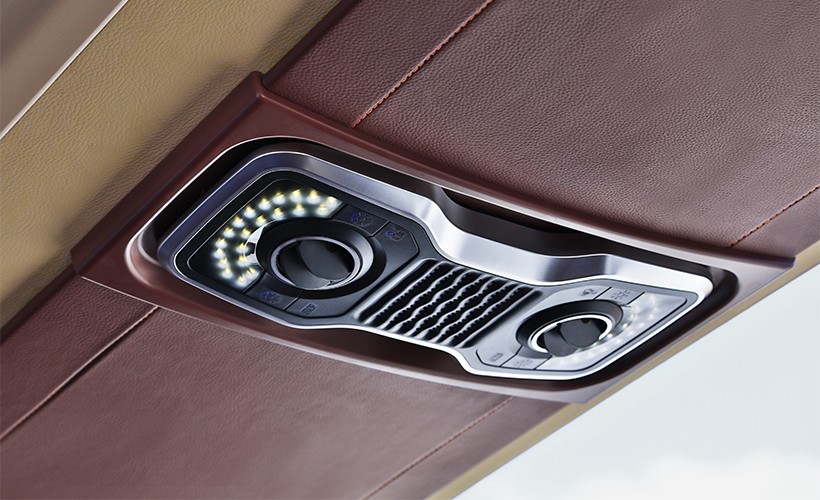

		LED lamps inside and outside
		A/C refrigerating capacity 36KW and heating capacity 43KW
		Insulating glass

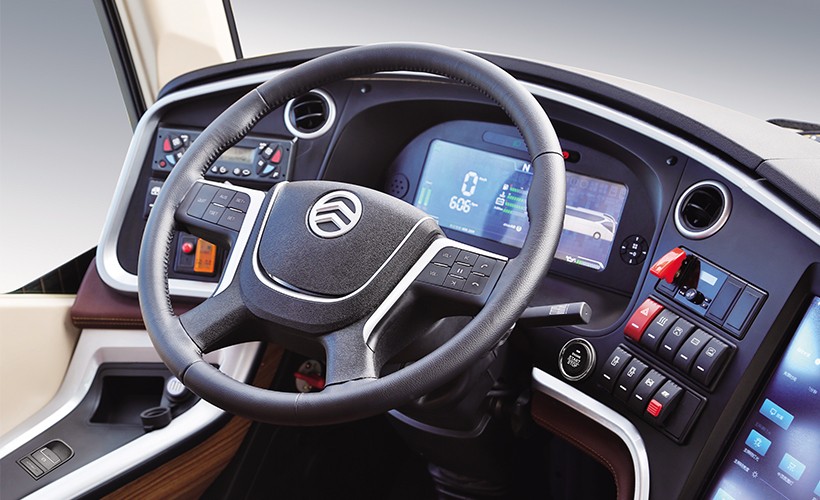

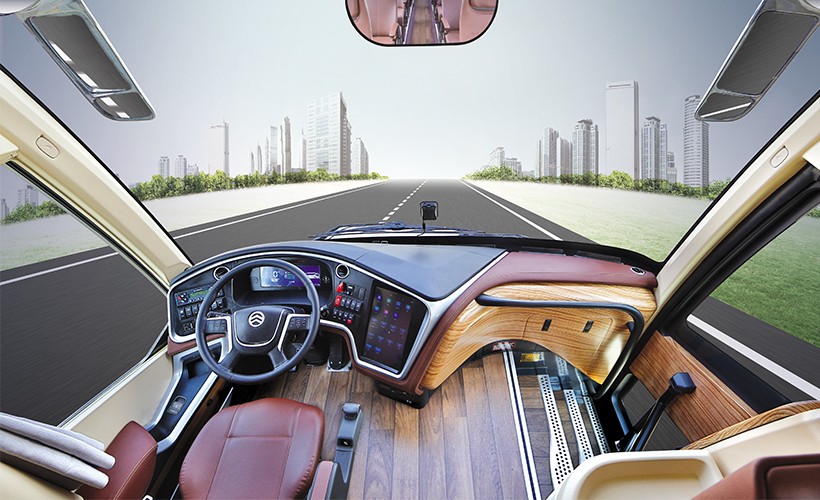

		Multi-functional dashboard (MMI system multi-functional switch+ touch panel)
		ACTIA Multiplex system
