一、Applications:
· Packaging
· Sorting
· Palletizing
· Assembling
二、Specification
· High motion accuracy, repeat accuracy ±0.1mm
· Fast movement, up to 120 beats per minute

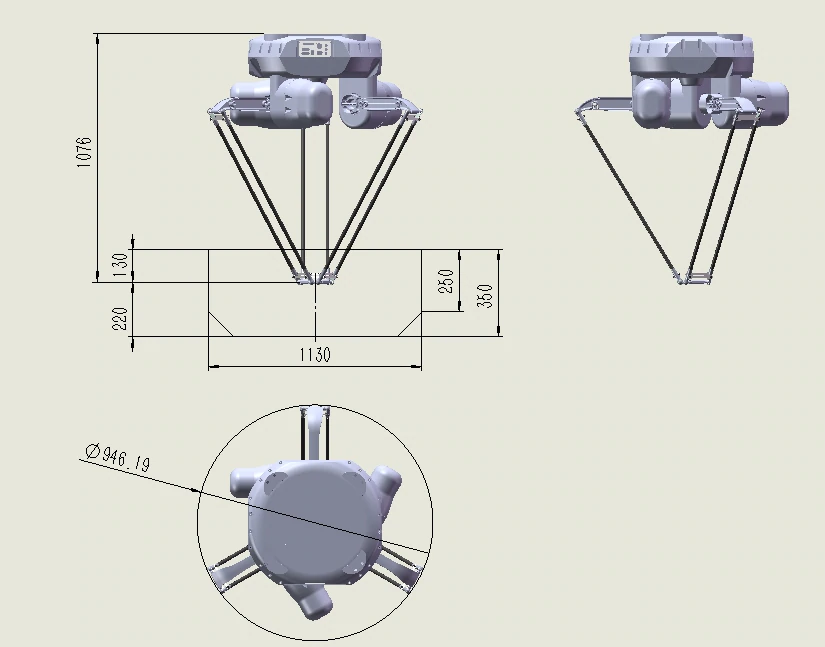

· Large range of motion, maximum picking diameter 856mm
· Strong carrying capacity, rated load 3KG, maximum load 5KG
· Can be used with visual positioning, conveyor tracking
三、Product Description

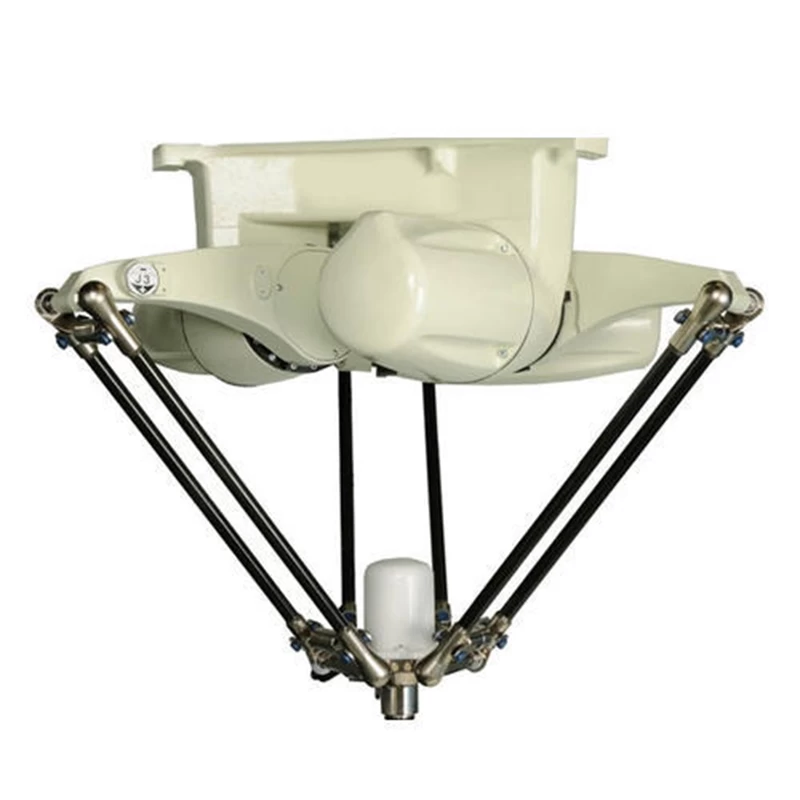

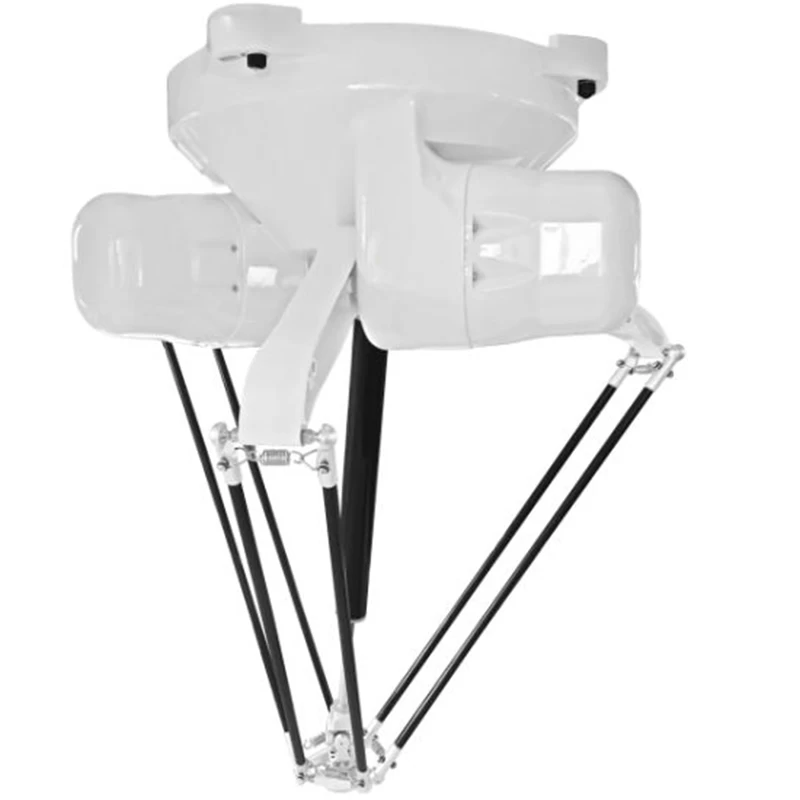

The OY-D-800 is a high-speed robot designed for fast pick and place applications. Its body material is mainly composed of carbon fiber and aluminum alloy. The target object is captured by a sensor or vision system to achieve dynamic tracking picking and placement of the target object. The equipment can be widely used in the fields of packaging, material sorting, handling and assembly.
